MAINTENANCE AN D SERVICING
7. Remove lower bolt (A) and loosen top bolt (B). Swing
C-clamp (C) and slide drive assembly to the right.
NOTE:
This w ill allow th e drive spro cke t to fall off shaft.

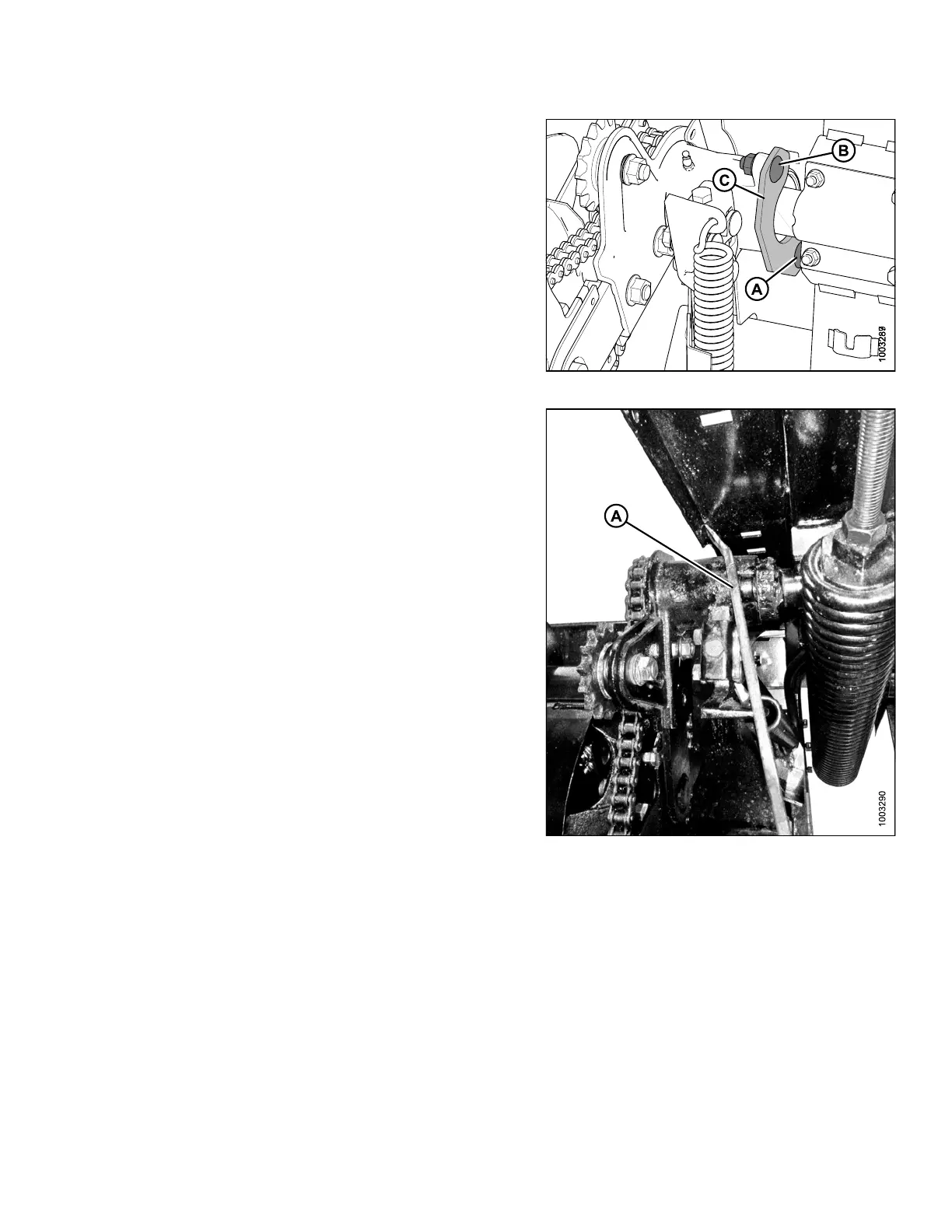

Figure 5.56: Auger Support
8. Using a pry bar (A), slide drum assembly to the right
side of the CA25.
Figur
e 5.57: Auger Drive
147695 289 Revision A
