MAINTENANCE AND SERVICING
NOTE:
Once the drum starts slid ing to the right, the drive
sprocket will fall off.

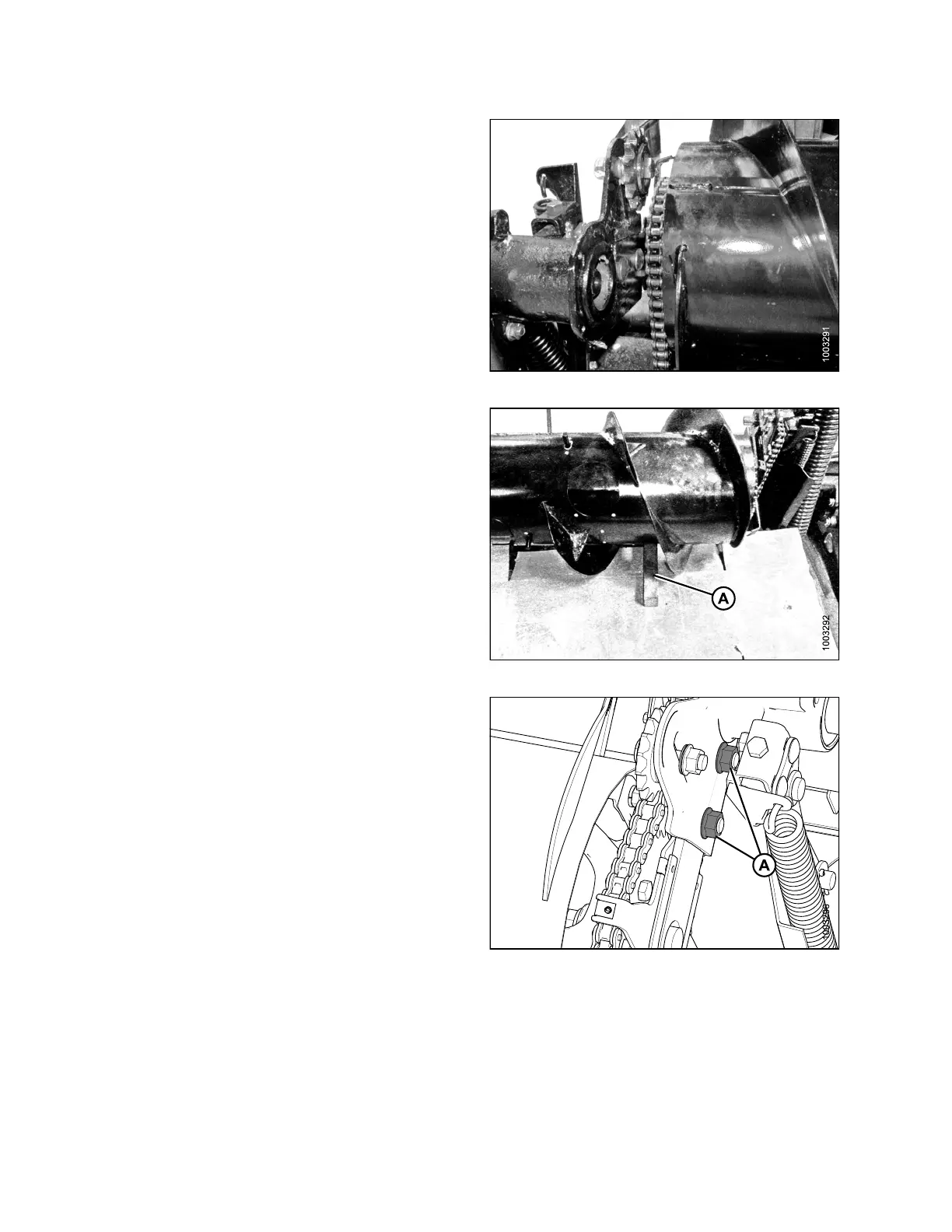

Figure 5.58: Auger Drive
9. Place a wooden block (A) under the drive end of the
auger to prevent the auger from dropping onto the feed
draper and damaging it.
Figure 5.59: Auger
10. Remove the two bolts and nuts (A), and separate the
drive housing from the auger mount bracket.
NOTE:
You may need to lift or support drum to
remove bolts.
NOTE:
Bolts on the left side housing are longer than the
bolts on the right side housing.
Figure 5.60: Auger Support
147695 290 Revision A
