MAINTENANCE AND SERVICING
24. Tighten clamp (A) with modified channel lock pliers (B)
so that finger pressure will not move clamp.
IMPORTANT:
Over-tightening clamp may result in breakage.

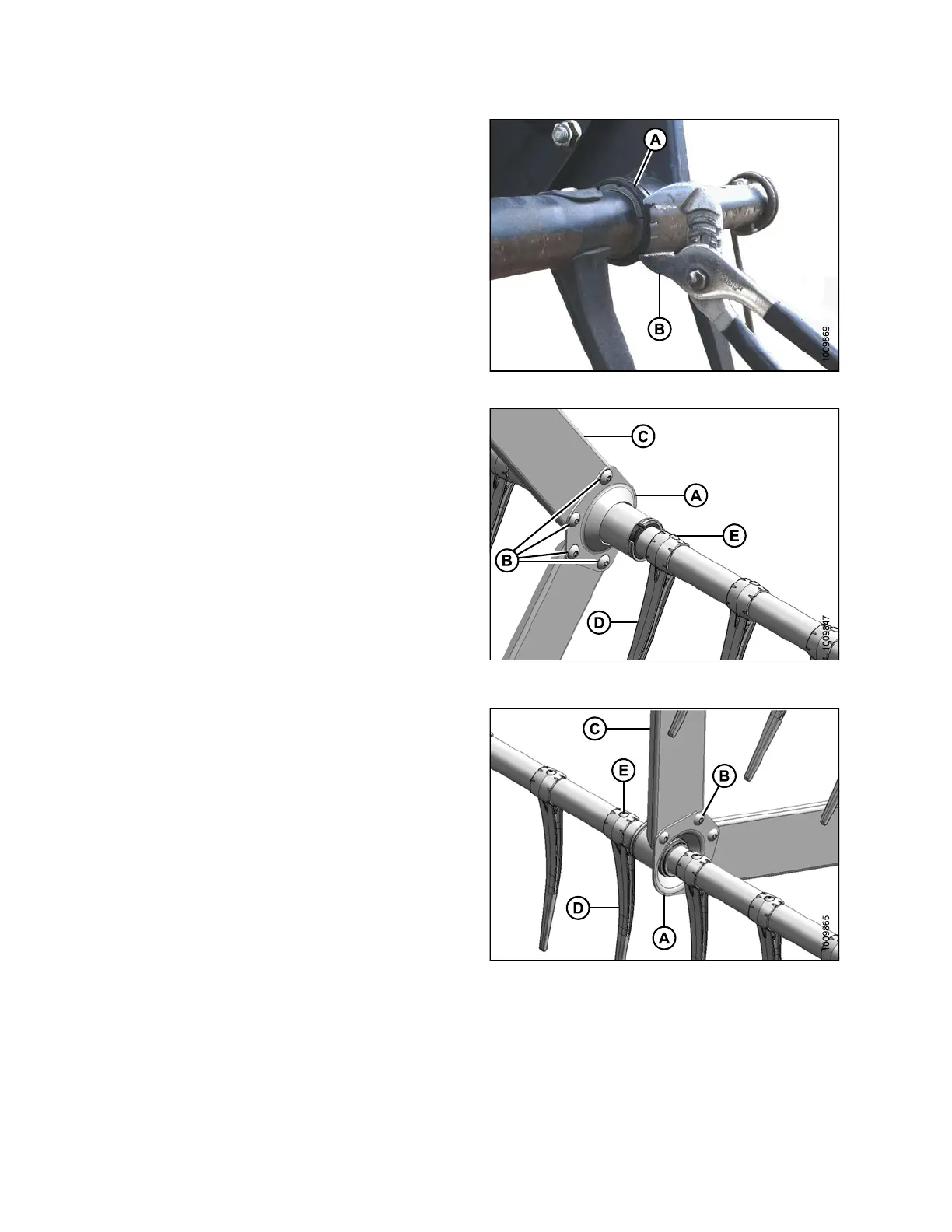

Figure 5.233: Clamp
25. Reattach channels (C) to support (A) with screws (B)
and nuts. Torque screws to 3 2 ft·lbf (43 N ·m).
26. Reinstall any fingers (D) that were removed with
screws (E). Refer to Installing Plastic Fingers, page
357.
Figure 5.234: Support
Figure 5.235: Opposite Support
147695 368 Revision A
