PRODUCT OVERVIEW
Conveyor (Draper) and Decks
Draper width
41-19/32 in. (
1057 mm)
S
Draper drive Hydraulic
S
Draper speed: CA25 Combine Adapter controlled 0–464 fpm (141 m/min.) S
Delivery opening width
73-19/32 in
. (1870 mm)
S
PR15 Pick-Up Reel
Quantity o
f tine tubes
5-, 6-, or 9-tine tubes
Center tube diameter 8 in. (203 mm) S
Factory-set
31-1/2 in. (800 mm) S
Finger t
ip radius
Adjustment range
30-3/16
– 31-1/2 in.
(766–8
00 mm)
S
Effective reel diameter (via cam profile) 65 in. (1650 mm) S
Finger
length
11 in. (290 mm) S
Finge
r spacing (staggered on alternate bats)
6in. (
150 mm)
S
Reel drive Hydraulic
S
Reel speed (adjustable from cab, varies with combine model)
0–67
rpm
S
Fra
me and Structure
Field mode
Cut Width +
15-1/8 in. (384 mm)
S
(A) Lon g dividers installed
(refer to figure 2.1:
Header Width, page 24)
106 in. (2684 mm)
-
Header
width
T
ransport position - reel
f
ore-aft fully retracted
(shortest center-link)
(B) Long dividers
remov e d
(refer to figure 2.1:
Header Width, page 24)
98 in. (2500 mm)
-

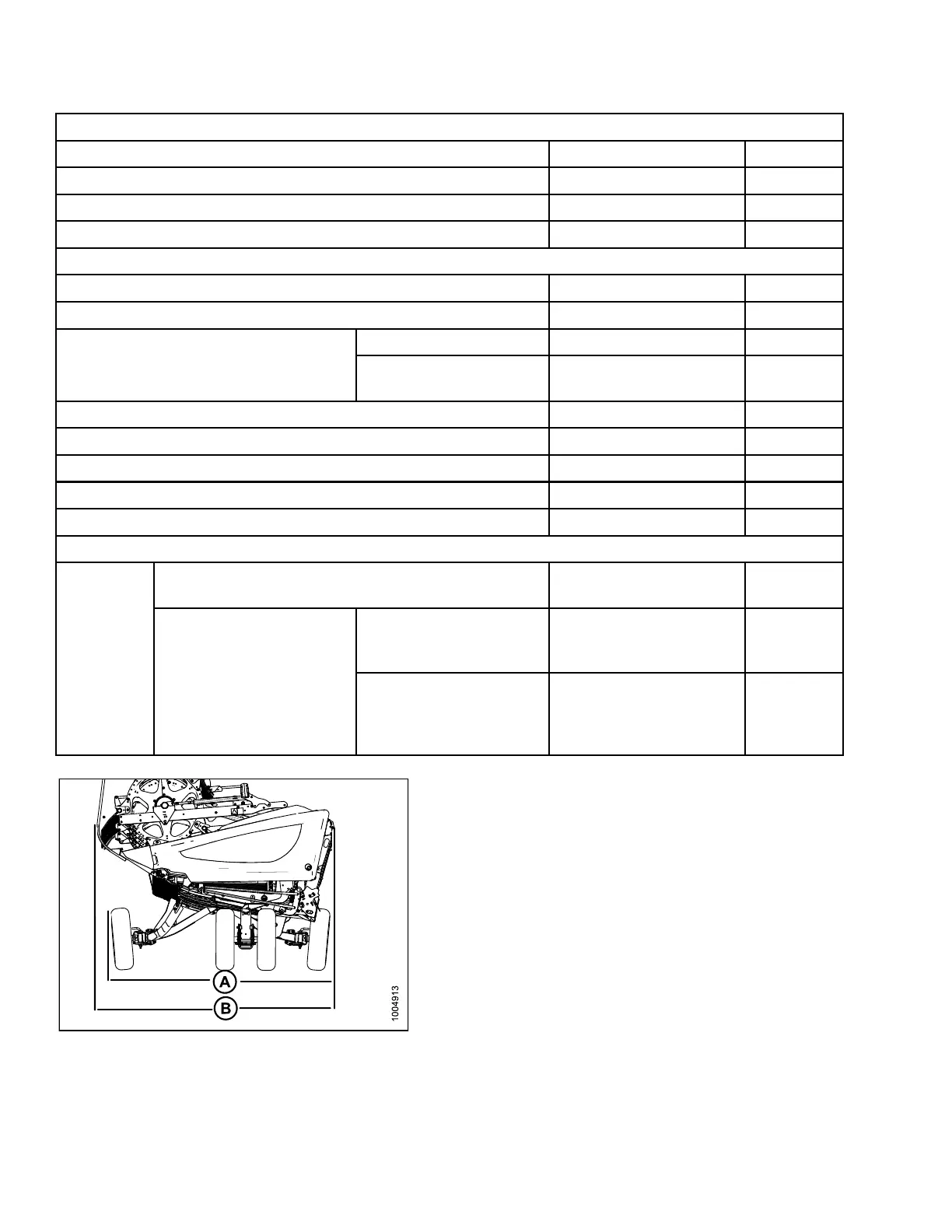

Figure 2.1: Header Width
147695
2
4
Revision A
