MAINTENANCE AN D SERVICING

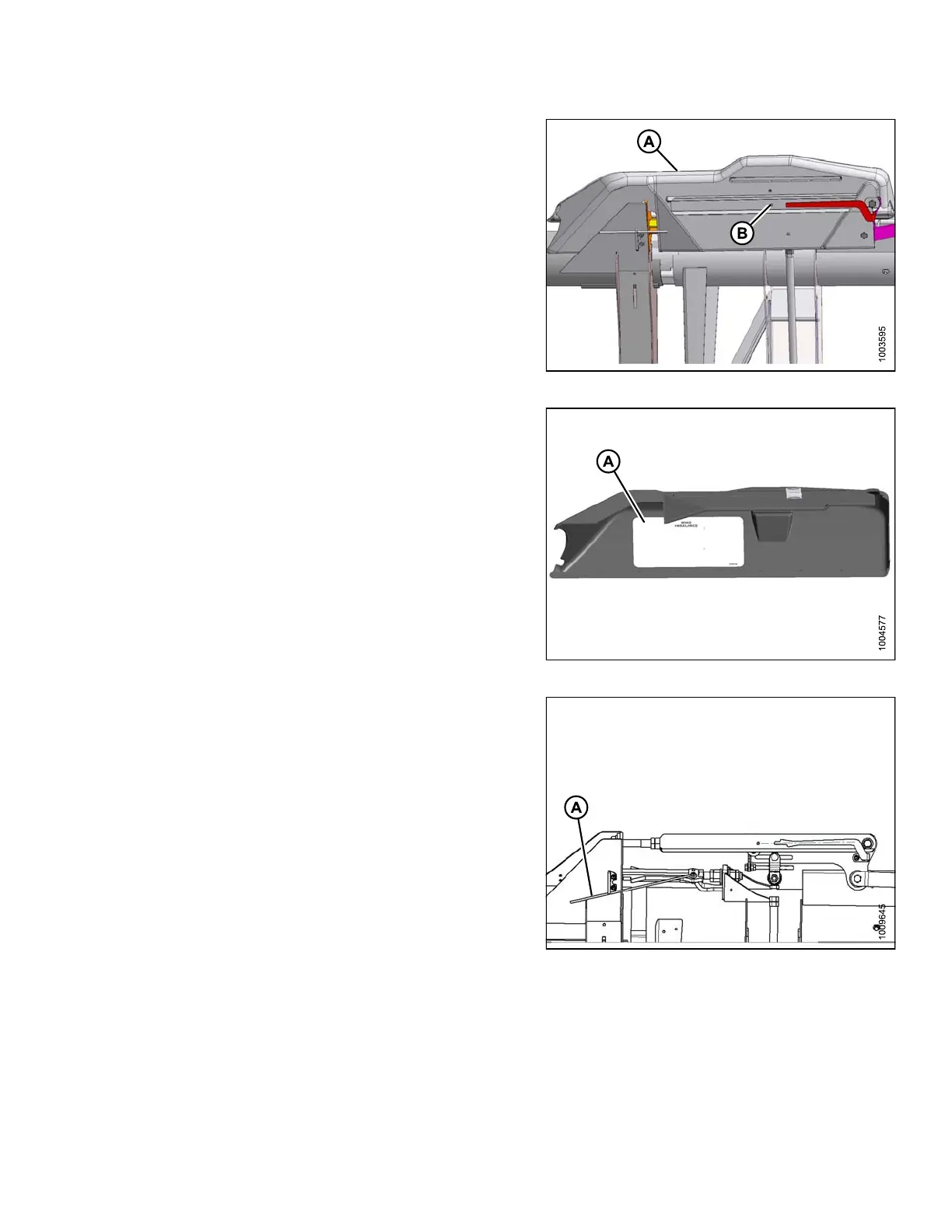

5. Remove linkage cover (A) by removing bolt (B) and
rotating cover upward until inboard end can be lifted off.
Figure 5.297: Linkage Cover
NOTE:
Refer to the decal (A) inside each linkage cover.
Figure 5.298: Linkage Cover
6. Unlock the wings by moving spring handles (A) to lower
(UNLOCK) position.
Figure 5.299: Wing Lock in U NLOCK Position
147695 397 Revision A
