MAINTENANCE AND SERVICING
7. Retrieve wrench (A) from right-hand adapter leg.

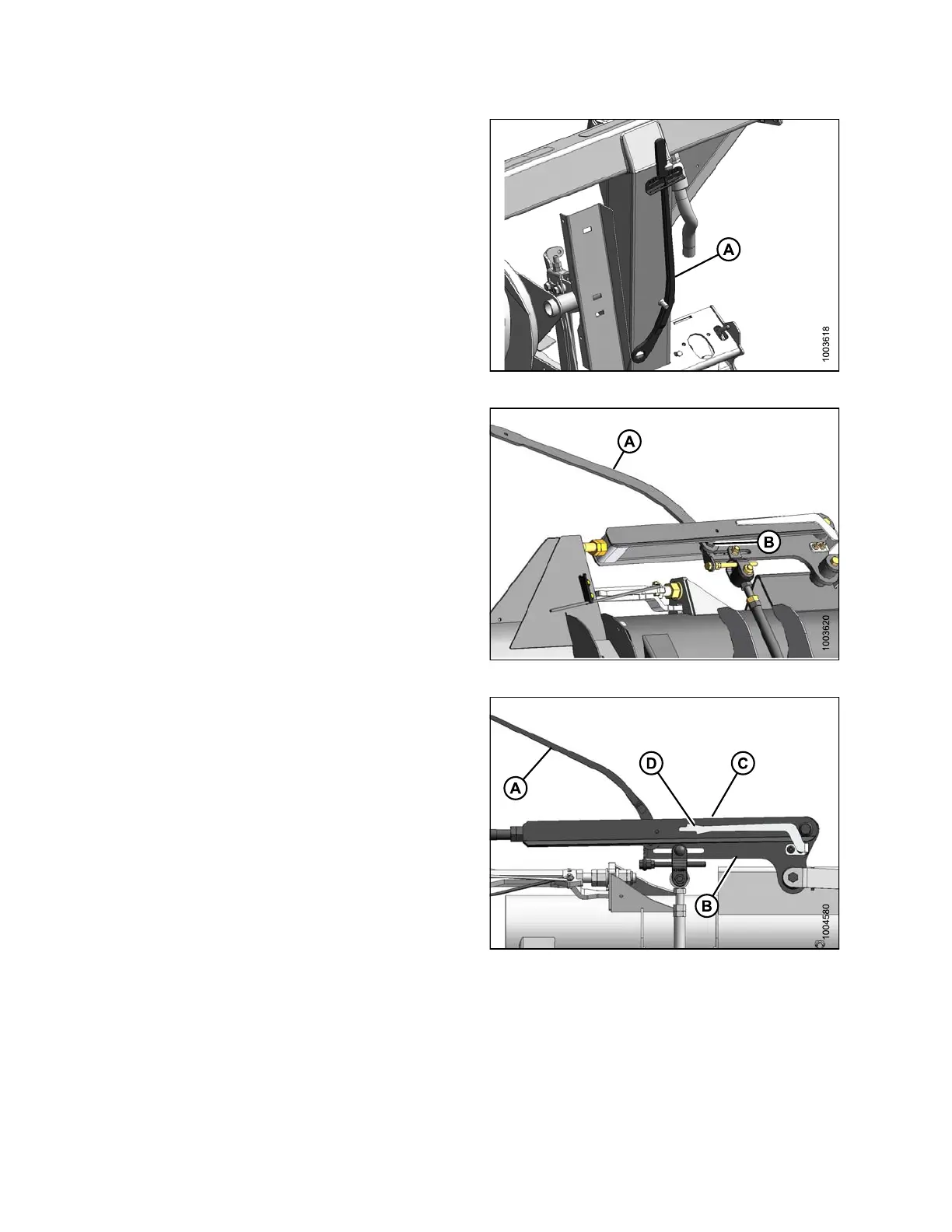

Figure 5.300: Torque Wrench
8. Place torque wrench (A) on bolt (B).
Figure 5.301: Balance Linkage
9. Check that pointe r (D) is properly position e d as follows:
a. Use wrench (A) to move b ell crank (B) so that lower
edge of bell c rank is parallel to top-link (C).
b. Check that pointer ( D) is lined up with the
top-link (C). Bend pointer if necessary.
Figure 5.302: Balance Linkage
147695 398 Revision A
