OPERATION
1. Park combine on level surface.
2. Fully lower the reel and adjust the fore-aft position to
between five and six on the position indicator decal (A)
at the right side reel arm.

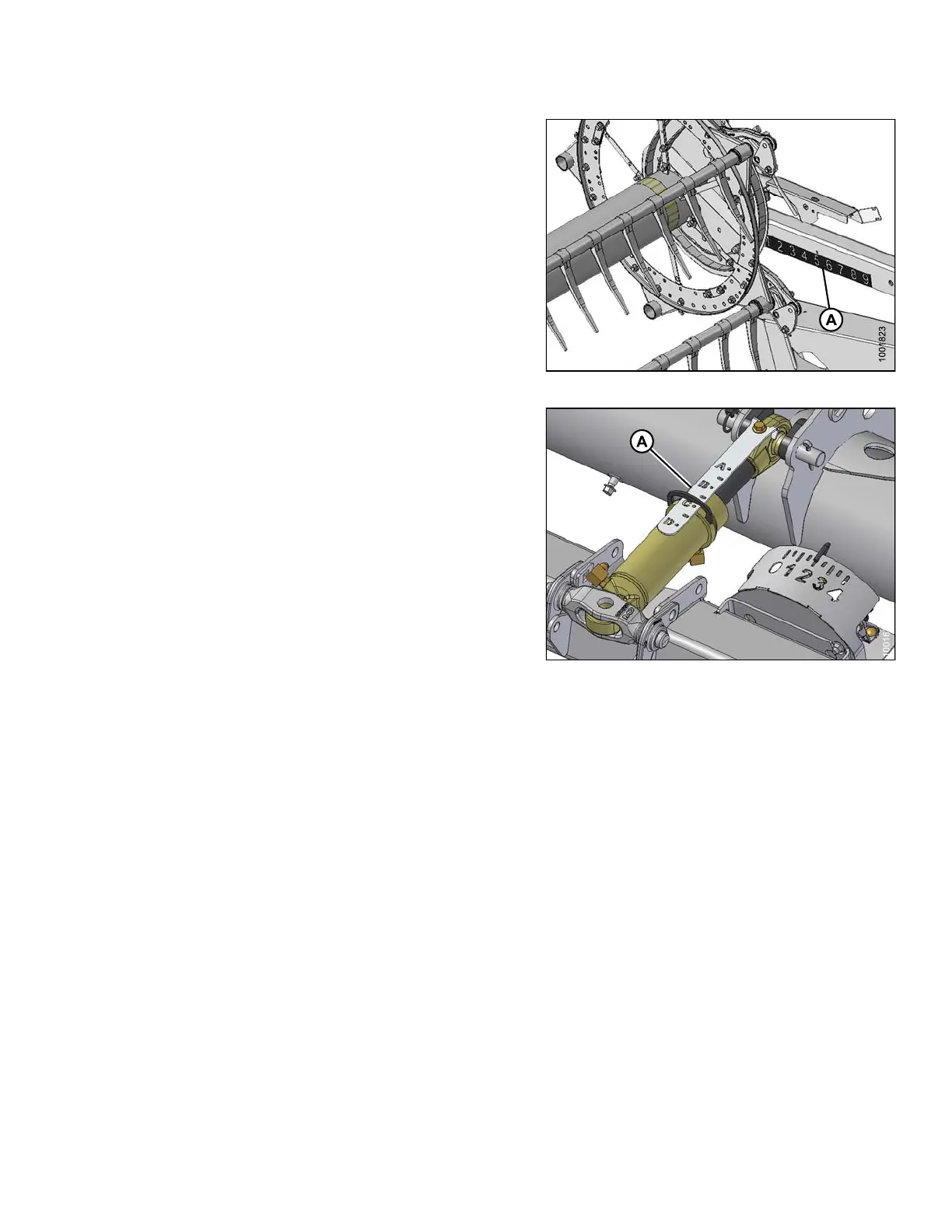

Figure 3.36: Fore-Aft Position
3. Adjust the center-link to a position between ‘B’ and ‘C’
on the indicator (A).
4. Position cutterbar 8–12 in. (200–300 mm) off
the ground.
5. Stop engine and remove key from ignition.
Figure 3.37: Center-Link between ‘B’ and ‘C’
IMPORTAN T:
Do NOT use the adapter float springs to level
the header.
6. Check t
hat adapter is level. If the adapter is NOT
level,
perform the following checks prior to adjusting
the lev
elling linkages:
a. Check
combine tire pressures.
b. Check
that the combine feeder house is
level
. Refer to com bine operator’s manual
for in
structions.
c. Chec
k that top of adapter is level with
comb
ine axle.
147695 59 Revision A
