OPERATION

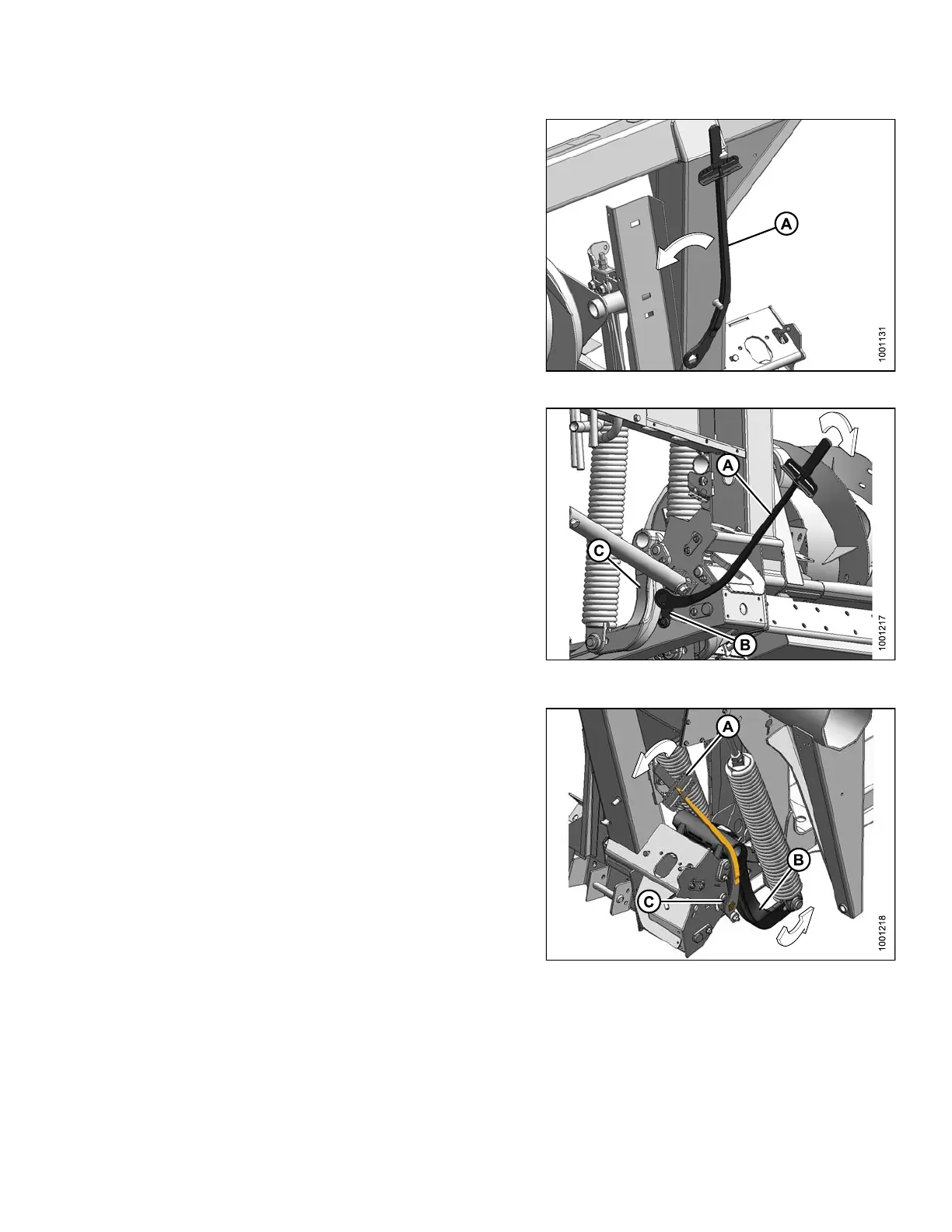

10. Remove supplied torque wrench (A) from storage
position at right-hand side of adapter frame. Pull
slightly in direction shown to disengage wrench
from hook.
Figure 3.41: Torque Wrench
11. Place supplied torque wrench (A) onto float lock
at (B). Note position of wrench for checking right- or
left-hand side.
12. Push down on wrench to rotate bell crank (C) forward.
Figure 3.42: Left Side
Figure 3.43: Right Side
147695 61 Revision A
