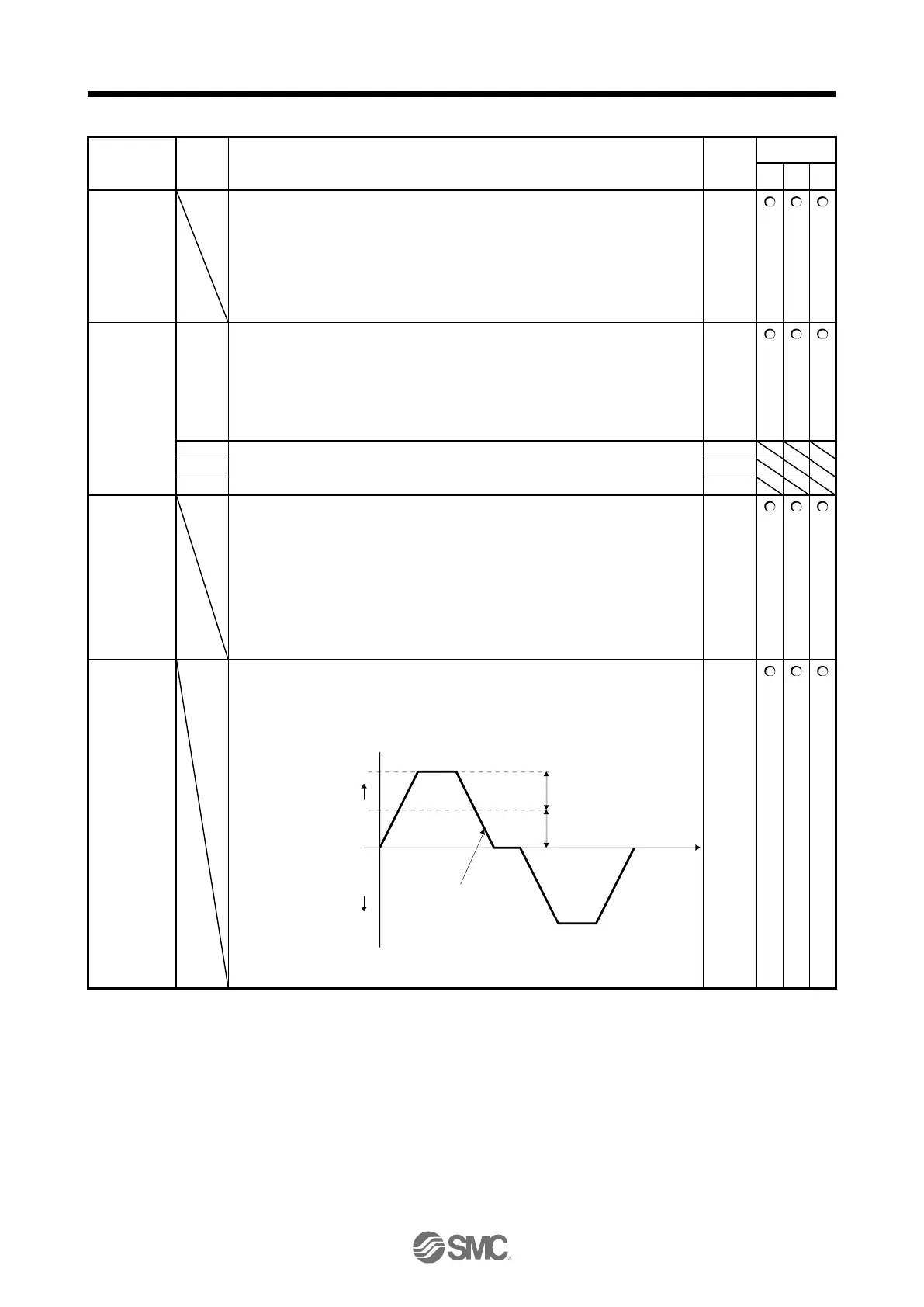

5. PARAMETERS
5 - 73
No./
symbol/name
Setting
digit
Function
Initial
value
[unit]
Network
ECT
EIP
PNT
PF23
OSCL1
Vibration
tough drive -
Oscillation
detection
level
Set a filter readjustment sensitivity of [Pr. PB13 Machine resonance suppression
filter 1] and [Pr. PB15 Machine resonance suppression filter 2] while the vibration
tough drive is enabled.
Note that setting "0" will be 50%.
Example: When you set "50" to the parameter, the filter will be readjusted at the
time of 50% or more oscillation level.
Setting range: 0 to 100
50
[%]
PF24
*OSCL2
Vibration
tough drive
function
selection
_ _ _ x
Oscillation detection alarm selection
Select whether to generate an alarm or a warning when an oscillation continues at a
filter readjustment sensitivity level of [Pr. PF23].
The setting is always enabled regardless of the vibration tough drive in [Pr. PA20].
0: [AL. 54 Oscillation detection] will occur at oscillation detection.
1: [AL. F3.1 Oscillation detection warning] will occur at oscillation detection.
2: Oscillation detection function disabled
0h
_ _ x _
For manufacturer setting
0h
_ x _ _
0h
x _ _ _
0h
PF25
CVAT
SEMI-F47
function -
Instantaneou
s power
failure
detection
time
Set the time of the [AL. 10.1 Voltage drop in the control circuit power] occurrence.
To comply with SEMI-F47 standard, it is unnecessary to change the initial value
(200 ms).
When the instantaneous power failure time exceeds 200 ms, and the instantaneous
power failure voltage is less than 70% of the rated input voltage, the power may be
normally turned off even if a value larger than 200 ms is set in the parameter.
To disable the parameter setting value, select "Disabled (_ 0 _ _)" of "SEMI-F47
function selection" in [Pr. PA20].
Setting range: 30 to 500
200
[ms]
PF31
FRIC
Machine
diagnosis
function -
Friction
judgment
speed
Set a servo motor speed that divides a friction estimation area into high and low
during the friction estimation process of the machine diagnosis.
However, setting "0" will be the value half of the rated speed.
When your operation pattern is under rated speed, we recommend that you set half
value to the maximum speed with this.
Forward rotation
direction
(Positive direction)
0 r/min
Operation pattern
[Pr. PF31] setting
Maximum speed in operation
Servo motor
speed
Reverse rotation
direction
(Negative direction)
(0 mm/s)
Setting range: 0 to instantaneous permissible speed
0
[r/min]/
[mm/s]
