For equipment in which overshoot during one-touch tuning is in the permissible
level of the in-position range, changing the value of [Pr. PA25 One-touch tuning -
Overshoot permissible level] will shorten the settling time and improve the
response.

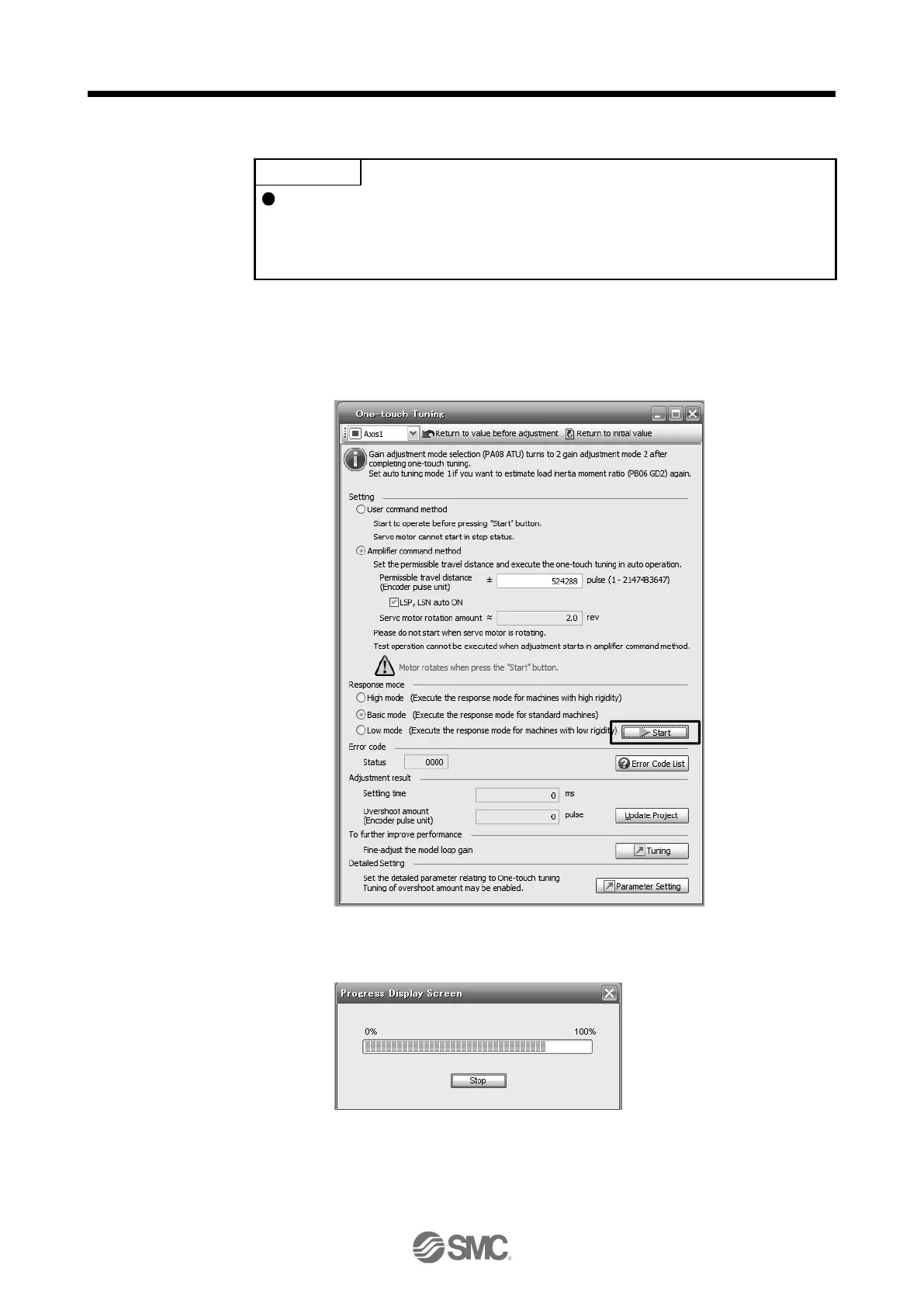

After the response mode is selected in (1) in this section, clicking "Start" will start one-touch tuning. If
"Start" is clicked while the servo motor stops, "C002" or "C004" will be displayed at status in error
code. (Refer to (4) in this section for error codes.)
During processing of one-touch tuning, the progress will be displayed as follows. Tuning will be
completed at 100%.
Completing the one-touch tuning will start writing tuning parameters to the driver, and the following
window will be displayed. Select whether or not to reflect the tuning result in the project.
