7. SPECIAL ADJUSTMENT FUNCTIONS
7 - 3

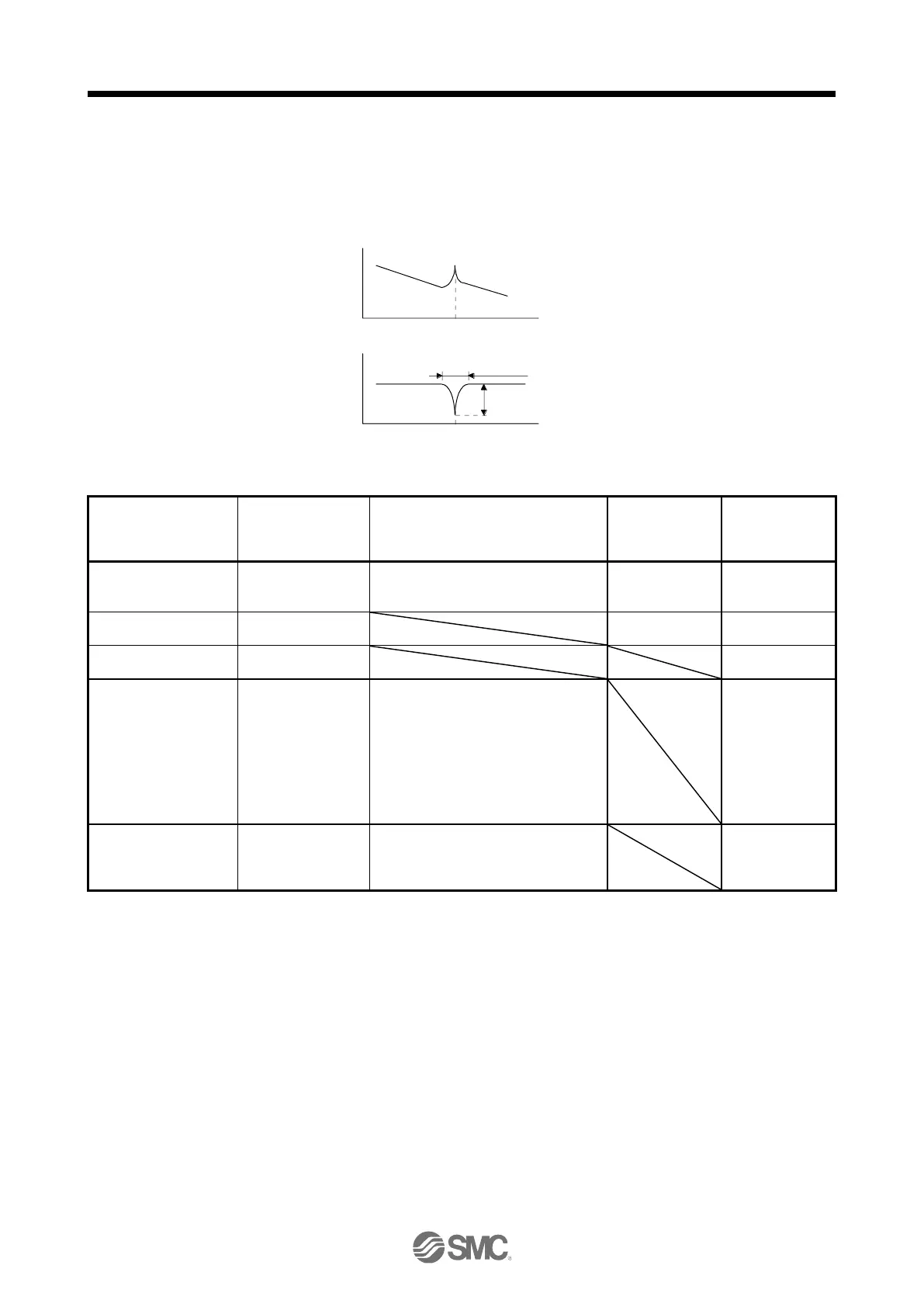

(1) Function
The machine resonance suppression filter is a filter function (notch filter) which decreases the gain
of the specific frequency to suppress the resonance of the mechanical system. You can set the gain
decreasing frequency (notch frequency), gain decreasing depth and width.
Response of
mechanical system
Notch
characteristics
Machine resonance point
Notch frequency
Frequency
Frequency
Notch width
Notch depth
You can set five machine resonance suppression filters at most.
Parameter that is
reset with vibration
tough drive
function
Parameter
automatically
adjusted with one-
touch tuning
Machine resonance
suppression filter 1
The filter can be set automatically with
"Filter tuning mode selection" in [Pr.
PB01].
Machine resonance
suppression filter 2
Machine resonance
suppression filter 3
Machine resonance
suppression filter 4
Enabling the machine resonance
suppression filter 4 disables the shaft
resonance suppression filter.
Using the shaft resonance suppression
filter is recommended because it is
adjusted properly depending on the
usage situation.
The shaft resonance suppression filter is
enabled for the initial setting.
Machine resonance
suppression filter 5
Enabling the robust filter disables the
machine resonance suppression filter 5.
The robust filter is disabled for the initial
setting.
To Next Page
