7. SPECIAL ADJUSTMENT FUNCTIONS
7 - 22
(b) Return time constant disabled was selected.
The gain switching time constant is enabled. The time constant is disabled at gain return.

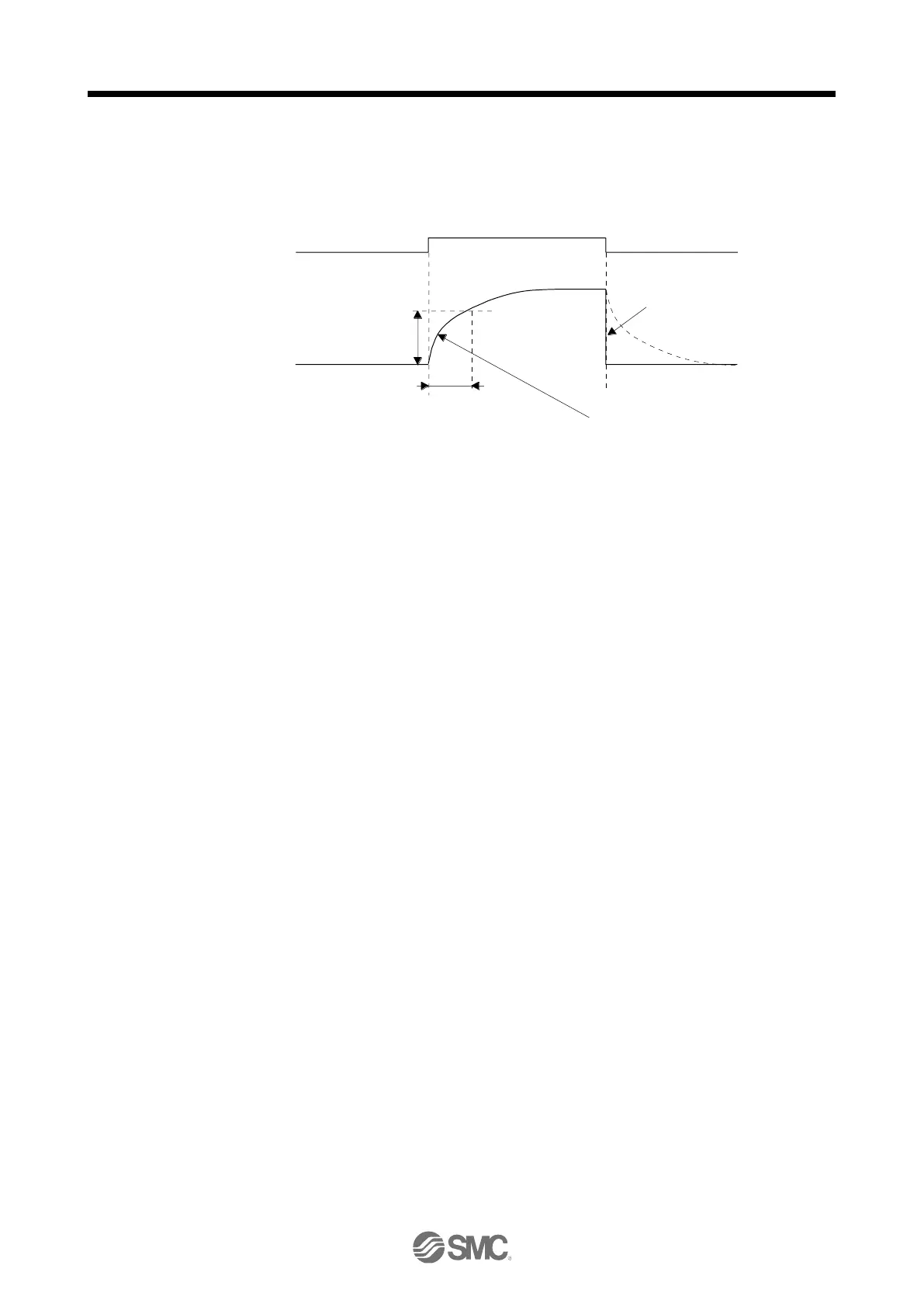

The following example shows for [Pr. PB26 (CDP)] = 0201, [Pr. PB27 (CDL)] = 0, and [Pr. PB28
(CDT)] = 100 [ms].
ONCDP (Gain switching)
After-sw itching gain
Before-switching gain
Switching at [Pr. PB28 (CDT)] = 100 [ms] only when gain switching on (when switching)
CDT = 100 ms
Return time constant disabled
Sw itching at 0 ms
OFF OFF
63.4%
Gain sw itching
