7. SPECIAL ADJUSTMENT FUNCTIONS

7 - 28

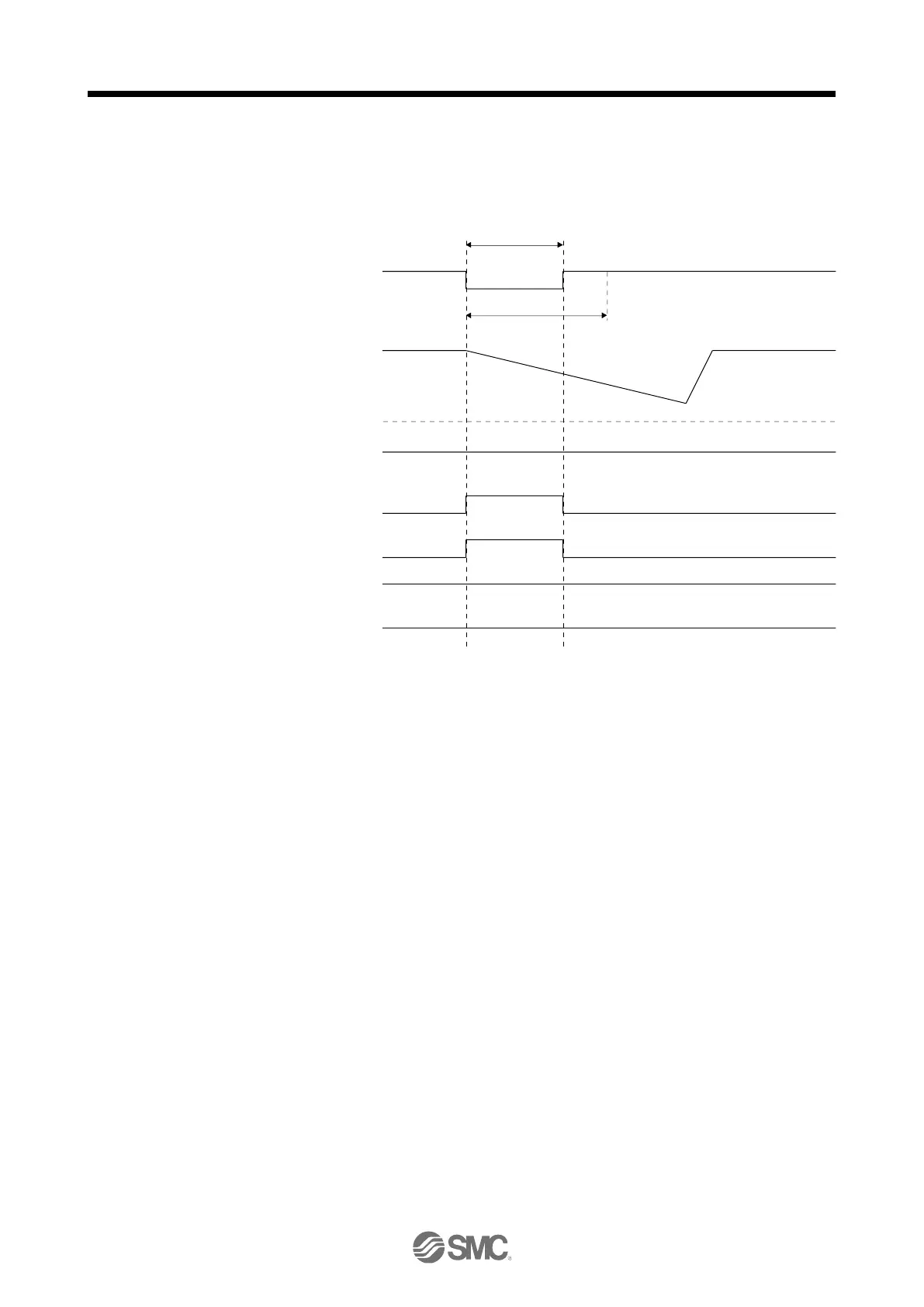

(b) When the bus voltage does not decrease lower than 158 V DC within the instantaneous power failure

time of the control circuit power supply

The operation continues without alarming.

Control circuit

pow er supply

Bus voltage

Undervoltage level

(Note)

ALM

(Malfunction)

MTTR

(During tough drive)

MBR

(Electromagnetic

brake interlock)

Base circuit

WNG

(Warning)

[Pr. PF25]

Instantaneous pow er failure time of the

control circuit pow er supply

OFF

ON (energization)

OFF (power failure)

Note.

Refer to table 7.1 for the undervoltage level.
