b） I/O Connector (For LECSN□-T□)
*LE-CSNS is 10120-3000PE (Connector)/ 10320-52F0-008（ Shell kit） of Sumitomo 3M
Limited or equivalent goods.
Applicable wire size: AWG24~30
c）Regenerative options
*MR-RB□ of Mitsubishi Electric
Corporation.
d）Setup software (MR Configurator2
TM
)
* SW1DNc-MRC2-J of Mitsubishi Electric Corporation.
Refer to the website of Mitsubishi Electric Corporation for the information of the operating
environment and upgrading. Order USB cable separately.
*LECSB2-T□ cannot be used by LEC-MR-SETUP221□.
e）USB cable(3m)
* MR-J3USBCBL3M of Mitsubishi Electric Corporation.
f）Battery
* MR-BAT6V1SET-A of Mitsubishi Electric Corporation.
Battery for replacement.
Absolute position data is maintained by installing the battery to the driver.
ＬＥＣ-MR-BAT6V1SET-A
ＬＥＣ-MR-Ｊ3ＵＳＢ
ＬＥＣ-MR-SETUP221
SET
--

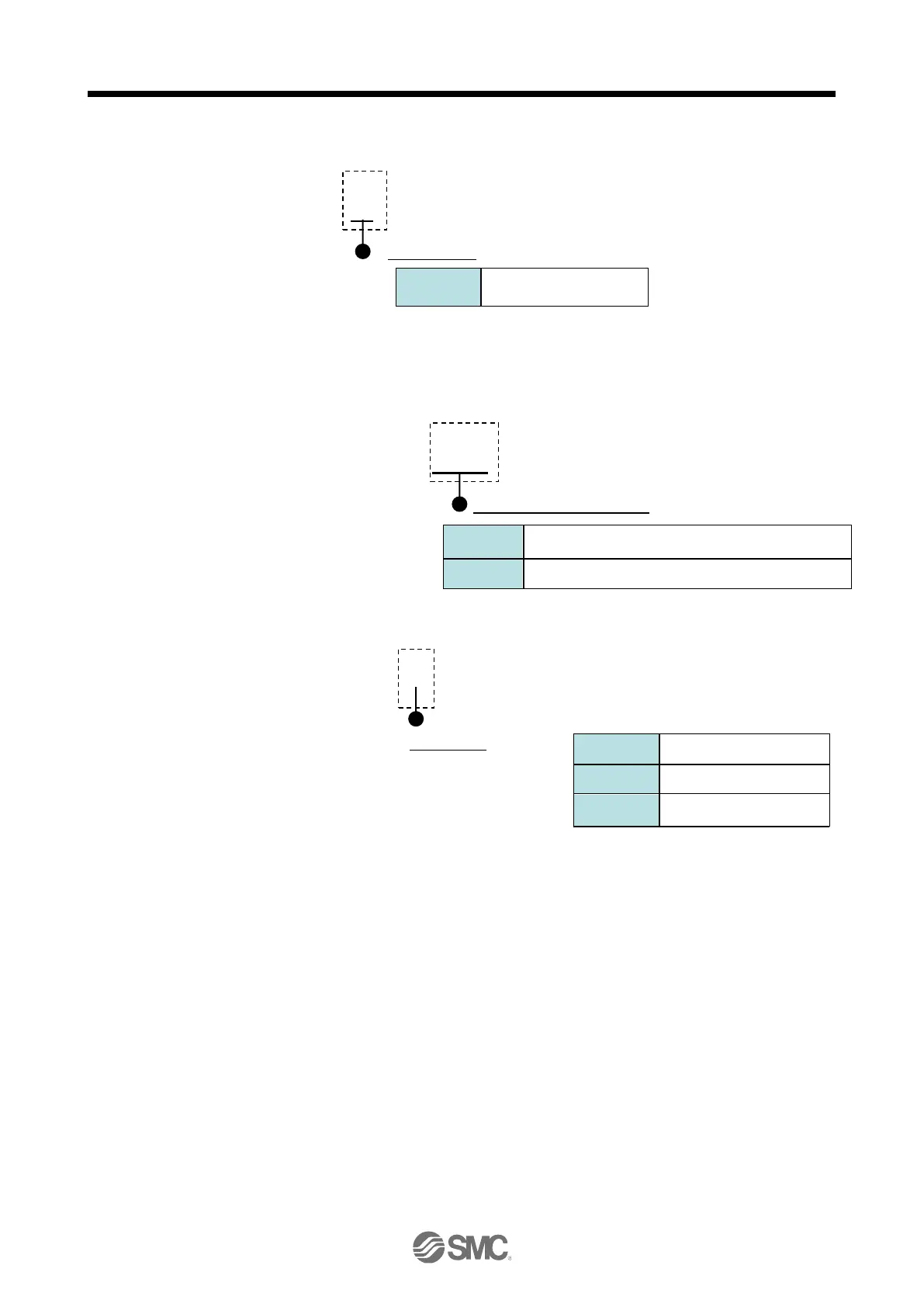

ＬＥC-MR-RB-032
Regenerative option Type
Permissible regenerative power 100W
許容回生電力100W
12
Permissible regenerative power 30W
032
ＬＥＣ-MRC2□
English version
E
Japanese version
version
NIL
Language
C
Chinese version
ＬＥ-CＳＮS
Driver Type
LECSN□-T□
S
