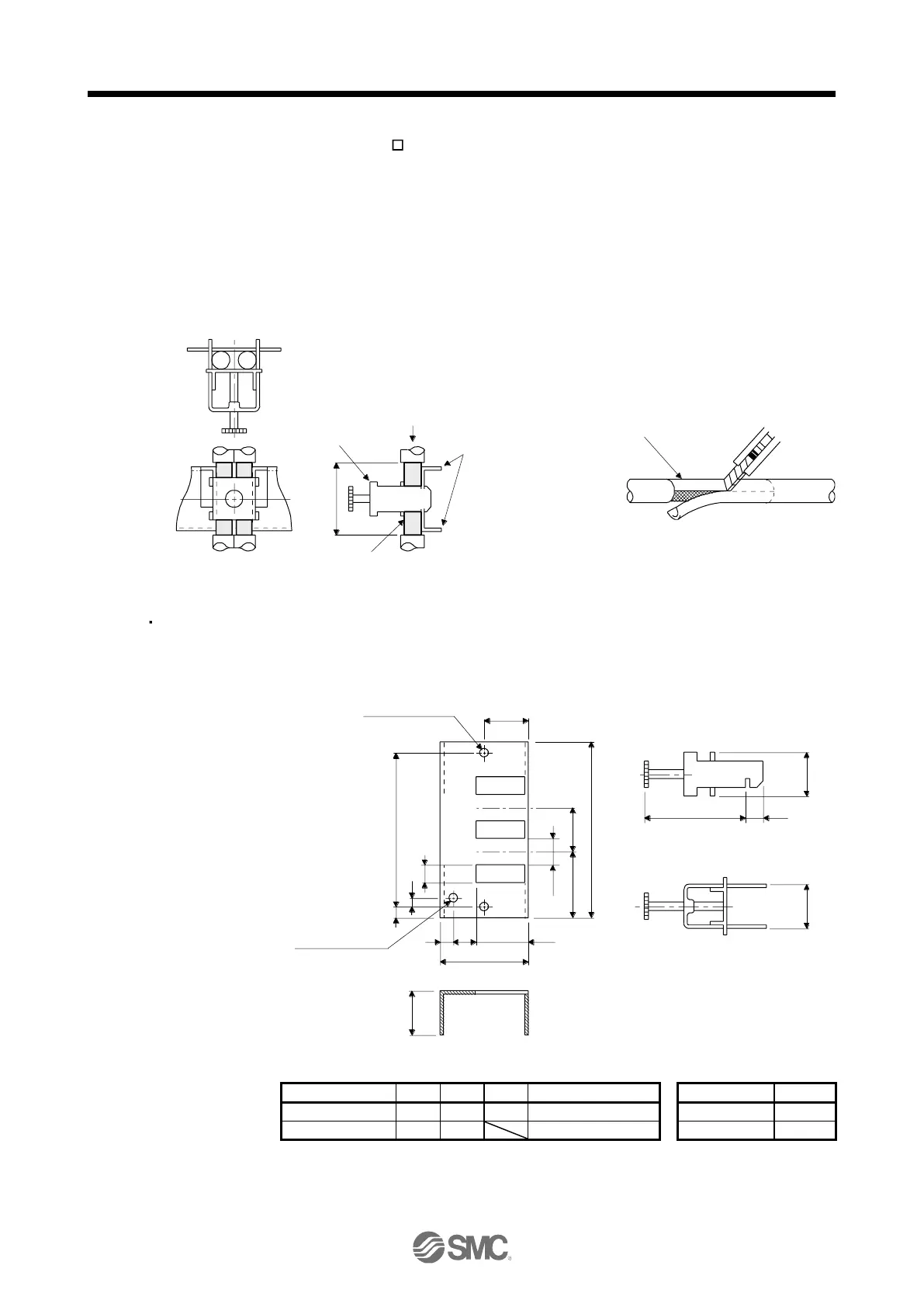

(c) Cable clamp fitting (AERSBAN - SET (Mitsubishi Electric Corporation))
Generally, the grounding of the shielded wire may only be connected to the connector's SD
terminal. However, the effect can be increased by directly connecting the cable to an grounding
plate as shown below.
Install the grounding plate near the driver for the encoder cable. Peel part of the cable sheath to
expose the external conductor, and press that part against the grounding plate with the cable
clamp. If the cable is thin, clamp several cables in a bunch.
The cable clamp comes as a set with the grounding plate.
[Unit: mm]
Cable clamp
(A, B)
Cable
Earth plate
External conductor
Clamp section diagram
40
Strip the cable sheath of
the clamped area.
cutter
cable
Dimensions
[Unit: mm]
Earth plate
(Note) M4 screw
11
3
6
C
A
6 22
17.5
35
35
7
24
0 -0.2
B ± 0.3
2-φ5 hole
installation hole
[Unit: mm]
Clamp section diagram
L or less 10
30
24
+ 0.3 0
Note.
Screw hole for grounding. Connect it to the grounding plate of the cabinet.
Model
A
B
C
Accessory fittings
Clamp fitting
L
AERSBAN-DSET
100
86
30
Clamp A: 2pcs.
A
70
AERSBAN-ESET
70
56
Clamp B: 1pc.
B
45
