13. USING STO FUNCTION

13 - 9

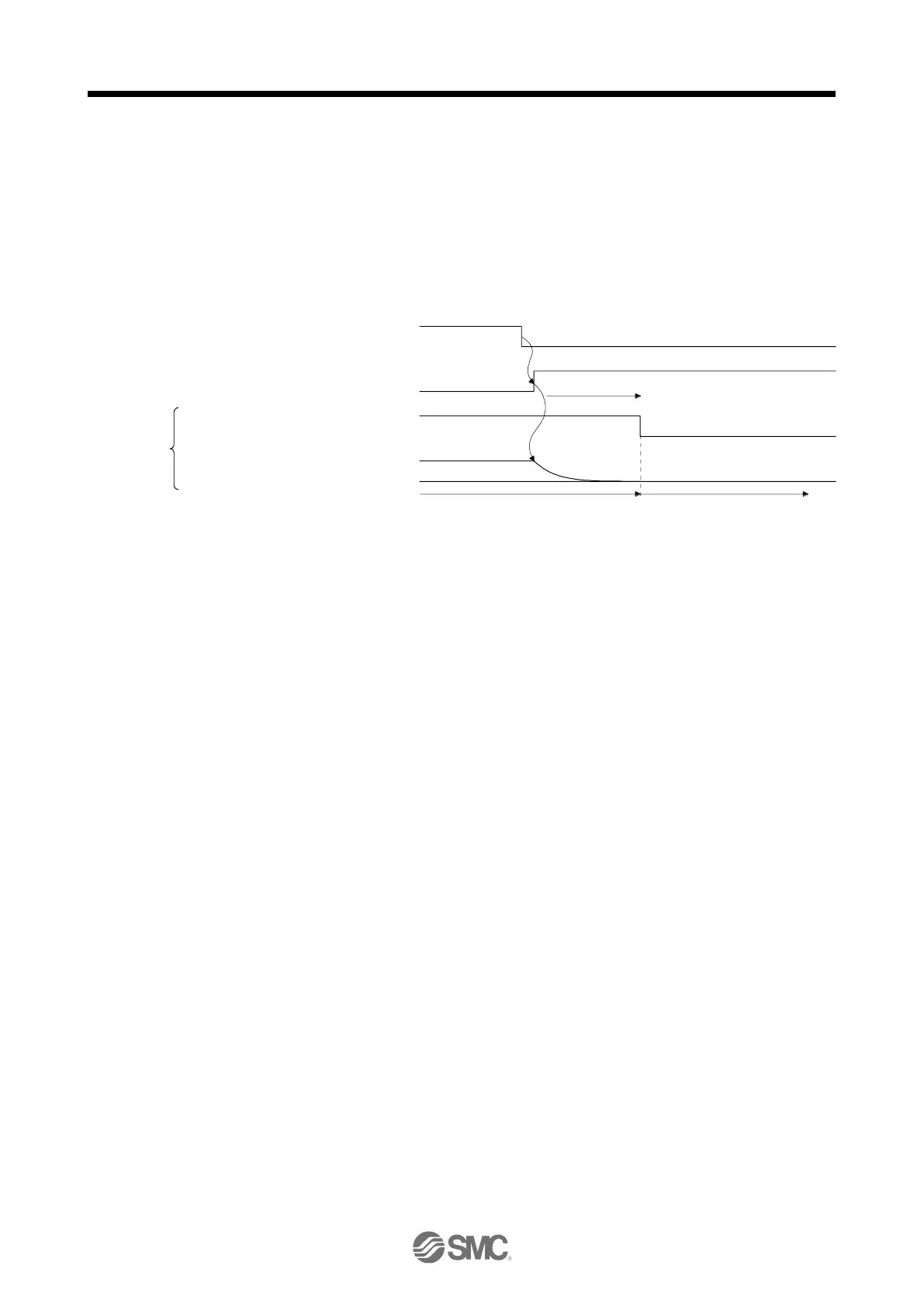

(2) Basic operation example

STOA switch input is output to SDO1A and SDO2A of MR-J3-D05 (Mitsubishi Electric Corporation)

and input to driver.

STOB switch input is output to SDO1B and SDO2B of MR-J3-D05 (Mitsubishi Electric Corporation)

and input to the driver.

A-axis shutdow n 1 and 2

B-axis shutdow n 1 and 2

STO1, STO2

Stop

Operation

Energizing (close)

Shut-off (open)

EM2 input

STO shut-off

Normal (close)

Shut-off (open)

0 r/min

Servo motor drivable

Servo motor speed

Servo amplifier

Shut off delay

STO status

Note 1.

Set the delay time of STO output with SW1 and SW2. These switches for MR-J3-D05

of Mitsubishi Electric Corporation

are located where

dented from the front panel.

Note 2.

To release the STO state (base circuit shut-off), turn RESA and RESB on and turn them off.
