SMC Networks LECSN-T Series - Page 427

16 - 22

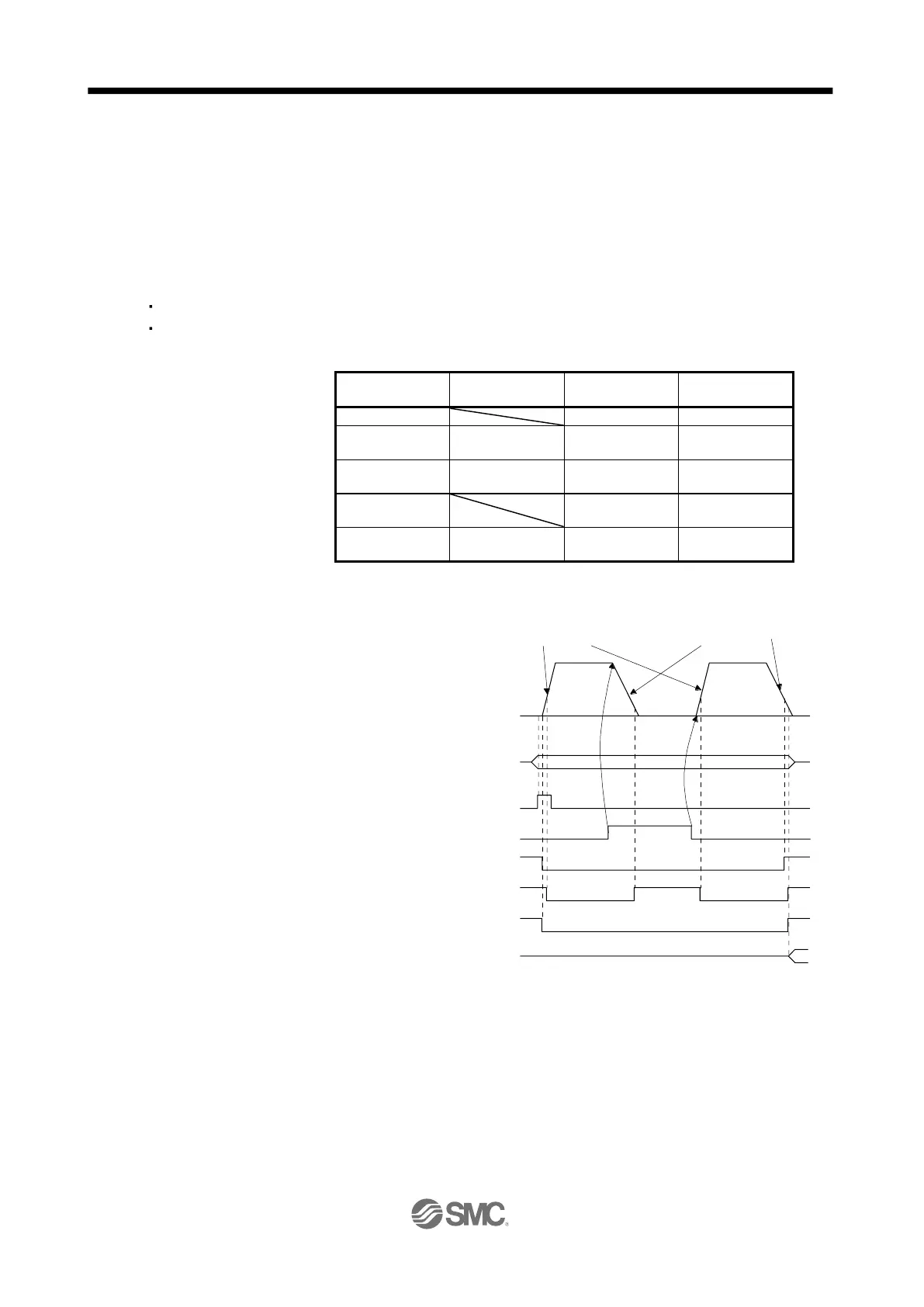

16. HOW TO USE THE POINT TABLE
(e) Temporary stop/restart
When "Controlword bit 8 (HALT)" is switched on during automatic operation, the servo motor
decelerates with the deceleration time constant of the point table being executed, and then stops
temporarily. When "Controlword bit 8 (HALT)" is switched off during a temporary stop, the servo
motor starts for the remaining travel distance.
"Controlword bit 4 (New set-point)" does not function even it is switched on during a temporary stop.
When any of the following conditions is satisfied during a temporary stop, the travel remaining
distance is cleared.
The control mode is changed from the point table mode (pt) to the Jog mode (jg).
The servo motor enters the servo-off status.
The temporary stop/restart input functions in the following status.
Operation status
Point table mode
(pt)
Jog mode (jg)
Homing
mode (hm)
During a stop
Temporary stop
Temporary stop
During
acceleration
Temporary stop
Temporary stop
Temporary stop
At a constant
speed
Temporary stop
Temporary stop
Temporary stop
During
deceleration
Temporary stop
Temporary stop
During a
temporary stop
Restart
Restart
Stop
1) When the servo motor is rotating
Reverse
rotation
0 r/min
Forw ard
rotation
Servo motor speed
ON
OFF
ON
OFF
Deceleration time constant of
point table No. n
No. n
OFF
OFF
ON
ON
Acceleration time constant of
point table No. n
Remaining
distance
OFF
ON
Controlw ord bit 4
(New set-point)
Target point table
Status DO 5 bit 5
(S_CPO (Rough match))
INP/S_INP
(In-position)
Status DO 5 bit 6
(S_MEND (Travel completion))
Point actual value No. n
Controlw ord bit 8 (Halt)
