1. FUNCTIONS AND CONFIGURATION
1 - 23

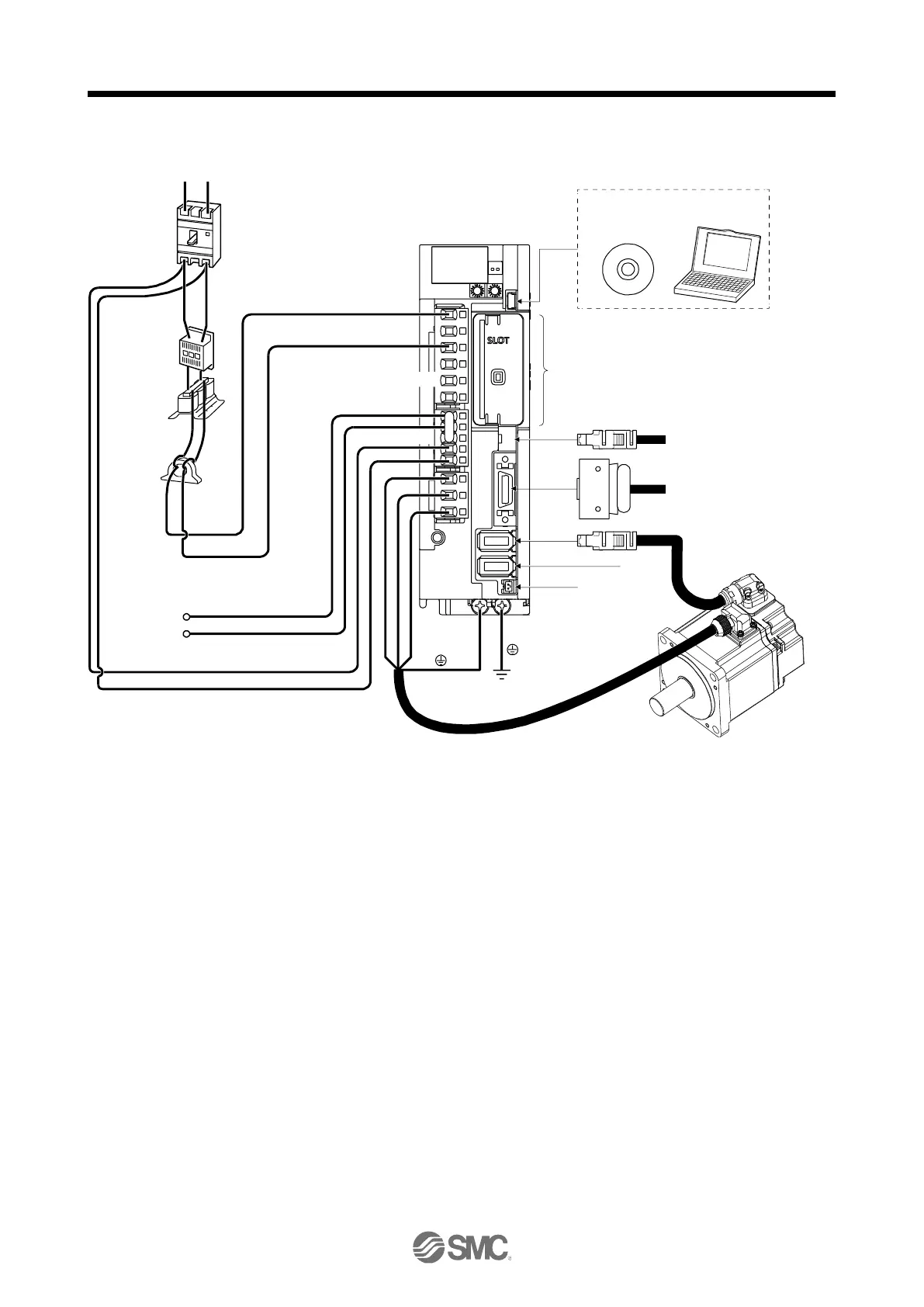

(3) LECSN1-T
□
(Scheduled release product)
The diagram is for LECSN1-T7.
CN4
CN5
MR Configurator2
CN8
CN2
CN2L (Note 4)
CN3
W
V
U
P+
C
L11
L21
L1
L2
Power factor
improving AC
reactor
(FR-HAL)
R T
(Note 1)
D (Note 5)
Netw ork module dependence (Note 6)
Junction terminal
block
To safety relay or MR-J3-D05
safety logic unit
Battery
Servo motor
(Note 3)
Magnetic
contactor
(MC)
(Note 1)
Molded-case
circuit breaker
(MCCB)
(Note 2)
Pow er supply
Line noise
filter
(FR-BSF01)
Regenerative
option
Personal
computer
Note 1.
The power factor improving DC reactor cannot be used.
2.
For power supply specifications, refer to section 1.3.
3.
Depending on the main circuit voltage and operation pattern, bus voltage decreases, and that may cause the forced stop
deceleration to shift to the dynamic brake deceleration. When dynamic brake deceleration is not required, slow the time to
turn off the magnetic contactor.
4.
Do not use it.
5.
Always connect between P+ and D terminals. When using the regenerative option, refer to section 11.2.
6.
For the network card connections, refer to chapter 18,19,20.
Mitsubishi electric
Mitsubishi electric
Mitsubishi electric
STO cable
I/O connector
or I/O cable
