17．HOW TO USE INDEXER
(4) Timing chart
POINT
Be sure to perform a home position return. Executing positioning operation
without home position return will trigger [AL. 90 Home position return incomplete
warning] and "Controlword bit 4 (New set-point)" will be disabled.
When travel distances to a target station position from CCW and from CW are
the same, the shaft will rotate to the station No. increasing direction.
This disables "Controlword bit 5 (Direction)". The following timing chart shows that an operation is performed
at a stop of the station No. 0 when servo-on.

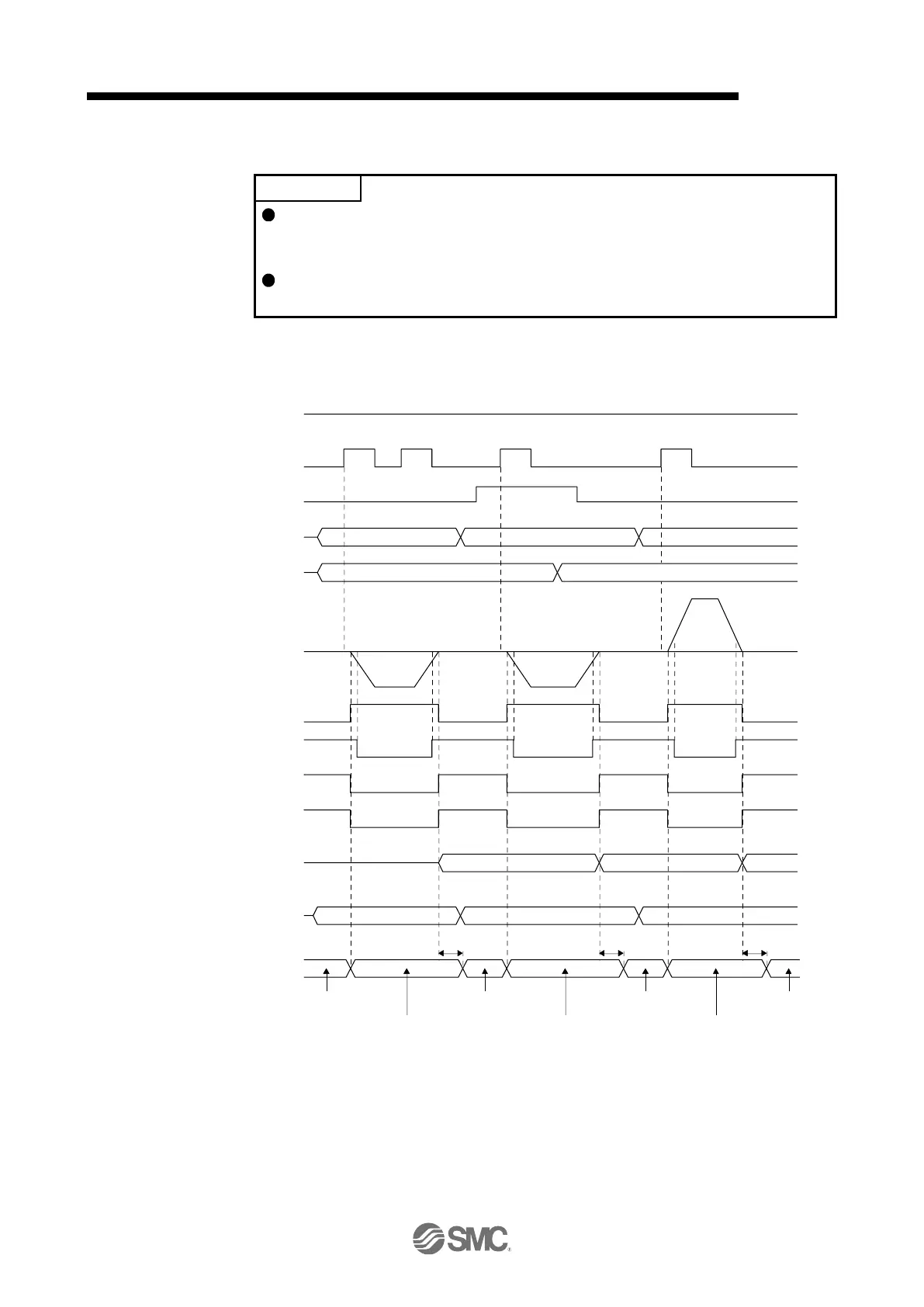

1 3 1
*1 *2
*3
1 3 1
1 3 1
Shortest rotating indexer operation
Reverse
rotation
0 r/min
Forward
rotation
ON
OFF
Controlw ord bit 6
(Indexer mode)
ON
OFF
ON
OFF
Target point table (Note 1)
ON
OFF
INP/S_INP
(In-position) (Note 6)
ON
OFF
Statusw ord bit 12
(Set-point acknowledge)
ON
OFF
Status DO 5 bit 5
(S_CPO (Rough match))
Status DO 5 bit 6
(S_MEND (Travel completion))
ON
OFF
Point actual value
Enabled torque limit value
100.00 r/minProfile velocity
Controlw ord bit 4
(New set-point)
Controlw ord bit 5
(Direction)
Servo motor speed (Note 4)
(Note 3)
(Note 5)
Point demand value
Torque limit value2
Positive torque limit value/
Negative torque limit value
Torque limit value2
Positive torque limit value/
Negative torque limit value
Torque limit value2
Positive torque limit value/
Negative torque limit value
Torque limit value2
(Note 5) (Note 5)
(Note 2)
150.00 r/min
