20．PROFINET COMMUNICATION

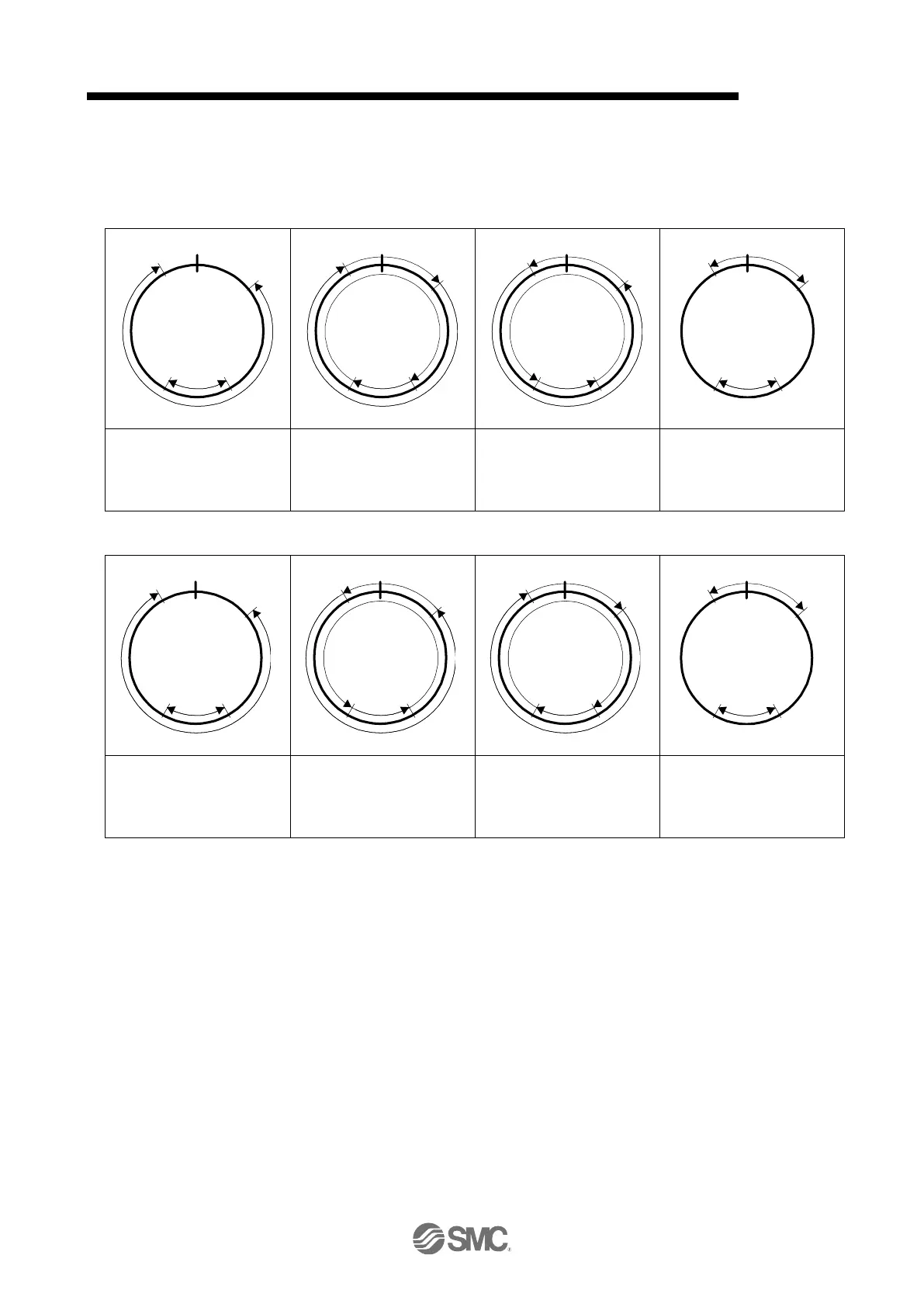

(2) Sequences for degree setting
The following shows the operation patterns corresponding to the settings of Positioning option code
(P24818).
(a) When POL is disabled ([Pr. PA14] = 0)
150 210
50
330
360 = 0
150 210
50
330
360 = 0
150 210
50
330
360 = 0
150 210
50
330
360 = 0
Bit 7: 0
Bit 6: 0
The servo motor rotates in
a direction specified with a
sign of the position data.
Bit 7: 0
Bit 6: 1
The servo motor rotates
only in the address
decreasing direction.
Bit 7: 1
Bit 6: 0
The servo motor rotates
only in the address
increasing direction.
Bit 7: 1
Bit 6: 1
The servo motor rotates in
the shorter direction.
(b) When POL is enabled ([Pr. PA14] = 1)
210 150
330
50
360 = 0
210 150
330
50
360 = 0
210 150
330
50
360 = 0
210 150
330
50
360 = 0
Bit 7: 0
Bit 6: 0
The servo motor rotates in
a direction specified with a
sign of the position data.
Bit 7: 0
Bit 6: 1
The servo motor rotates
only in the address
decreasing direction.
Bit 7: 1
Bit 6: 0
The servo motor rotates
only in the address
increasing direction.
Bit 7: 1
Bit 6: 1
The servo motor rotates in
the shorter direction.
Shortest
rotation
