Xerox Phaser 4510 - Deletions (Line, Band, Spots)

5-6 Phaser 4500/4510 Service Manual
Print-Quality Troubleshooting

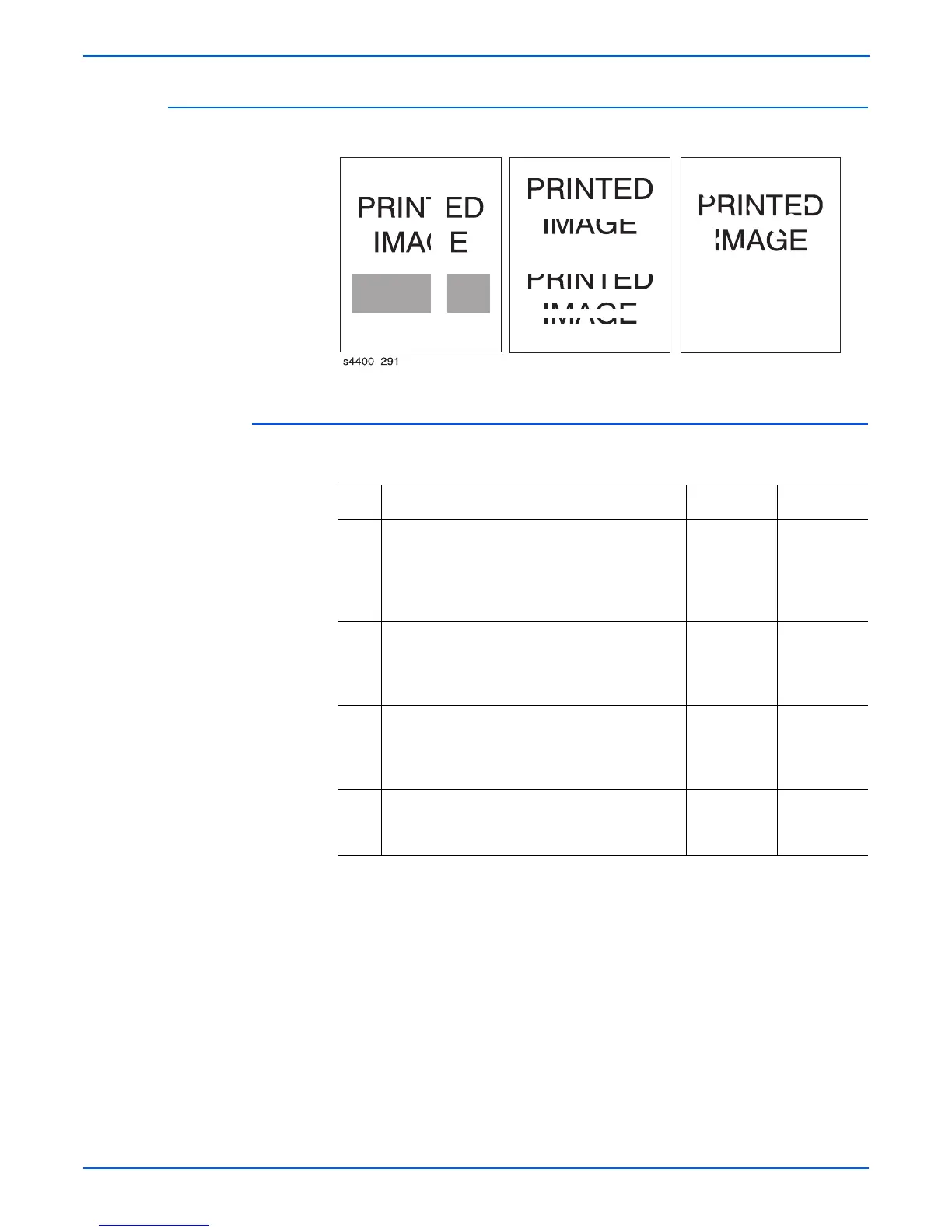

Deletions (Line, Band, Spots)
Line, Band, or Spot Deletions
Step
Actions and Questions
Yes No
1 Inspect the test print for the presence of
deletions (missing image). There should be no
deletions with a diameter larger than 0.5 mm
visible on test prints.
Are there deletions on the test prints?
Go to step 2. Go to
“Fusing” on
page 5-7.
2 Are there vertical (in process direction) Line/
Band deletions present?
Go to
“Vertical
Deletions” on
page 5-20.
Go to step 3.
3 Are there Horizontal (in direction of scanning)
Line/Band Deletions present?
Go to
Horizontal
Deletions on
page 5-22.
Go to step 4.
4 Are there Spot Deletions present? Go to “Spot
Deletions” on
page 5-36.
Go to
“Fusing” on
page 5-7.
