Xerox Phaser 4510 Service Manual

Phaser 4500/4510 Service Manual 8-15
FRU Disassembly
Print Engine: 150-Sheet Feeder
150-Sheet Feeder Assembly
(PL5.1.1)
Procedure:
1. Remove the 150-sheet paper cassette (tray 1).
2. Remove the transfer chute (page 8-46).
3. P4510: Disconnect connectors P/J242 and P/J243 near the center of the
feeder.
4. Disconnect the two harnesses, P/J 245 and P/J 221.
5. P4510: Cut the wire tie that holds the fan wire in the bundle.
6. P4510: Release the wire harnesses for P/J 242 and P/J 243 from the
retainers in the feeder housing.
7. Swing the roller holder assembly (item 3 in figure) up firmly until it latches
in the detent.
8. Remove the five screws (8 mm w/ washer) that attach the 150-sheet
feeder assembly to the printer.
9. Shift the 150-sheet feeder assembly backward to disengage the right
boss from the frame.
10. Lift the 150-sheet feeder assembly to disengage the left boss.
11. Remove the 150-sheet feeder assembly from the printer.

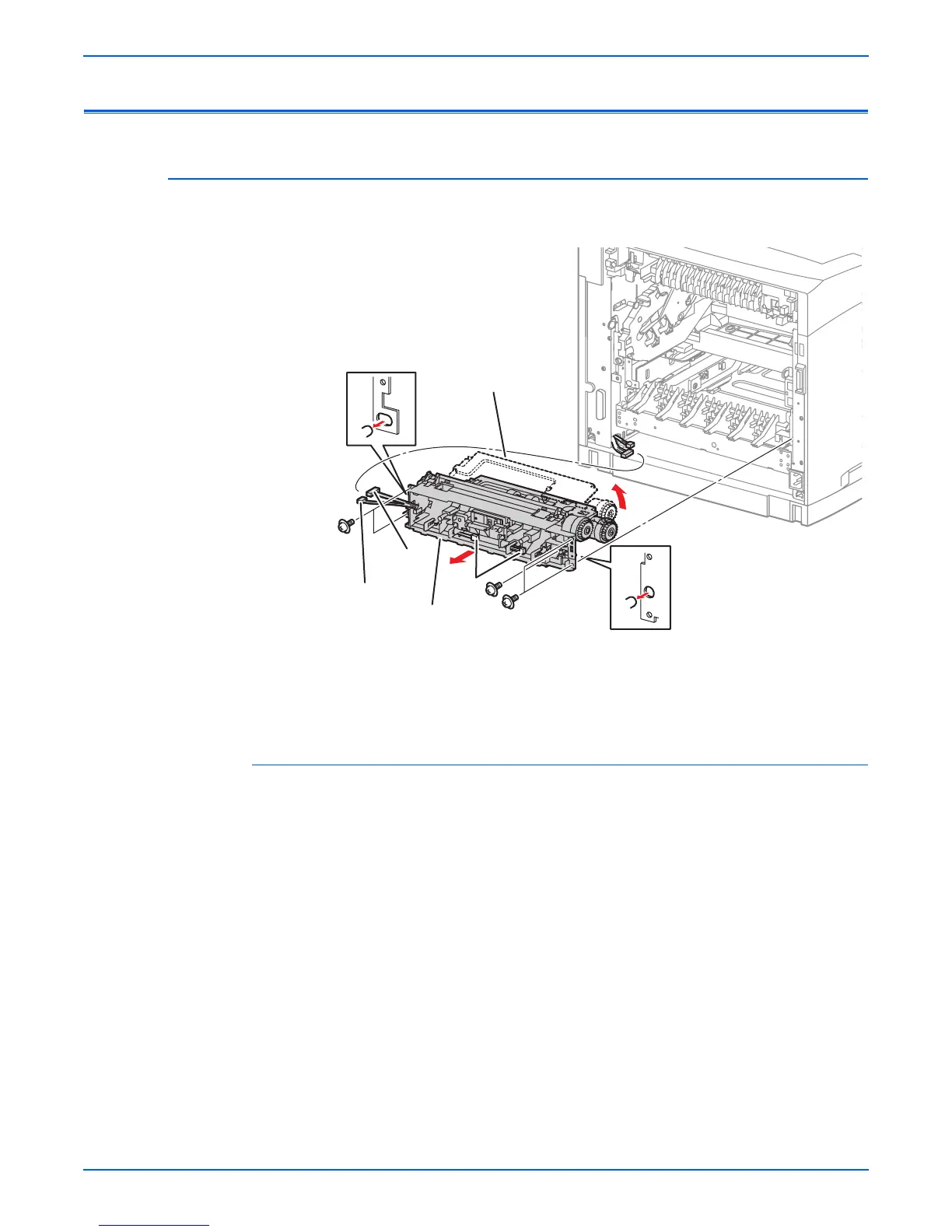

1.150-sheet feeder assembly 3.Roller holder assembly
2. Connectors (P/J242 & P/J243)
s4510-090
1
3
P/J221
P/J245
2
