Xerox Phaser 4510 Service Manual

2-18 Phaser 4500/4510 Service Manual
Theory of Operation
Xerographics
Print Cartridge
The print cartridge is a customer-replaceable item that consists of the
following components:
Drum The drum is an aluminum cylinder coated with a layer of
photoconductive material that retains electrical charges on its surface until
exposed to light, when electrical conduction occurs.
Bias charge roller (BCR) The BCR uniformly distributes electrical charges over
the drum surface, and erases a charge pattern remaining from the previous
cycle.
Magnet roller A thin layer of toner, supplied by the agitator in the toner
compartment, adheres to the surface of this roller, which transports the toner
into the gap between the drum and magnet roller.
Charging and metering (CM) blade The CM blade spreads toner into a thin layer
over the magnet roller, and applies negative charges to the toner
triboelectrically.
Cleaning blade The cleaning blade scrapes off toner remaining on the drum
surface after the transfer step.

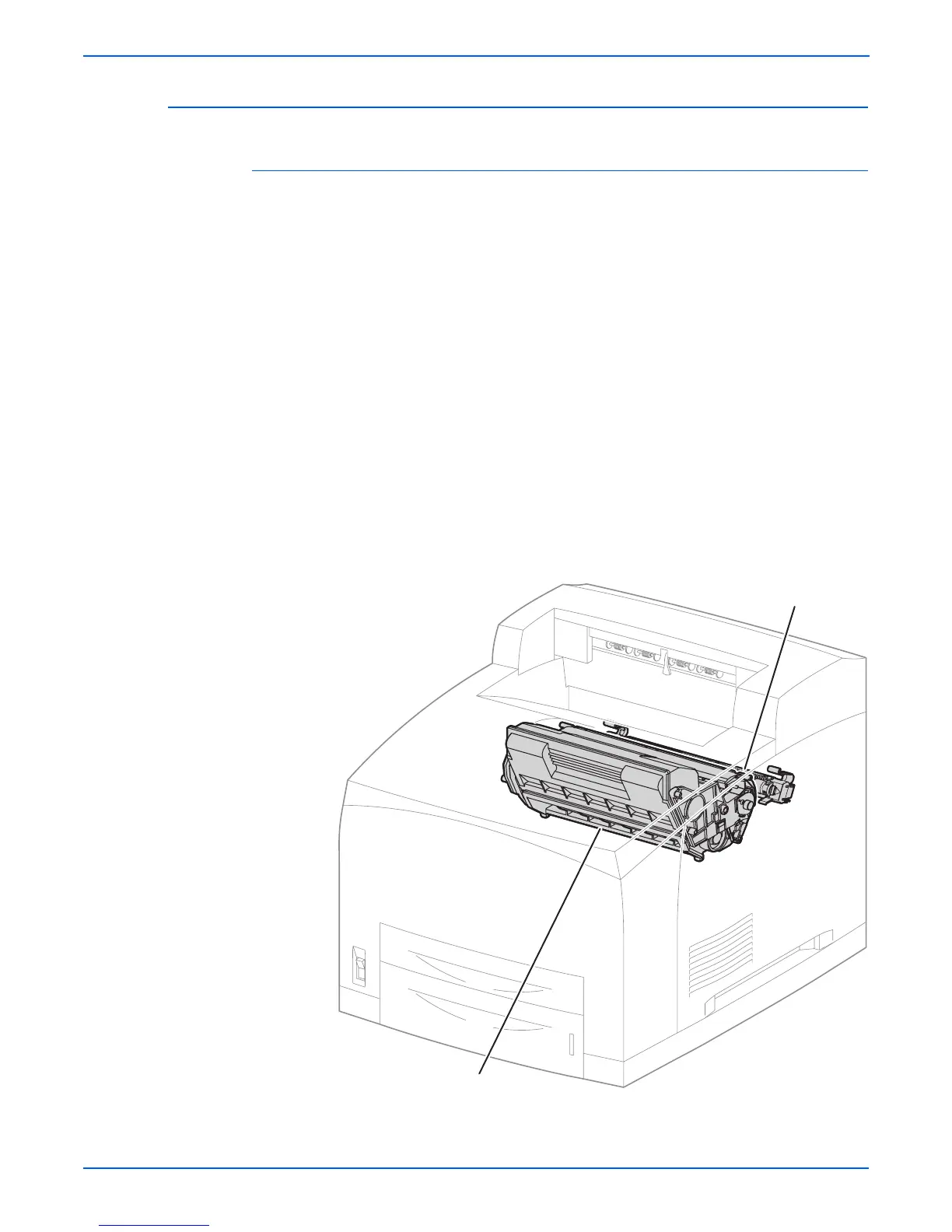

1.Print cartridge 2.Transfer roller
s4500-010
1
2

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
