Phaser 4500/4510 Service Manual 8-45
FRU Disassembly
Transfer Roller Assembly
(PL8.1.21)
Procedure:
1. Remove the print cartridge and leave the top cover open. Protect the print
cartridge from light exposure.
2. Squeeze the latches of both ends of the transfer roller assembly, and
remove it from the printer.
Note
Be careful to avoid damaging the transfer roller when handling.

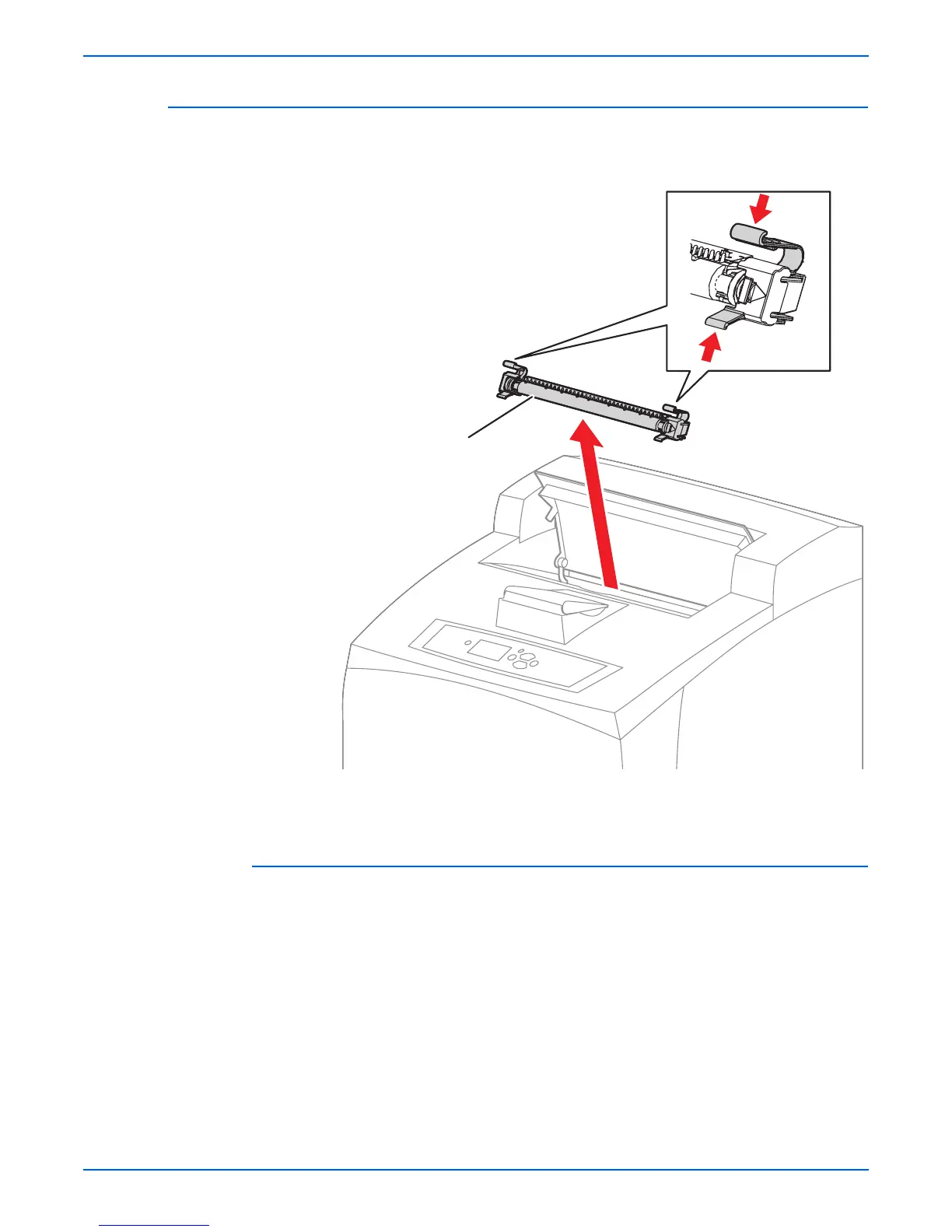

1.Transfer roller assembly
s4500-121
1
