Xerox Phaser 4510 - 550-Sheet Feeder

8-86 Phaser 4500/4510 Service Manual
FRU Disassembly
550-Sheet Feeder
(PL20.2.1)
Procedure:
1. Remove the five 8 mm tapping screws that attach the feeder rear cover to
the frame.
2. Remove the feeder rear cover.
Note
The three connectors in the following step have gender adapters that
could stay with either side of the harness.

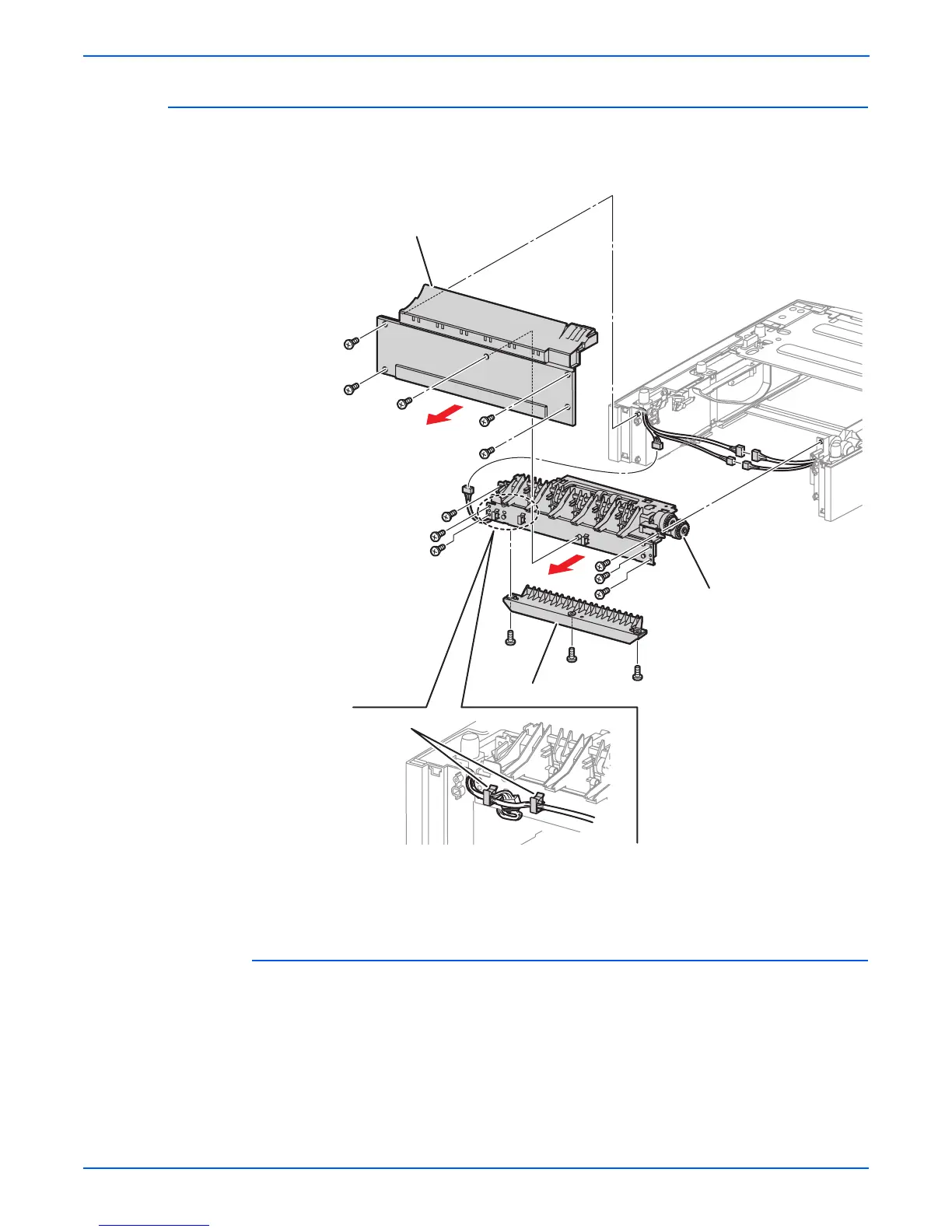

1.Feeder rear cover 3.Lower chute
2.Optional 550-sheet feeder 4.Harness clamps
s4500-160
3
2
1
4
