Xerox Phaser 4510 - Stack Full Actuator

Phaser 4500/4510 Service Manual 8-117
FRU Disassembly
Stack Full Actuator
(PL23.1.15)
Procedure:
1. Remove the stacker cover (page 8-113).

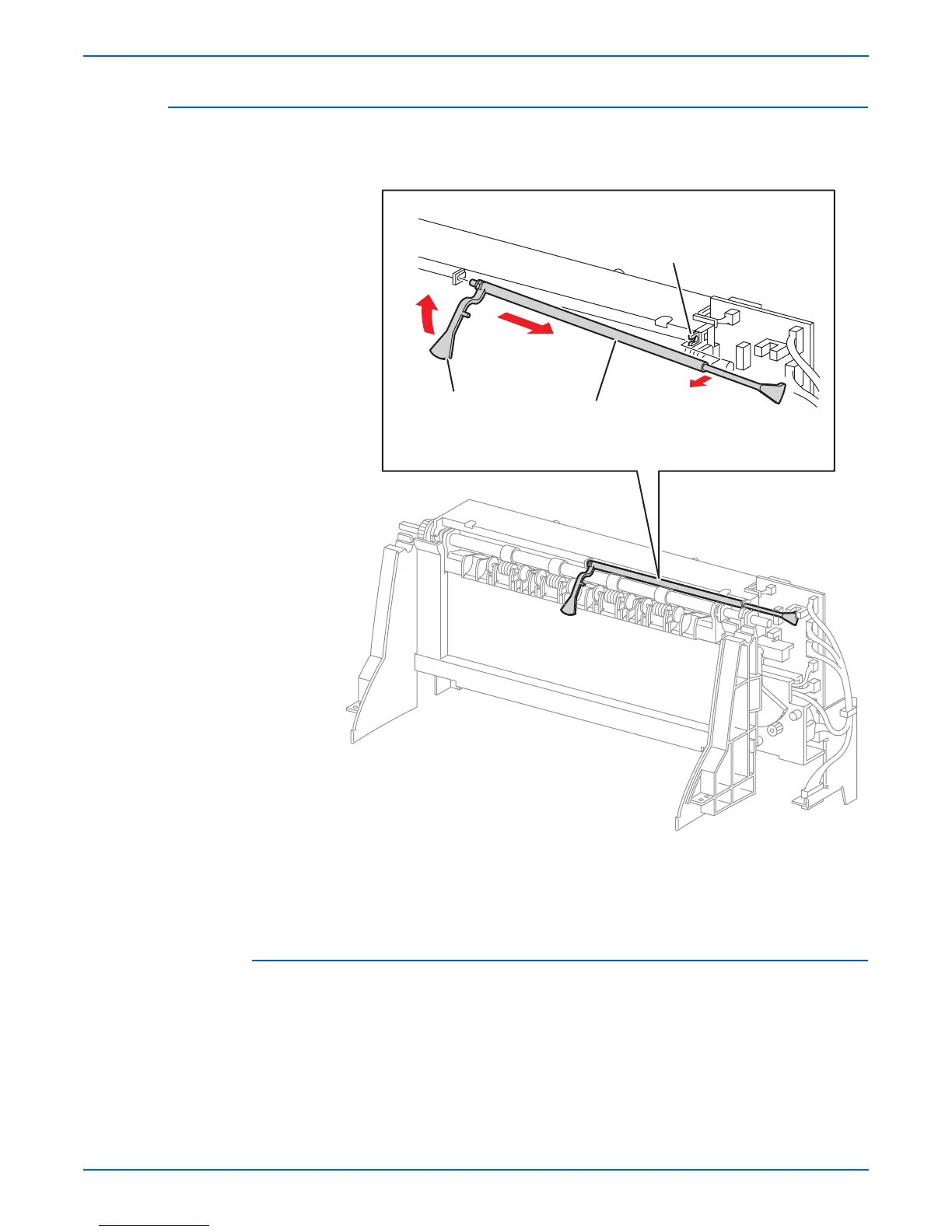

2. Lift the stack full actuator flap in the direction of the arrow (1). Release the
actuator shaft from the hook, then move the actuator in the direction of the
arrow (2) to remove from the stacker.
1.Flap 3.Hook
2.Stack full actuator
1
2
s4500-206
1
2
3
