8-58 Phaser 4500/4510 Service Manual
FRU Disassembly
Gear Assembly Plate
(PL11.1.10)
Procedure:
1. Remove the fuser assembly (page 8-44).
2. Remove the gear assembly housing (page 8-56).
Note
When removing the gear assembly plate, one of the gears installed
on the gear assembly plate is not secured on its shaft and might
come off. Also, there is a spring inside of the gear that is not secured
to the gear assembly plate. Take care to avoid dropping these parts.

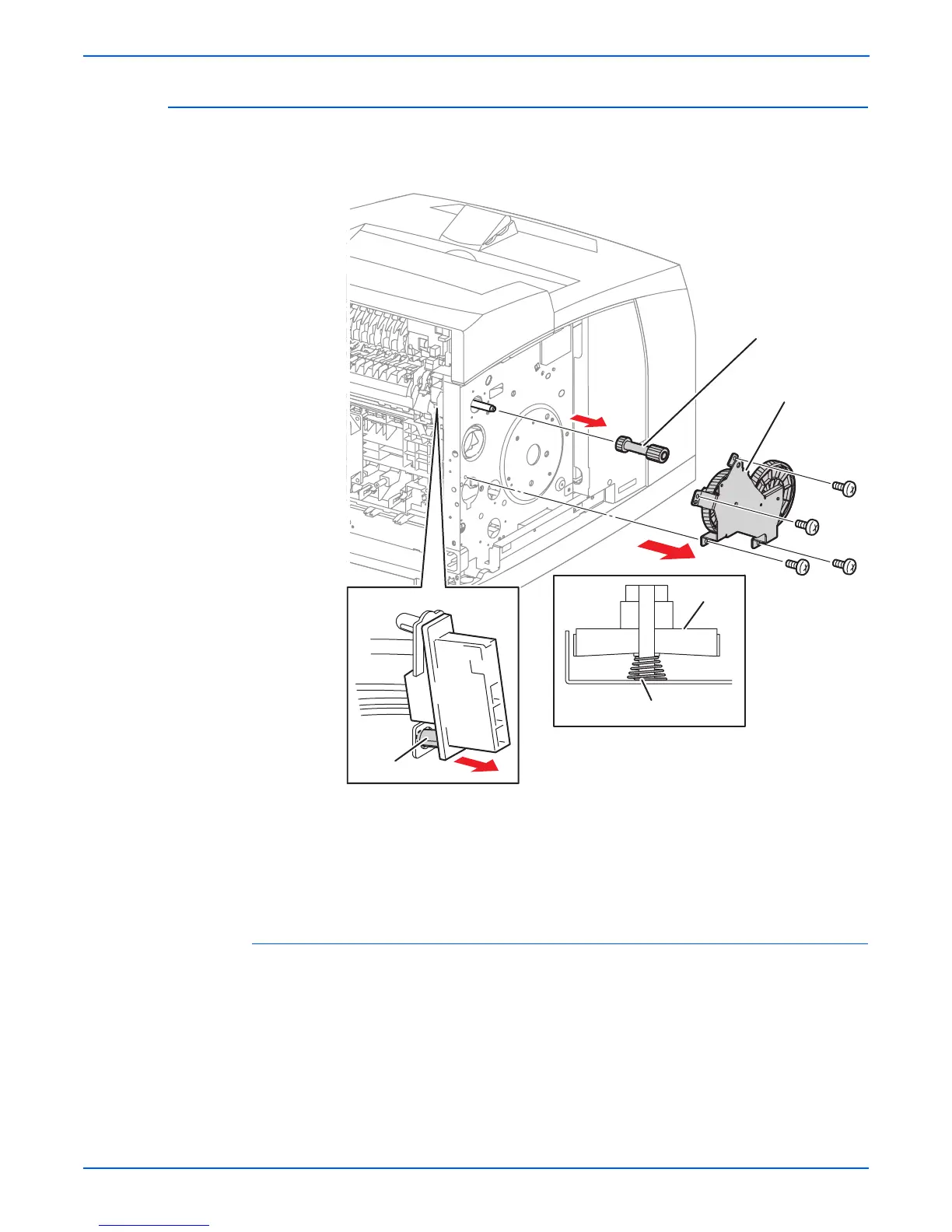

1.Gear 9 4.Gear
2.Gear assembly plate 5.Spring
3. Locking tab
s4500-141
1
2
4
5
3
