Phaser 4500/4510 Service Manual 8-5
FRU Disassembly
Paper Exit Rear Door
(PL10.2.21)
Procedure:
1. Open the duplex unit if one is installed (page 8-95).
2. Lift the lever to release the lock, and open the paper exit rear door.
3. Pry out the hinge retainer on the right side.
4. Release the hook of the left side hinge, and shift the paper exit rear door
in the direction of the arrow to remove from the printer.
Replacement Note:
When replacing the hinge retainer, bow it up in the center to allow the retainer
to snap into place.

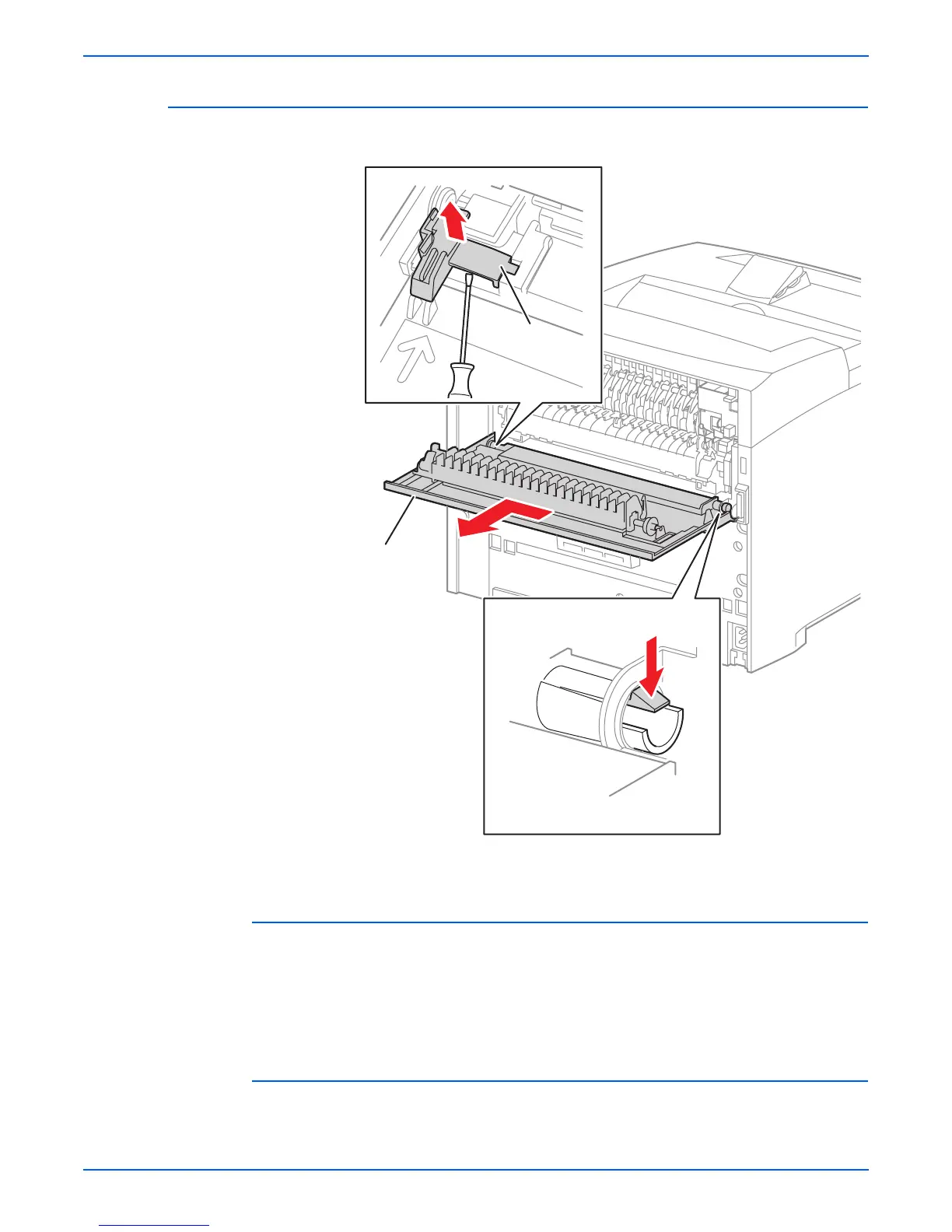

1.Paper exit rear door 2.Hinge Retainer
1
s4500-135
2
