Xerox Phaser 4510 - Stacker Motor Assembly

8-128 Phaser 4500/4510 Service Manual
FRU Disassembly
Stacker Motor Assembly
(PL23.1.6)
Procedure:
1. Remove the stacker front cover (page 8-115).
2. Disconnect the connector of the stacker motor assembly from the stacker
motor harness assembly.
3. Remove the two screws (machine, 8 mm) that attach the stacker motor
assembly, and remove the stacker motor assembly.

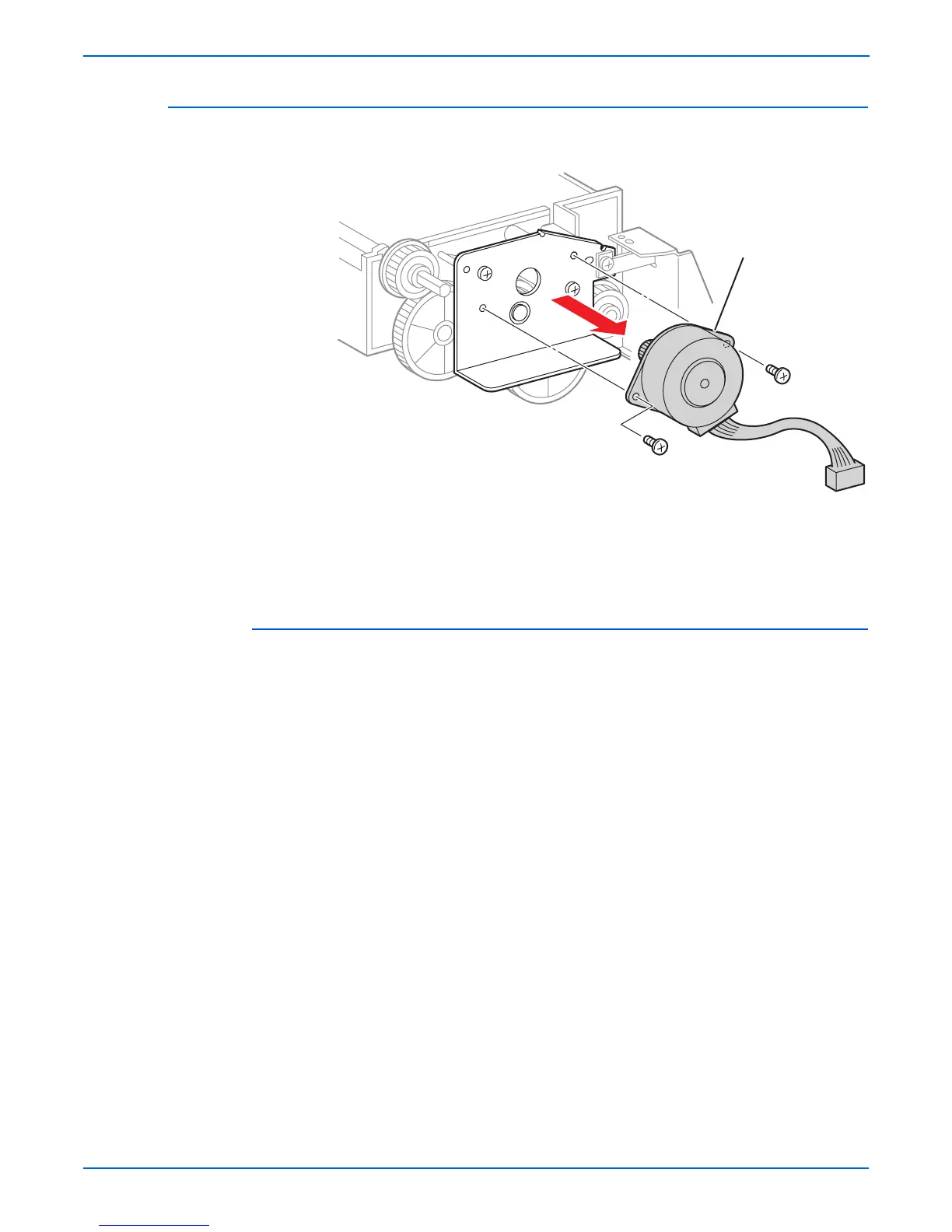

1.Stacker motor assembly
s4500-217
1
