8-8 Phaser 4500/4510 Service Manual
FRU Disassembly
Left Cover
(PL1.1.6)
Procedure:
1. Remove the rear cover (page 8-6).

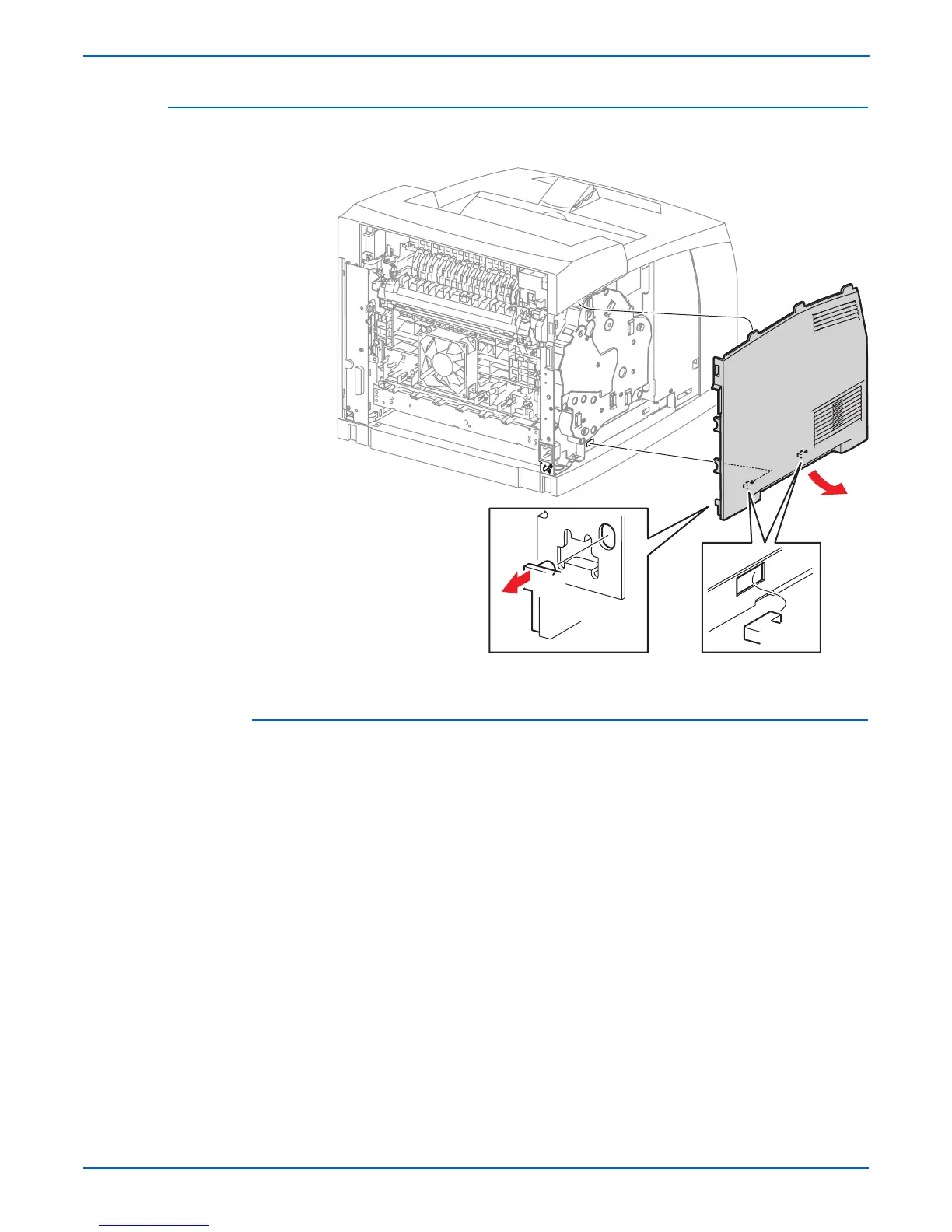

2. Shift the left cover towards the rear of the printer to release the five hooks
(one at the front, two at the bottom, two on the rear), then swing out the
bottom edge.
3. Move the cover downward to release the three tabs along the top edge,
and lift away from the printer.
s4500-059
