Theory of Operation

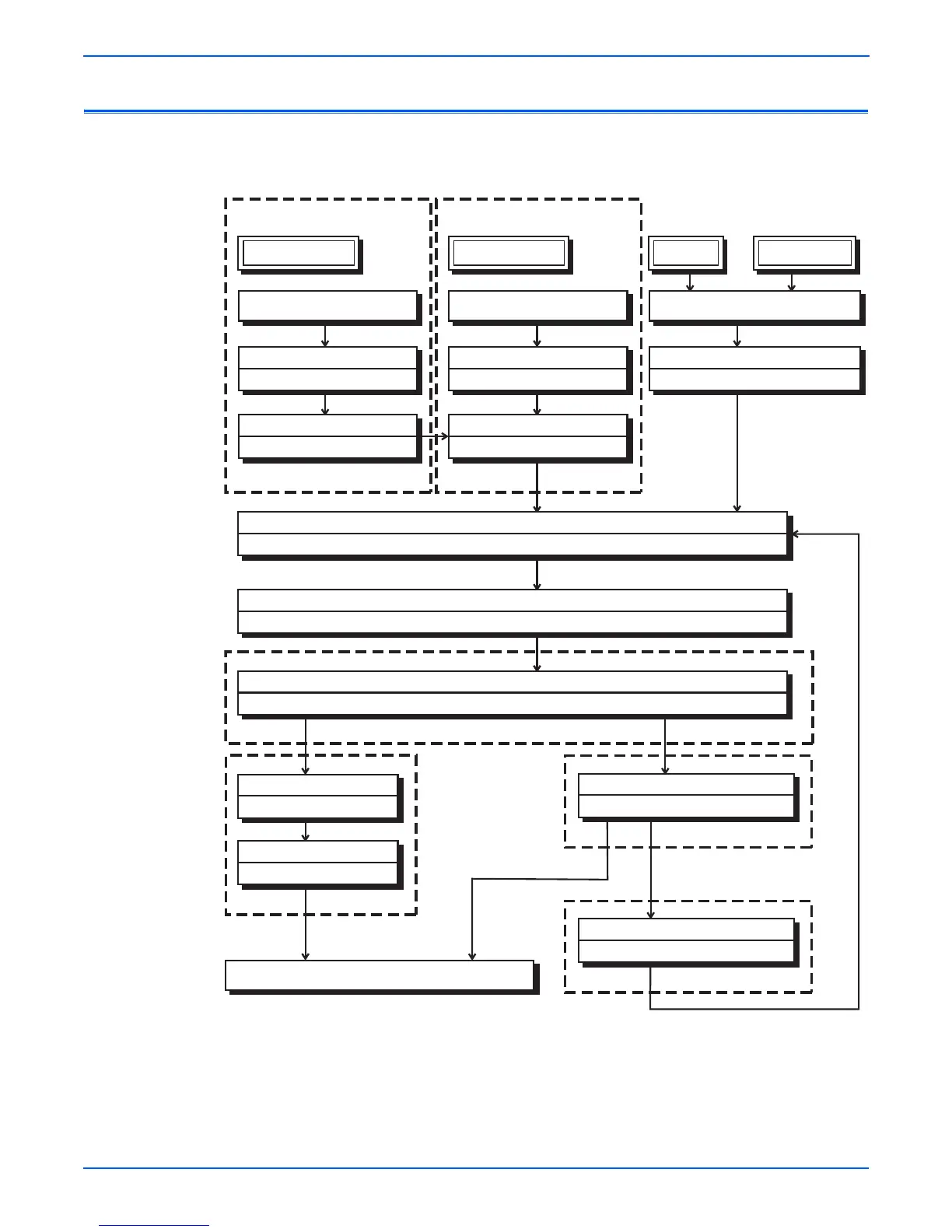

Paper Path of the Printer
Paper is supplied from Trays 1 and 2 or the optional Trays 3 and 4, and is
transported into the printer along the paper path shown below.
Nudger Roller
Feed Roller
Retard Roller
Tray 2 Tray 1
Nudger Roller
Feed Roller
Retard Roller
Turn Roller
Turn Pinch Roller
550-Sheet Tray
Nudger Roller
Print Exit
Feed Roller
Retard Roller
Turn Roller
Turn Pinch Roller
Rubber Registration Roller
Metal Registration Roller
Transfer Roller Assembly
Drum
Heat Roller
Pressure Roller
Optional 550-Sheet Feeder
(Tray 4)
Optional 550-Sheet Feeder
(Tray 3)
Fuser Assembly
Exit Roller
Exit Pinch Roller
500-sheet Exit Assembly
Duplex Roller
Pinch Roller
Optional Duplex Unit
Lower Stacker Roller
Pinch Roller
Upper Stacker Roller
Stacker Pinch Roller
Optional Stacker
550-Sheet Tray
s4500-017

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
