Xerox Phaser 4510 - Duplex Unit Opening Cover

8-48 Phaser 4500/4510 Service Manual
FRU Disassembly
7. Unplug J15 from P15 on the HVPS/engine logic board.
8. Remove the three 6 mm machine screws that attach the print cartridge
right guide assembly to the frame.
9. Pull the wiring harness of the print cartridge right guide assembly from the
frame.
10. Remove the print cartridge right guide assembly.
Duplex Unit Opening Cover
(PL9.1.13)
Procedure:

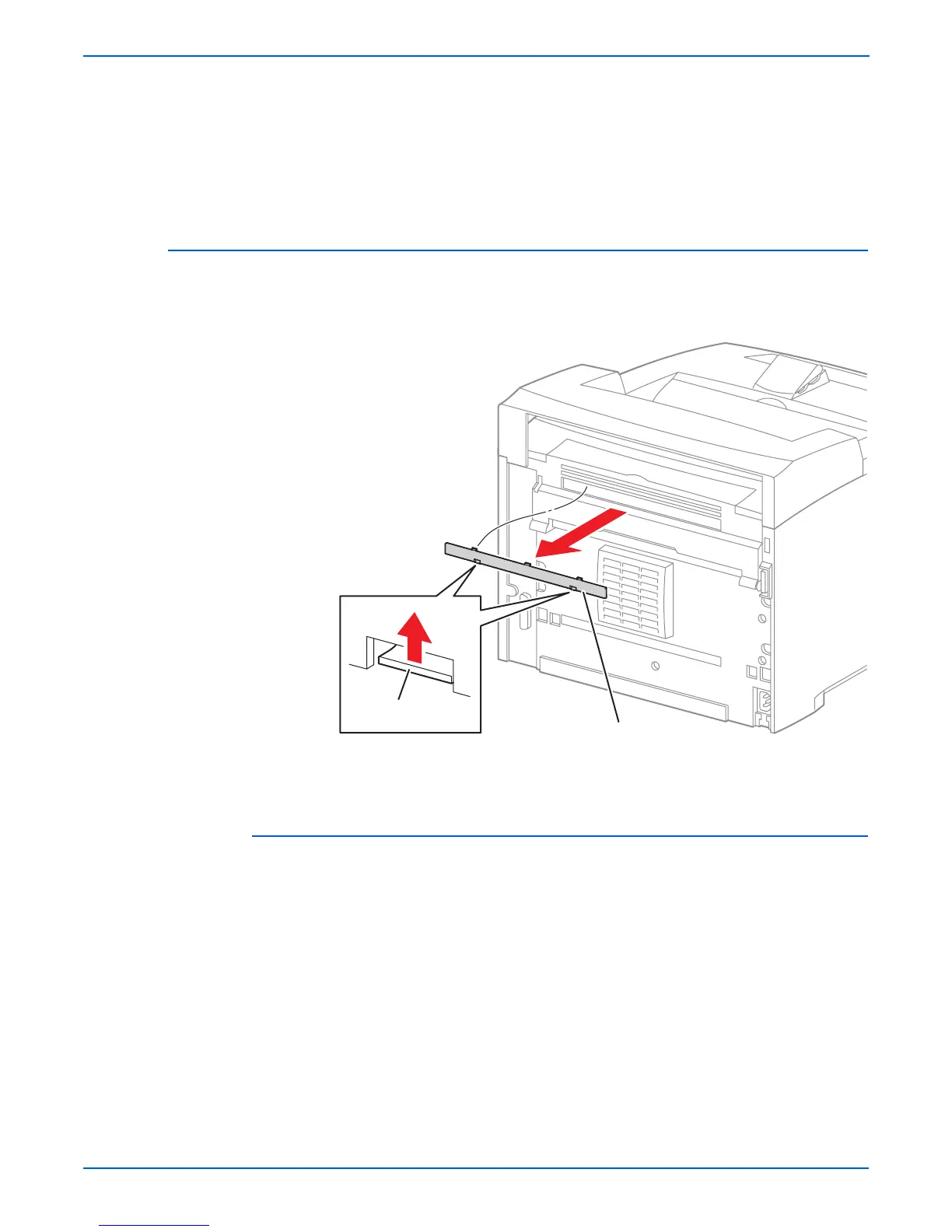

Release the latch hooks of the duplex unit opening cover, and remove it from
the paper exit rear door.
1.Duplex unit opening cover 2.Latch hooks
s4500-126
1
2
