Xerox Phaser 4510 - Nudger Gear

8-18 Phaser 4500/4510 Service Manual
FRU Disassembly
Nudger Gear
(PL5.1.10)
Procedure:
1. Remove the 150-sheet feeder assembly (page 8-15).

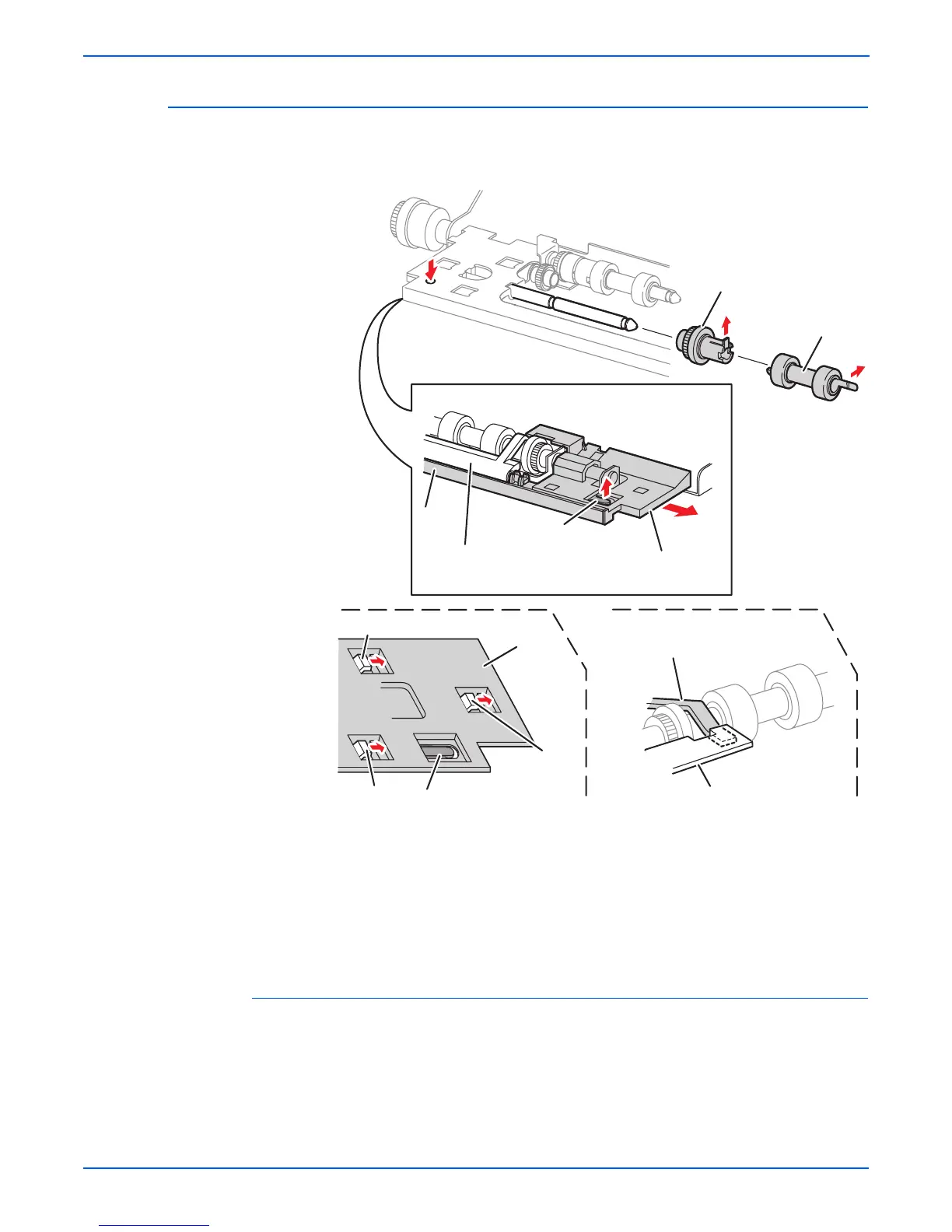

2. Press down the boss of the left holder at the back of the 150-sheet feeder
assembly, then shift the left holder in the direction of the arrow to release
the three hooks.
3. Remove the left holder and no paper actuator from the nudger support.
1.Nudger gear 5.Boss (lift up)
2.Nudger roller 6.Left holder
3.Nudger support 7. Hooks
4. No paper actuator
1
2
3
4
5
6
Inverted View
s4500-163
4
6
7
7
7
6
5
