Xerox Phaser 4510 - Upper Assembly Housing

Phaser 4500/4510 Service Manual 8-99
FRU Disassembly
Upper Assembly Housing
(PL21.1.1)
Procedure:
1. Remove the four 8 mm tapping screws that attach the upper assembly
housing to the duplex unit.
2. Remove the upper assembly housing from the duplex unit housing cover.

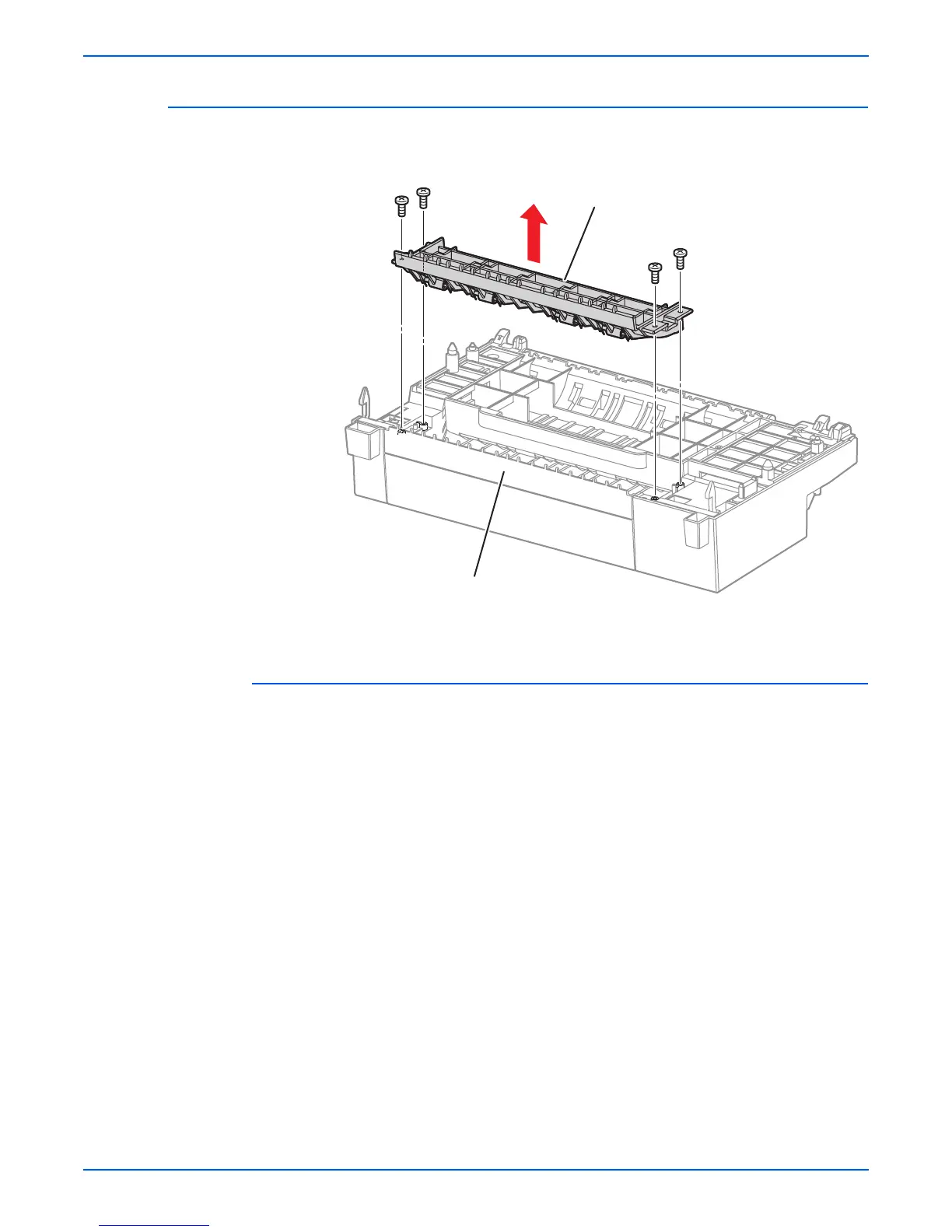

1.Upper assembly housing 2.Duplex unit housing cover
1
2
s4510-185
