Xerox Phaser 4510 - Link Lever, Gear 3 Link

Phaser 4500/4510 Service Manual 8-43
FRU Disassembly
Link Lever, Gear 3 Link
(PL8.1.29) (PL8.1.30)
Procedure:
1. Remove the print cartridge left guide (page 8-40).
2. Remove the link lever and gear 3 link.

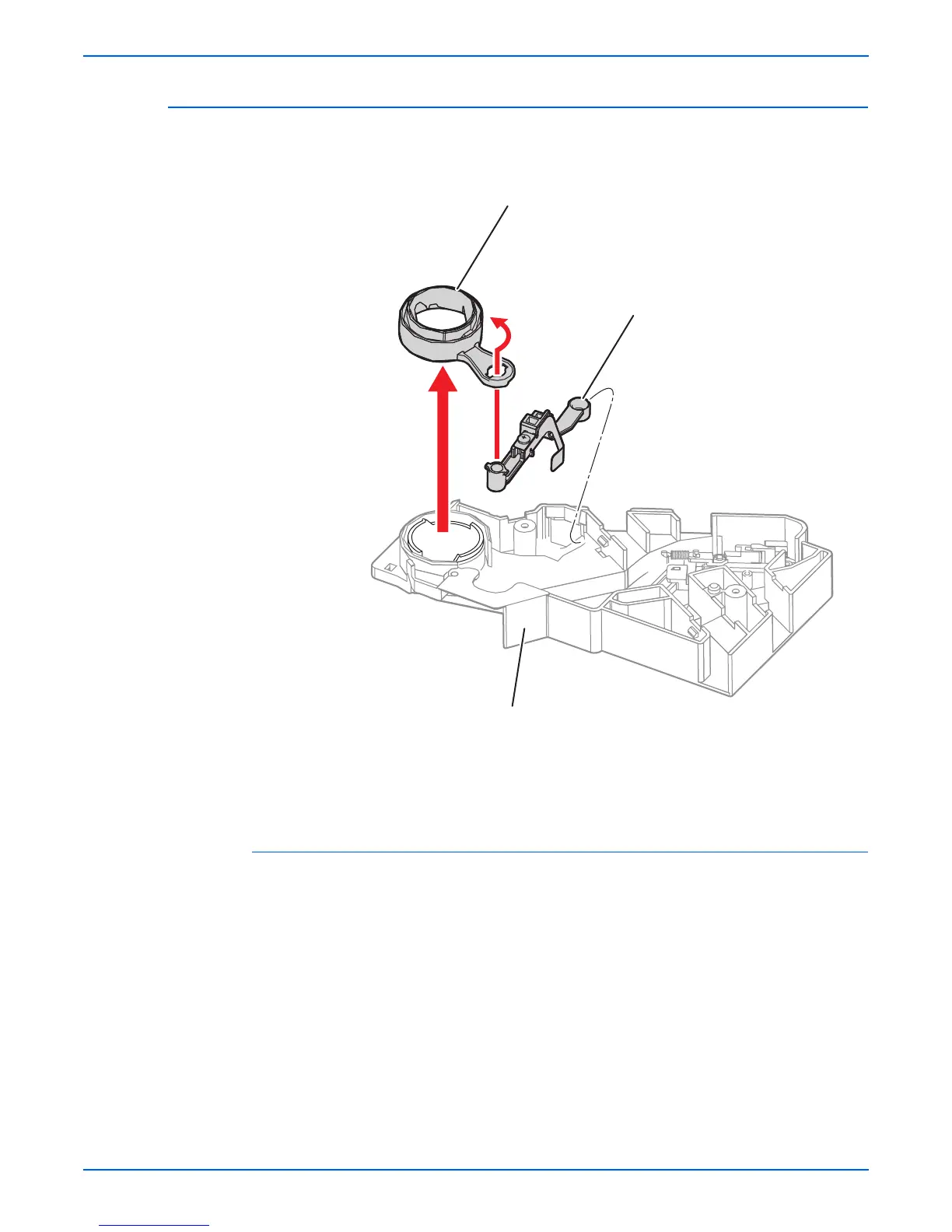

1. Gear 3 link 3. Print cartridge left guide
2.Link lever
1
2
s4500-125
3
