8-106 Phaser 4500/4510 Service Manual
FRU Disassembly
6. Remove the four screws (tapping, 22 mm) that attach the duplex unit rear
cover to the duplex unit housing and remove the cover. The two screws
near the bottom of the unit are accessible through holes in the duplex unit
lower housing.
7. Remove the two screws (tapping, 22 mm) that attach the duplex unit fan
to the duplex unit housing cover and remove the fan.
Duplex Unit Sensor
(PL21.1.34)
Procedure:
1. Remove the right cover (page 8-97).
2. Remove the top cover (page 8-98).
3. Release the hooks of the duplex unit sensor, and remove it from the
duplex unit housing cover.
4. Disconnect the connector (P/J530) of the duplex unit assembly harness
SNR form the duplex unit sensor.

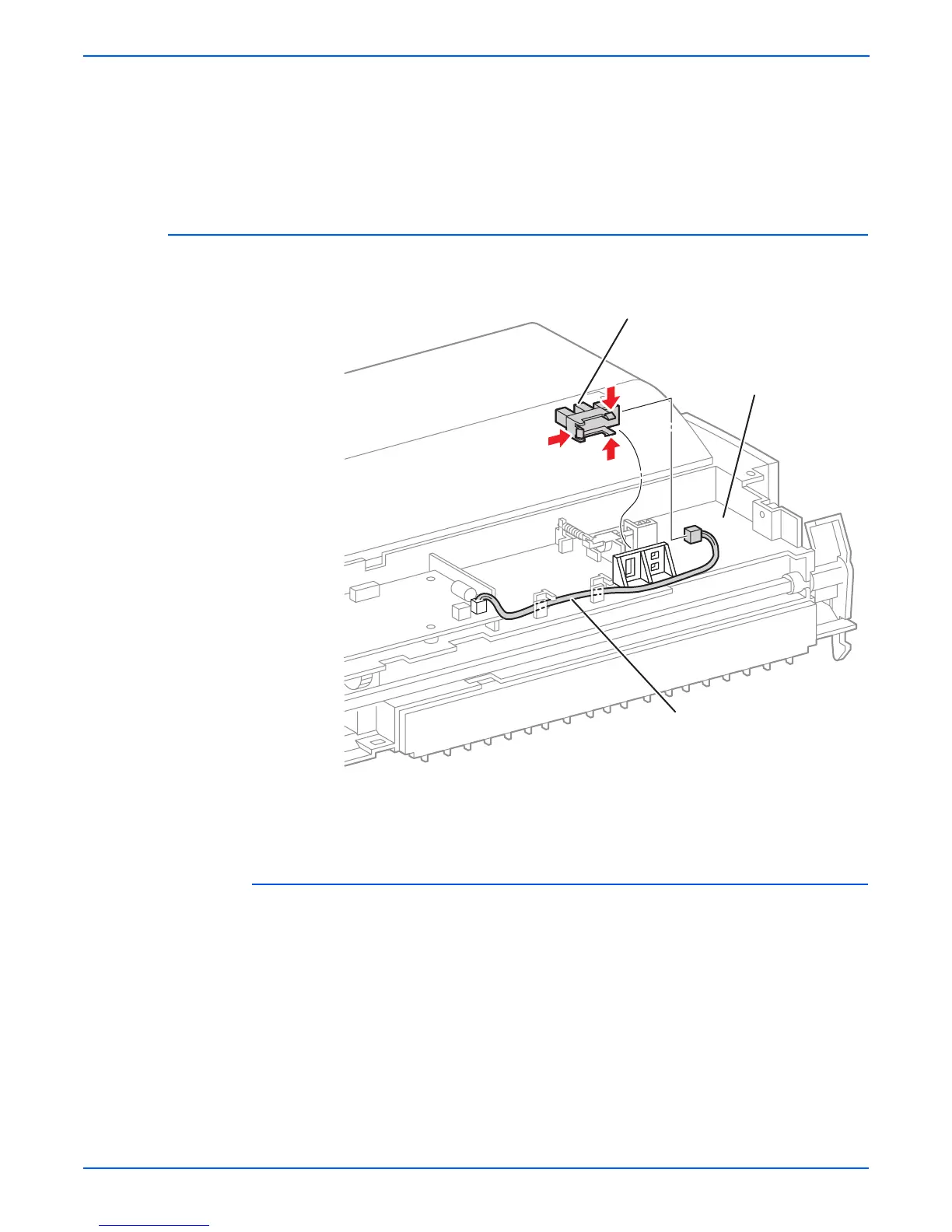

1.Duplex unit housing cover 3.Duplex unit sensor harness
2.Duplex unit sensor
s4510-191
2
3
1
