Xerox Phaser 4510 - Stacker

2-36 Phaser 4500/4510 Service Manual
Theory of Operation
Stacker
Drive Transmission Path

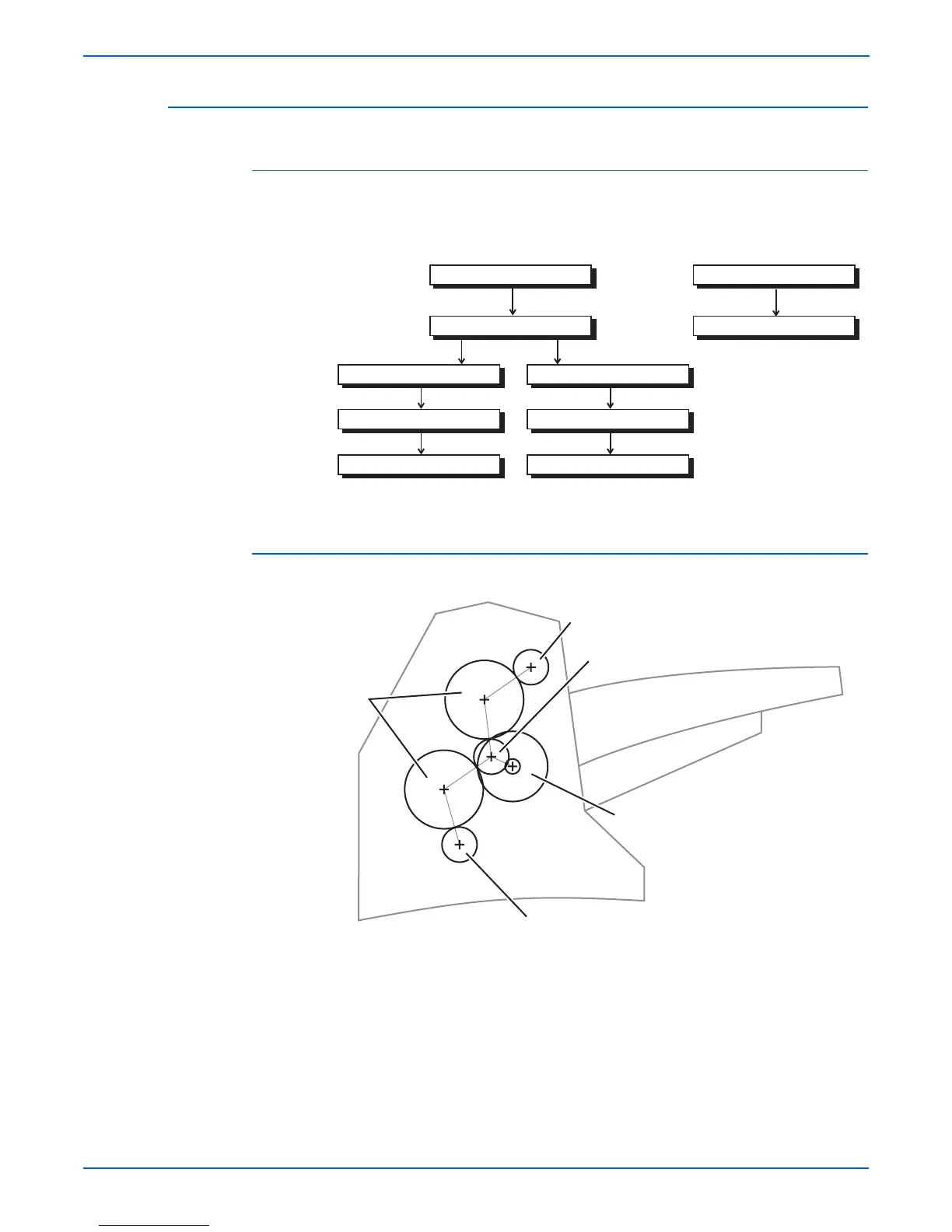

The rotating force of the stacker motor assembly is transmitted by various
gears to components requiring mechanical driving force as shown in this flow
chart and the gear layout that follows.
Gear Layout
1.Gear 45 4.Stacker motor assembly
2.Gear 19 5.Gear 19
3. Gear 19/37
Gear 19/37
OCT Motor Assy
Gear 45
Gear 19
Lower OCT Roller
Gear 19
Upper OCT Roller
Gear 45
Cam Gear
Offset Motor Assy
s4500-031
s4500-032
1
2
3
4
5
