Phaser 4500/4510 Service Manual 5-7
Print-Quality Troubleshooting
Fusing
N
o
t
e
The operating environment of the printer is from 41 degrees F
(5 degrees C) at 15% relative humidity to 95 degrees F (35 degrees C) at
85% relative humidity. The fusing performance of the printer varies
according to the environment.
■ A cold environment affects the warm-up time.
■ The weight (lb./gsm) or composition (such as rag content) of the paper or
transparency affects the fusing of prints.
■ High humidity has an adverse effect on the fusing of prints.
Actions and Questions Yes No

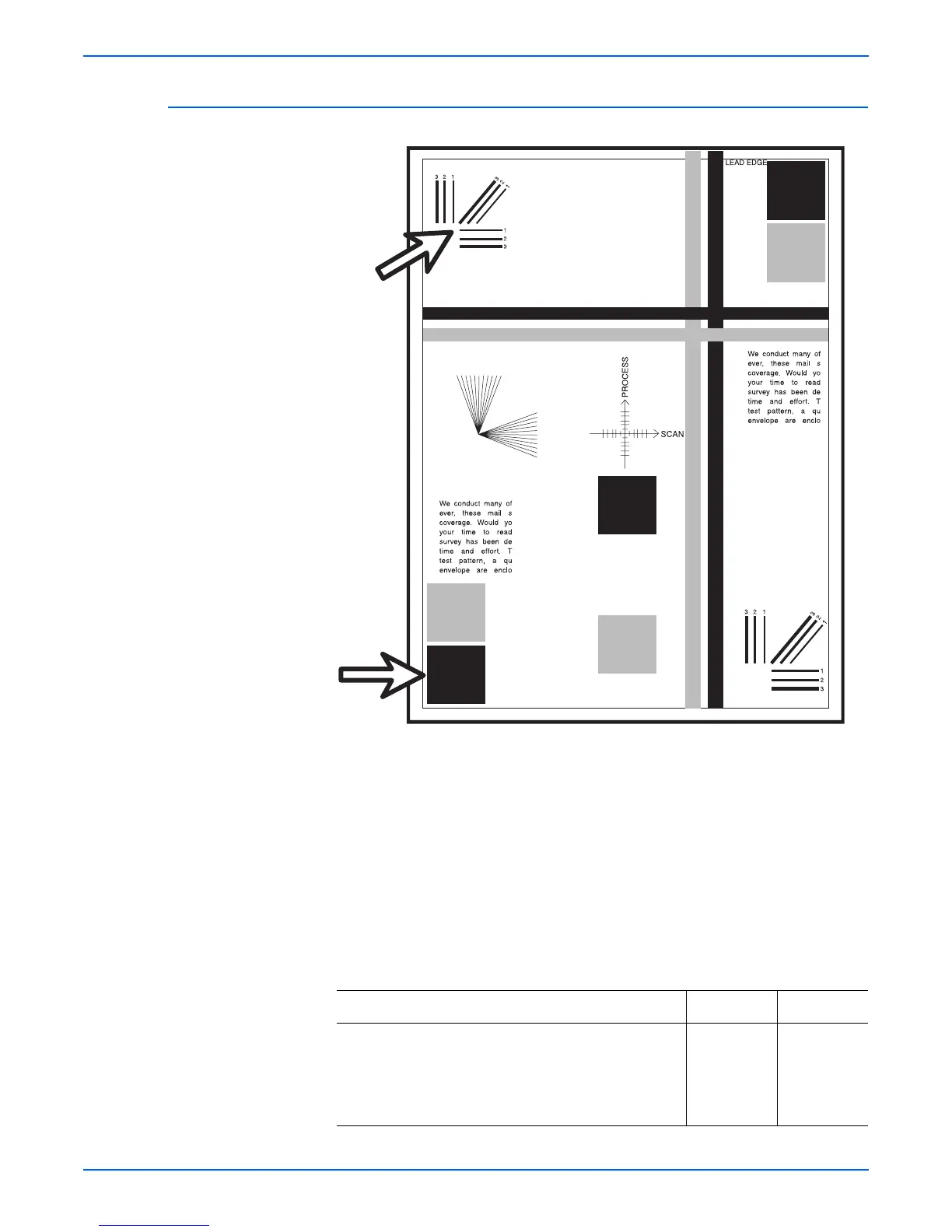

Rub the image three times at the marked check points
with a soft cloth or tissue. the image should not lift off of
the surface of the print.
Does the fusing quality of the image appear
acceptable?
Go to
“Resolution”
on page 5-8.
Go to
“Unfused
Image” on
page 5-31.
4EST0RINT
0HASER3
X3%&
S
