Xerox Phaser 4510 - Left Cover

8-96 Phaser 4500/4510 Service Manual
FRU Disassembly
Left Cover
(PL21.1.25)
Procedure:
1. Remove the three 8 mm tapping screws that attach the left cover.
2. Remove the left cover from the duplex unit housing cover.

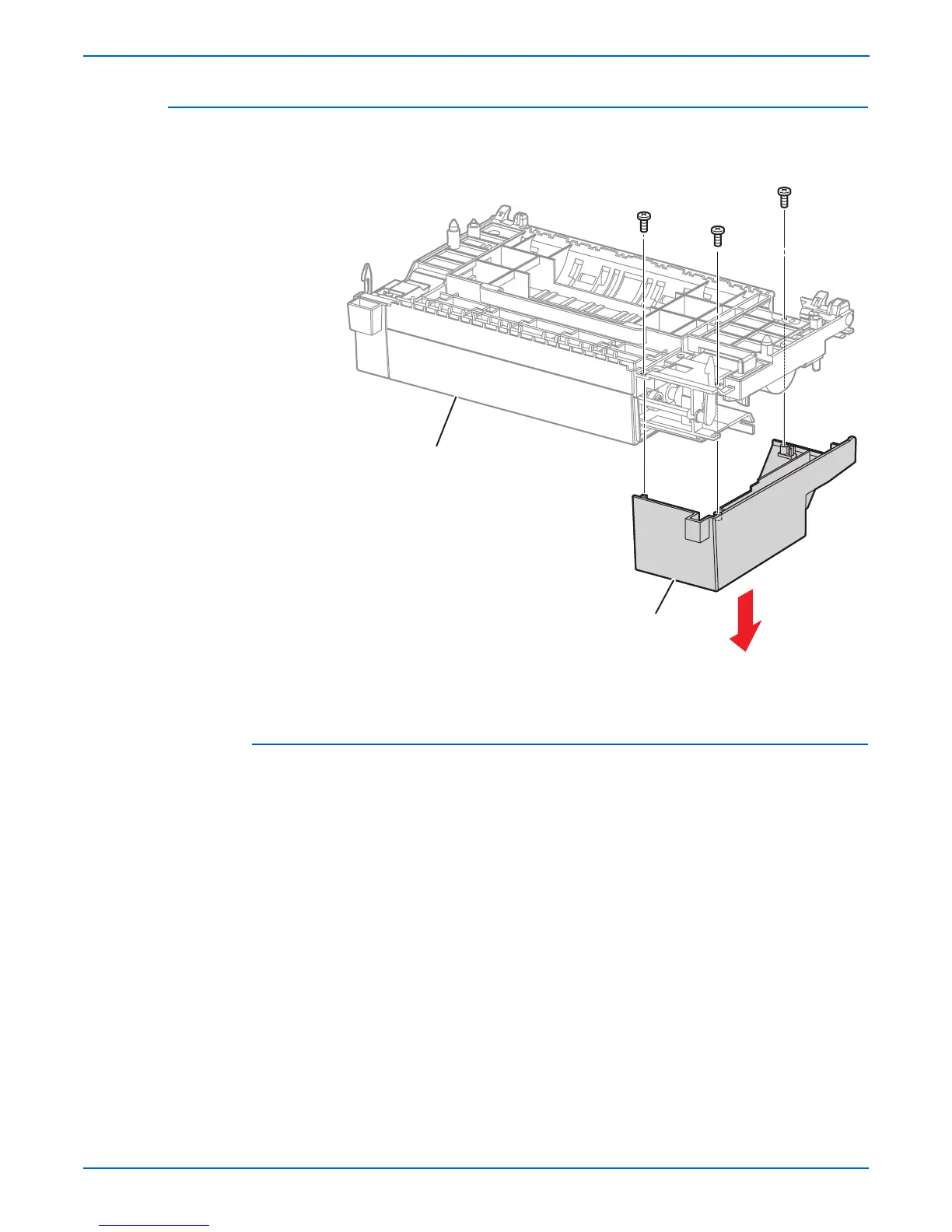

1.Duplex unit housing cover 2.Left cover
s4510-193
1
2
