Xerox Phaser 4510 - Stacker Rear Cover

8-112 Phaser 4500/4510 Service Manual
FRU Disassembly
Stacker Rear Cover
(PL23.1.4)
Procedure:
1. Open the rear cover about 1in. (2cm).
2. While pressing the door either to the left or right, lift the opposite end
upward to clear the boss from the hinge in the stacker cover.

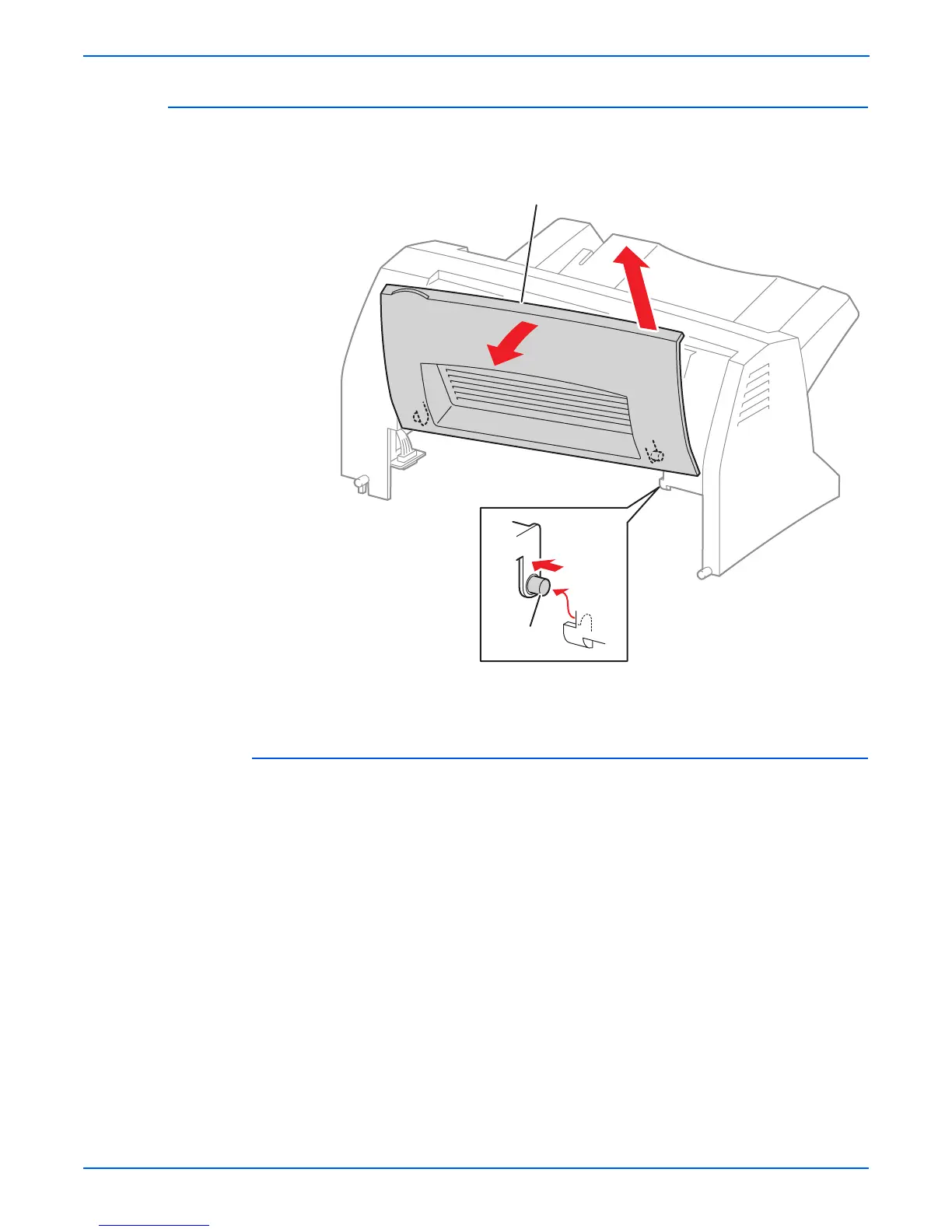

1.Rear Cover 2.Boss
s4500-199
1
2
