Xerox Phaser 4510 - Upper Stacker Roller

8-126 Phaser 4500/4510 Service Manual
FRU Disassembly
Upper Stacker Roller
(PL23.1.36)
Procedure:
1. Remove the stacker front cover (page 8-115).
2. Slide the cam gear off its shaft (page 8-115).

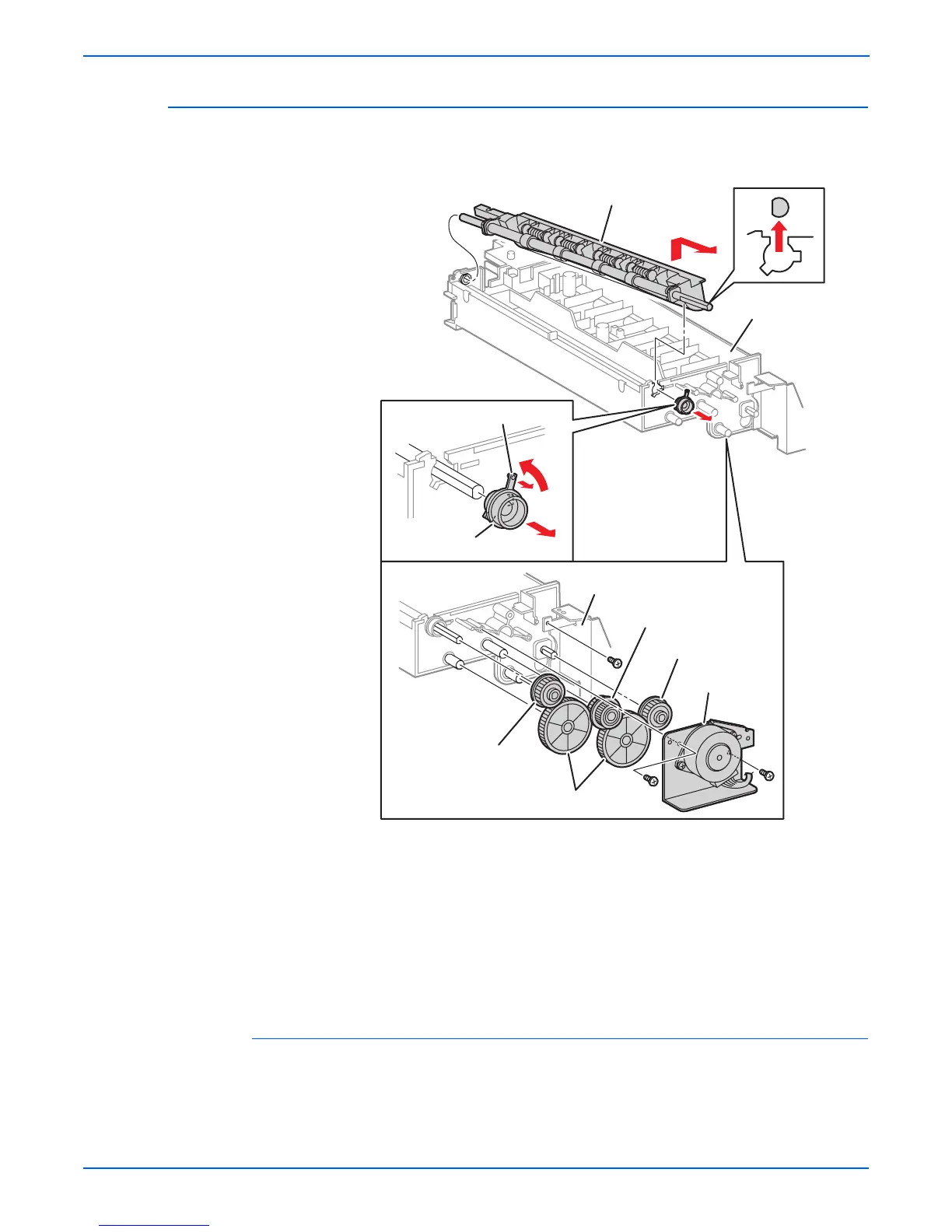

1.Offset chute 6.Gear 19/37
2.Stacker housing 7.Gear 19
3.Offset bearing 8. Left stacker support
4.Hook 9.Stacker motor bracket
5.Gear 45
1
2
s4500-215
3
4
8
6
7
9
5
7
