Phaser 4500/4510 Service Manual 8-33
FRU Disassembly
Left Tray Guide
(PL7.1.7)
Procedure:
1. Remove the print cartridge and paper cassettes.
2. Remove any optional 550-sheet paper feeder(s) (page 8-78).
3. Remove the front cover (page 8-11).
Note
Removing the left tray guide might be easier with the 150- and 550-
sheet feeders removed (page 8-15 and page 8-24).
4. Lay the printer on its left side.
5. Unplug the left tray guide harness at connector P/J1821.
6. Remove the one 8 mm tapping and five 6 mm machine screws that attach
the left tray guide to the frame.
7. Swing the bottom edge of the left tray guide up, then pull the guide out of
the frame as indicated by the arrow.
Replacement Note:
■ Two types of screws are used, and they are not interchangeable. Be sure
to install screws in the proper locations as indicated in the drawing.

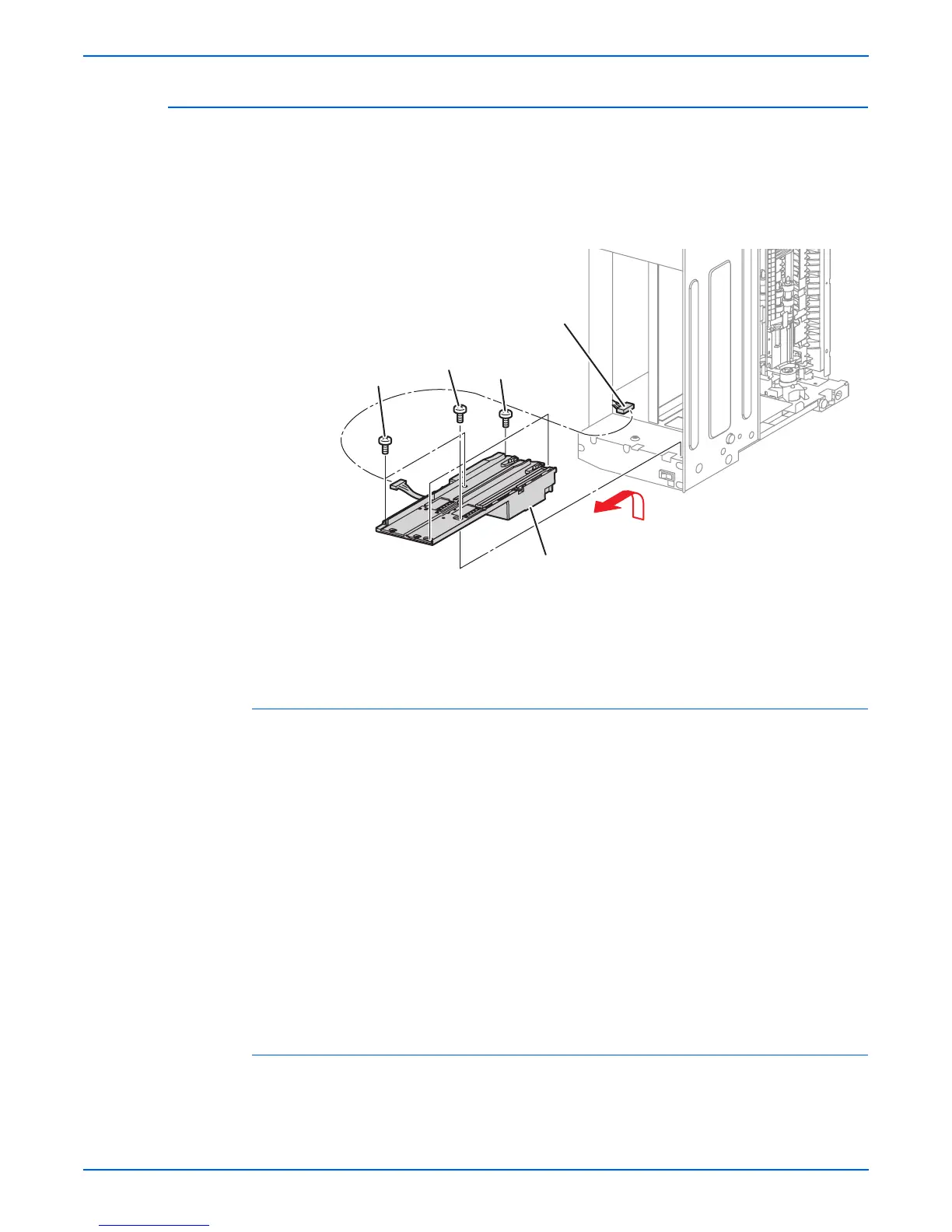

1.Machine screw (6 mm) 3.Tapping screw
2.Machine screw (6 mm) 4.Left tray guide
s4500-109
1
2
3
P/J1821
4
