Xerox Phaser 4510 - Front Cover

Phaser 4500/4510 Service Manual 8-11
FRU Disassembly
Front Cover
(PL1.1.5)
Procedure:
1. Remove the top cover assembly (page 8-9).

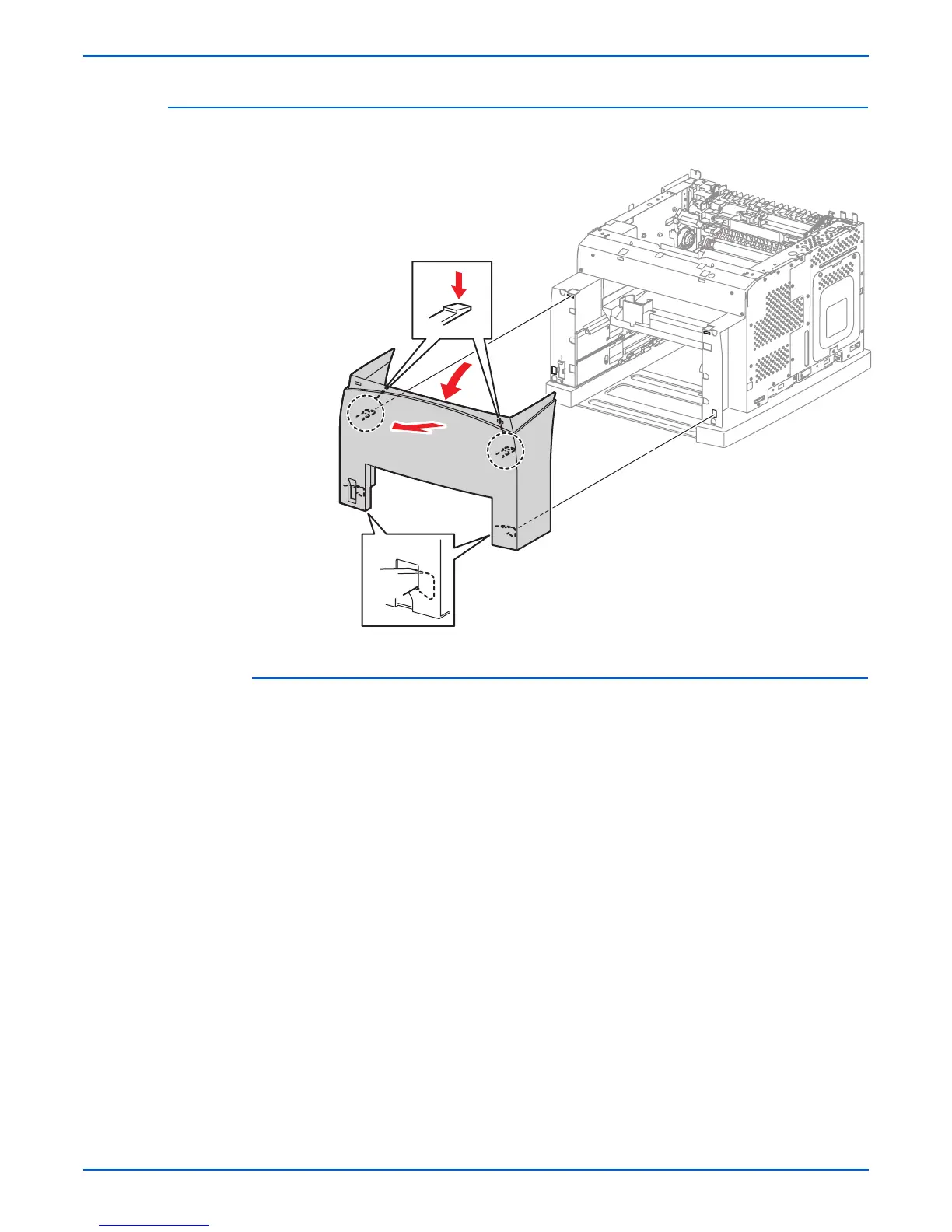

2. Release the two upper hooks that secure the front cover to the printer by
pressing down on the hooks.
3. Tilt the cover out and lift to release the lower hooks from the frame.
s4500-061
