Xerox Phaser 4510 - Nudger Roller, Feed Roller

Phaser 4500/4510 Service Manual 8-25
FRU Disassembly
Nudger Roller, Feed Roller
(PL7.1.19) (PL7.1.29)
Procedure:
1. Remove the print cartridge and leave the cover open so that the removal
can be checked visually.
2. Remove the paper cassettes from tray 1 and tray 2.
3. Lift up the 150-sheet feeder assembly until it locks into the raised detent
position.
4. Reach through the paper cassette openings and release the hook
retaining the nudger roller. Slide the nudger roller off the nudger shaft.
5. Release the hook retaining the feed roller as in step 4. Slide the feed roller
off the feed shaft.

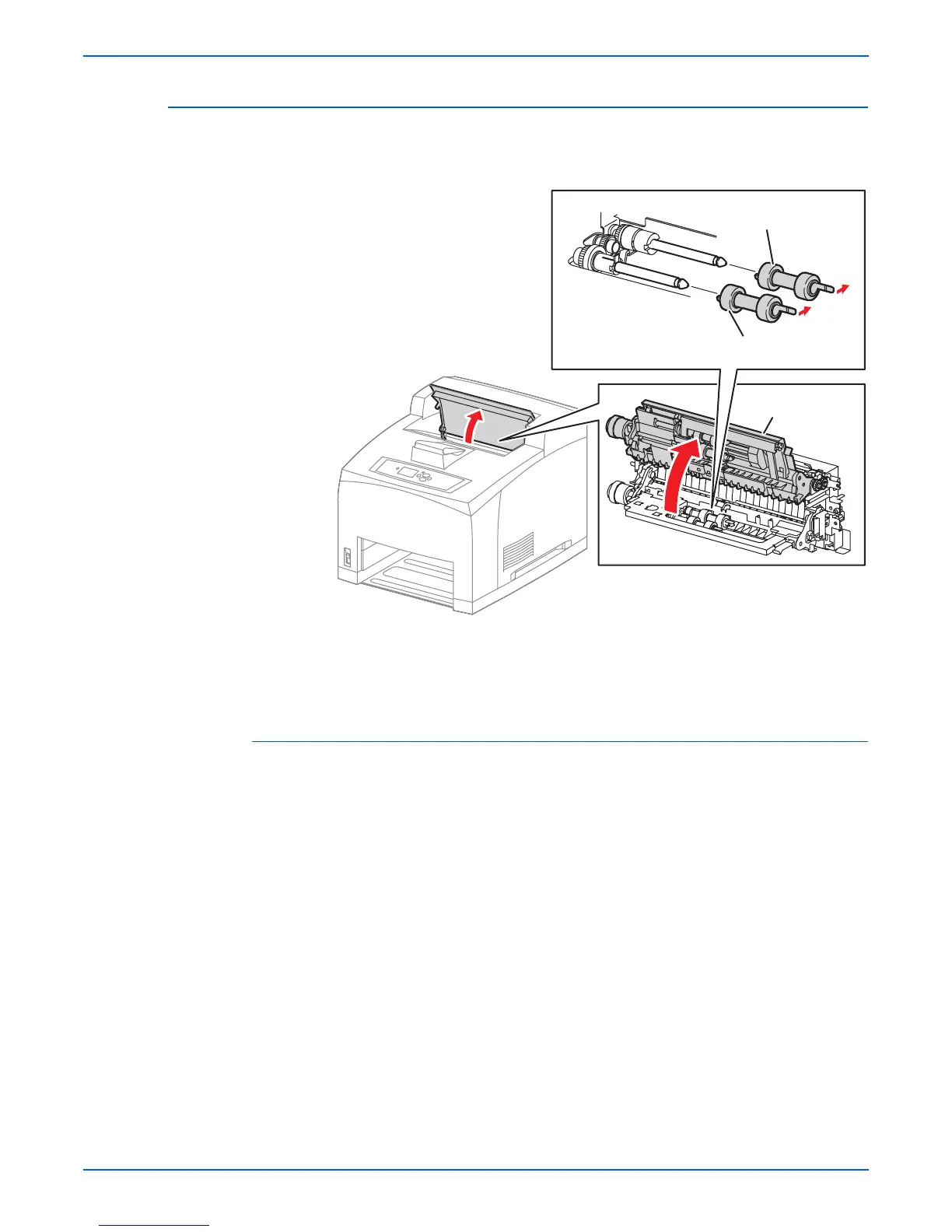

1.Feed roller 3.150-sheet feeder assembly
2.Nudger roller
s4500-103
1
2
3
