Xerox Phaser 4510 - Optional 550-Sheet Feeder; 550-Sheet Feeder General Wiring Diagram

10-32 Phaser 4500/4510 Service Manual
Wiring Diagrams
Optional 550-Sheet Feeder

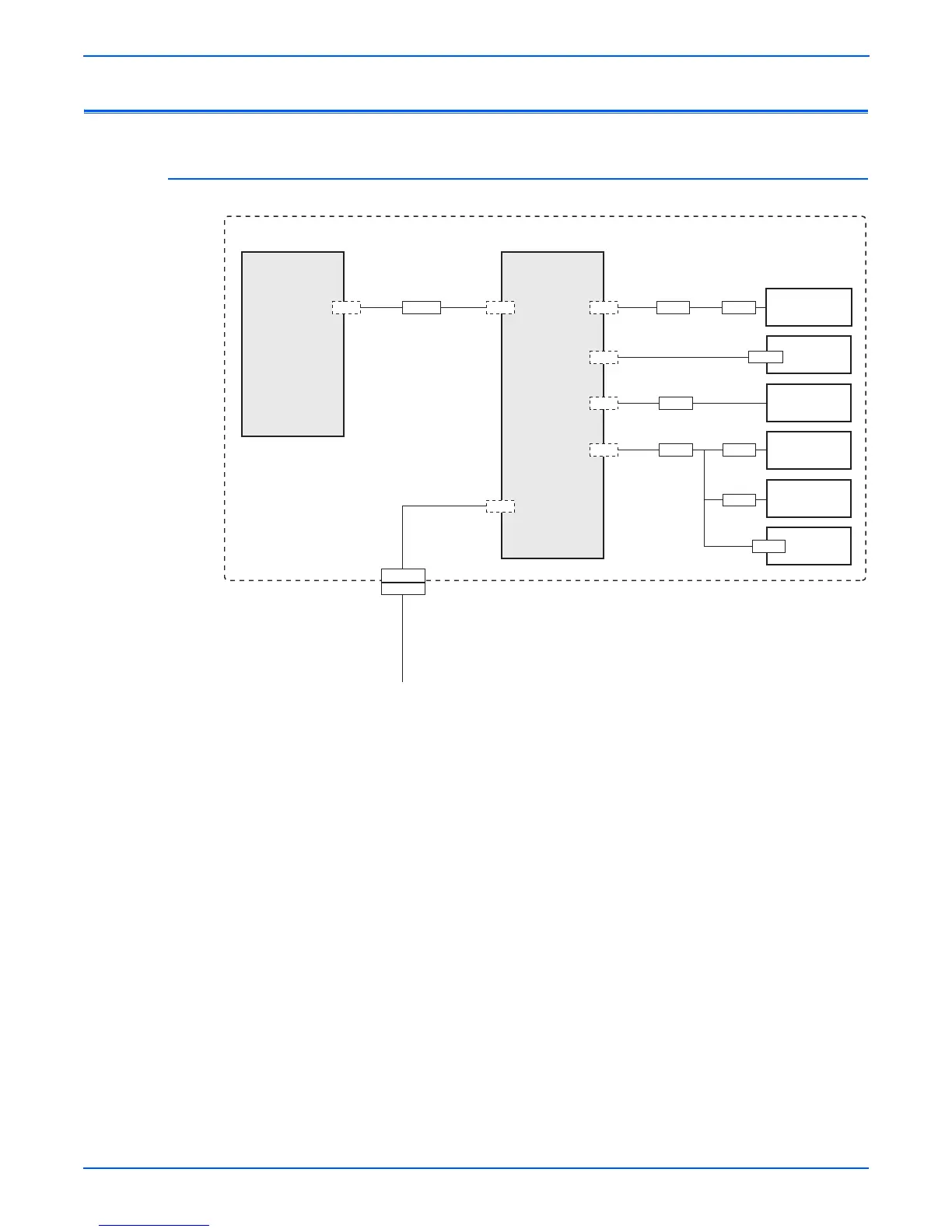

550-Sheet Feeder General Wiring Diagram
N
o
t
e
The printer can have up to two optional 150-sheet paper feeders installed.
Paper Size
Switch Assembly
550-Sheet Feeder
PWBA
HVPS/
Engine Logic
PWBA
Feeder Motor
Feed Clutch
Turn Roller
Clutch
No Paper
Sensor
Low Paper
Sensor
P/J81
P/J80P/J83
P/J84
P/J20 P/J2083
P/J82
P/J85 P/J855 P/J853
P/J854
P/J820
P/J801 P/J802
P/J852
P/J8483
P/J2083
P/J810
s4510-241
