Xerox Phaser 4510 - Rear Cover Switch

Phaser 4500/4510 Service Manual 8-67
FRU Disassembly
Rear Cover Switch
(PL12.1.7)
Procedure:
1. Remove the LVPS shield plate (page 8-60).
2. Disconnect the connector (P/J44) of the rear cover switch from the LVPS.
3. Release the harness assembly of the rear cover switch from the clamps
on the gear assembly housing.
4. Remove the 6 mm screw that attaches the rear cover switch to the frame.
5. Remove the rear cover switch.

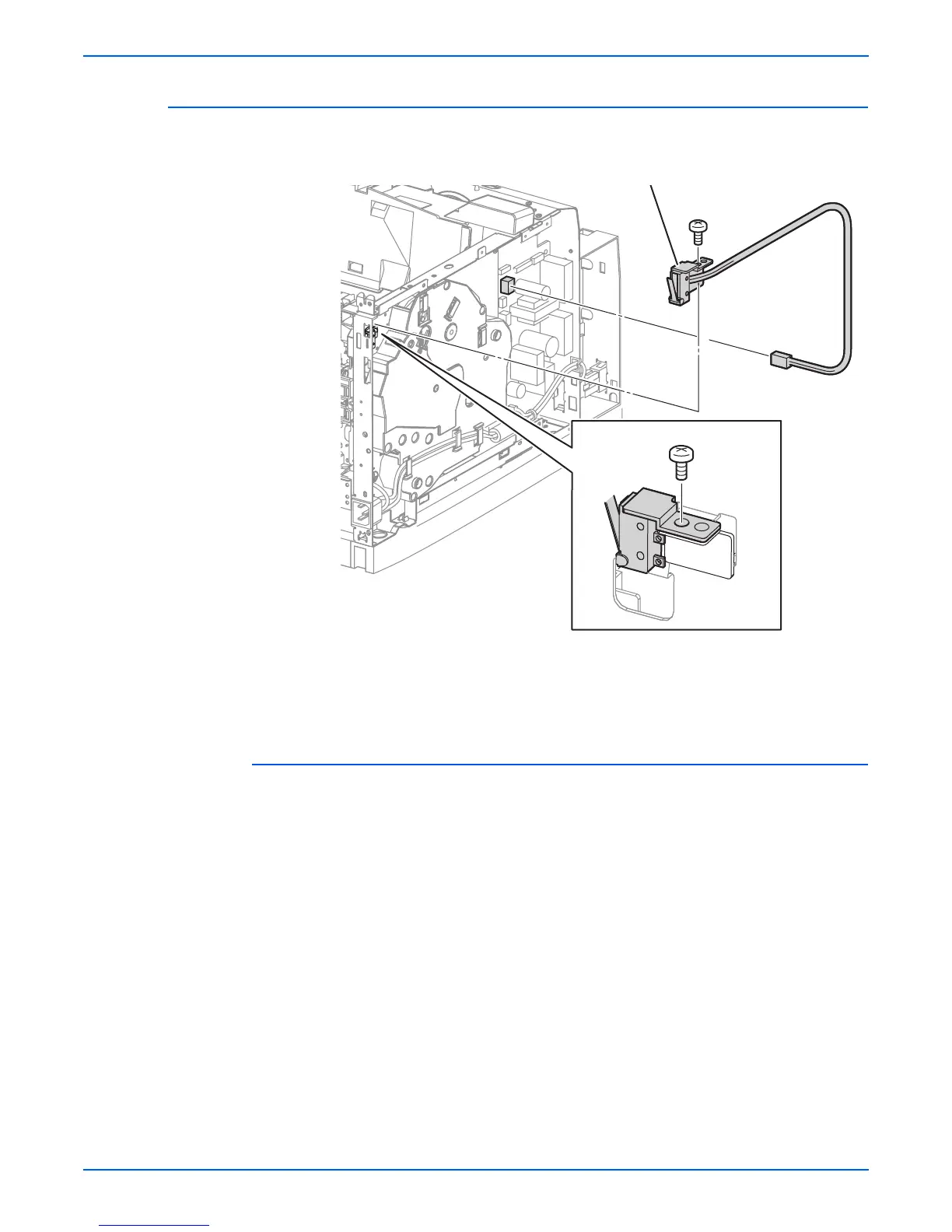

1.Rear cover switch
s4500-146
