Xerox Phaser 4510 - Duplex Unit

10-34 Phaser 4500/4510 Service Manual
Wiring Diagrams
Duplex Unit

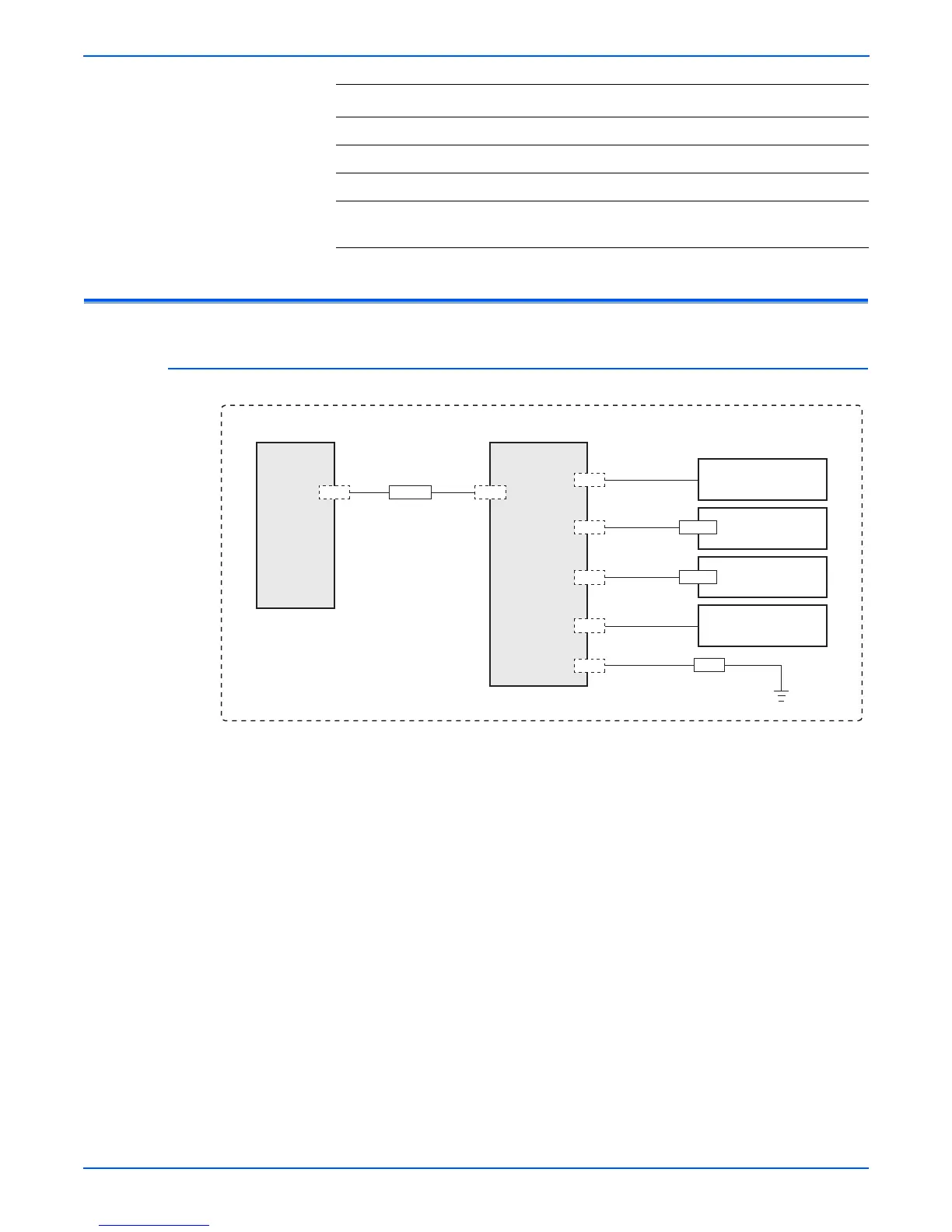

Duplex Unit General Wiring Diagram
/A and /B Excitation signal for feeder motor. Phases /A and /B.
CLUTCH-FEED ON Control signal for feed clutch. Low: ON / High: OFF
CLUTCH-TURN ON Control signal for turn roller clutch. Low: ON / High: OFF
/NO-PAPER FEED SNR ON Signal from the no paper sensor. This signal goes Low
when the flag moves out of the sensor.
Signal line name Description
P/J27
P/J50
P/J51
P/J56
P/J560
P/J54
P/J52
P/J2750
P/J53 P/J530
P/J520
Duplex Unit
Fan
Duplex
PWBA
HVPS/
Engine
Logic
Duplex
Sensor
Duplex
Switch
Duplex
Motor
s4510-243
