Xerox Phaser 4510 - Print Cartridge Right Guide Assembly

Phaser 4500/4510 Service Manual 8-47
FRU Disassembly
Print Cartridge Right Guide Assembly
(PL8.1.25)
Procedure:
1. Remove the fuser assembly (page 8-44).
2. Remove the transfer roller assembly (page 8-45).
3. Remove the front duct (page 8-36).
4. Remove the image processor shield assembly (page 8-70).
5. Remove the HVPS Shield Plate (page 8-72).
6. Unplug the HV connector, J31 from P31 on the HVPS/engine logic board.

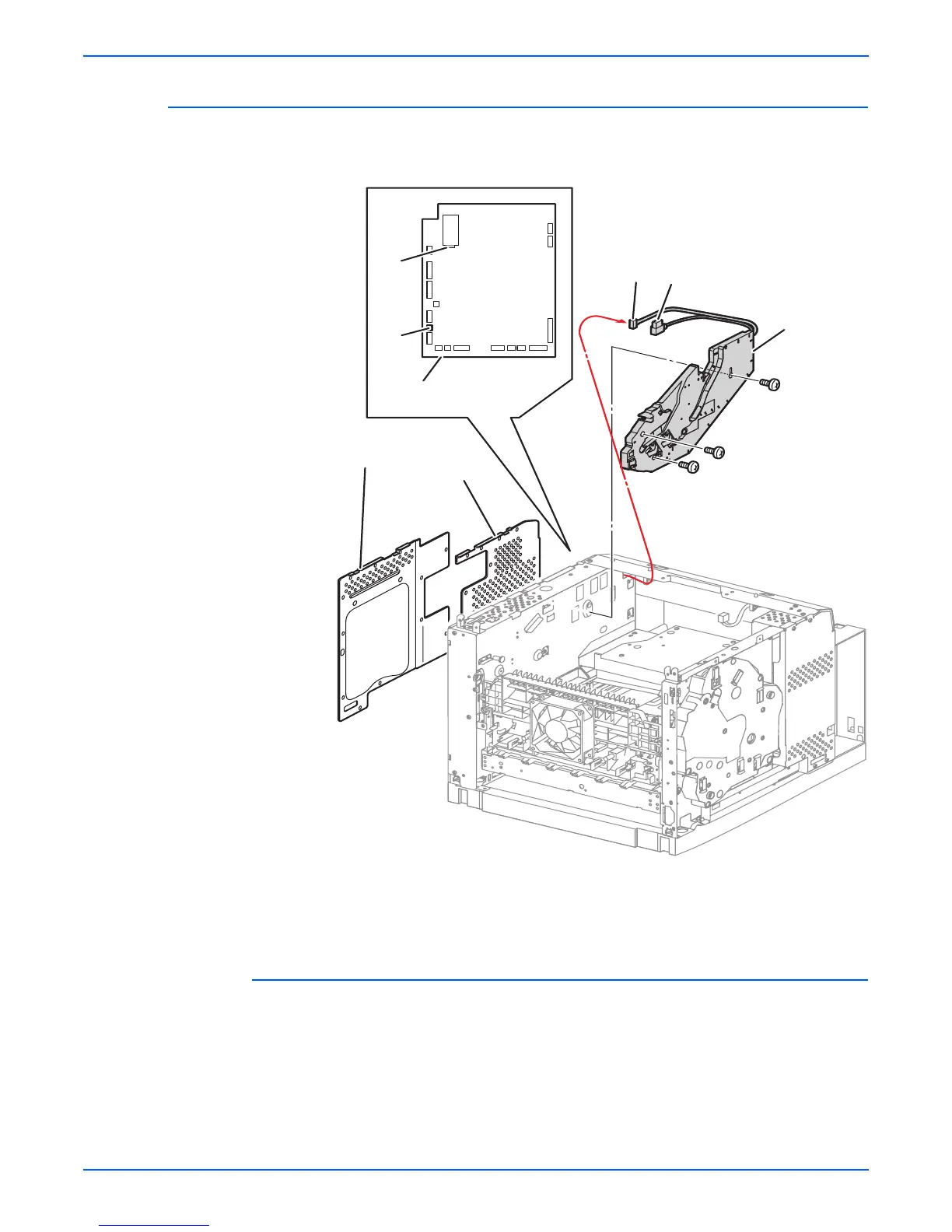

1.Image processor shield assembly 3.HVPS/engine logic board
2.HVPS Shield Plate 4.Print cartridge right guide assembly
1
2
P31
P15
3
J15
J31
4
s4500-124
