8-42 Phaser 4500/4510 Service Manual
FRU Disassembly
Fuser Harness Assembly
(PL8.1.17)
Procedure:
1. Remove the print cartridge left guide (page 8-40).
Caution
The latch posts on the fuser connector are brittle and break very
easily during removal. Use extreme caution in the next step when
squeezing the posts to release them from the frame.
2. Release the latch posts and free the fuser connector (P/J4647) from the
frame.
3. Remove the fuser harness assembly from the printer.

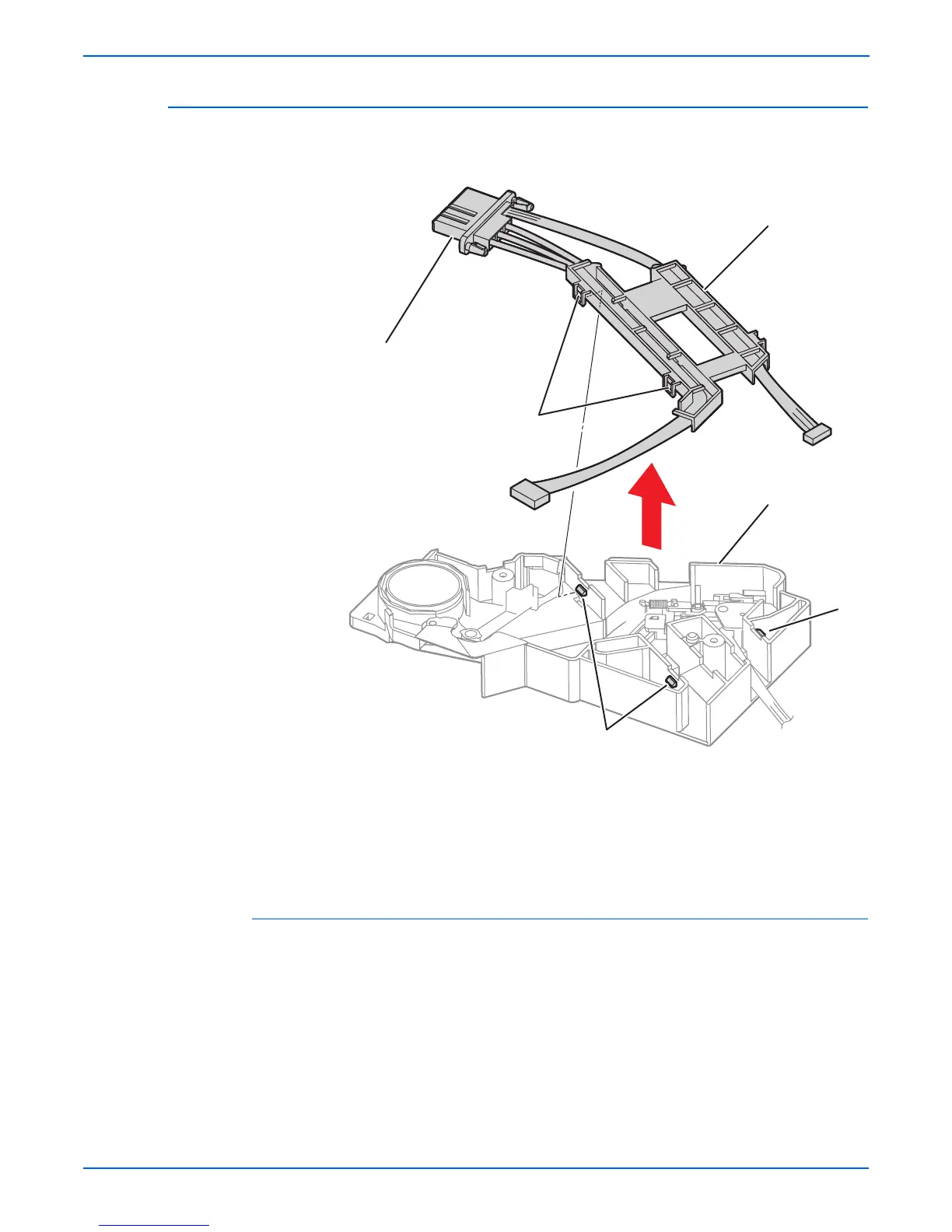

1.Fuser harness assembly 4.Loops
2.Print cartridge guide cover 5.Latches
3. Print cartridge left guide
s4500-118
1
2
4
3
5
5
