Xerox Phaser 4510 - Output Tray Full Sensor

8-52 Phaser 4500/4510 Service Manual
FRU Disassembly
Output Tray Full Sensor
(PL10.1.26)
Procedure:
1. Remove the paper exit assembly (page 8-49).
2. Remove the upper exit chute (page 8-50).
3. Unplug J290 from P290 on the output tray full sensor.
4. Release the hooks of the output tray full sensor, and remove the sensor
from the lower exit chute.

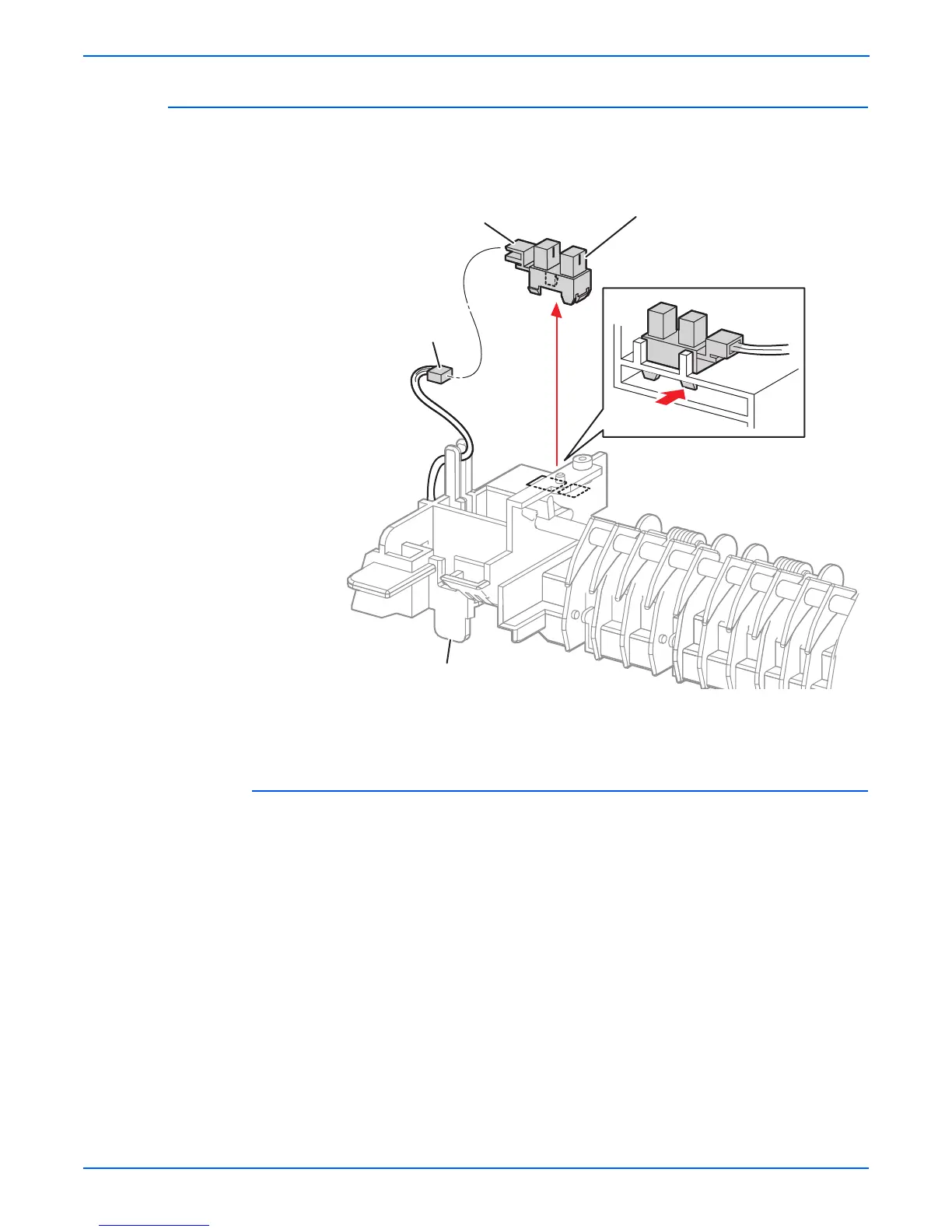

1.Output tray full sensor 2.Lower exit chute
s4500-133
P290
J290
1
2
